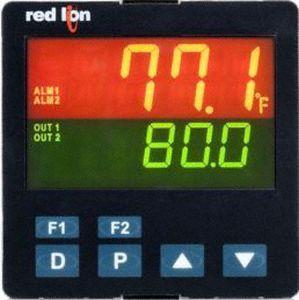

RED LION Temperature Controller: Red Lion, 1/16 DIN Size, B/E/J/K/L/R/RTD/S/T/TXK/U - Temperature Controllers
RED LIONTemperature Controllers

RED LION Temperature Controller: Red Lion, 1/16 DIN Size, B/E/J/K/L/R/RTD/S/T/TXK/U

The RED LION PID Temperature Controller (MPN PXU100B0) is a 1/16 DIN-sized temperature controller with an analog display. It operates in PID control mode and accepts TXK sensor types, with a 24V DC input voltage and…

SKU 3G-OTH-361571

Brand
RED LION
Item
Temperature Controller: Red Lion, 1/16 DIN Size, B/E/J/K/L/R/RTD/S/T/TXK/U
Category
Temperature Controllers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RED LION
Manufacturer Part Number
PXU100B0
Series
Red Lion
Type
B/E/J/K/L/R/RTD/S/T/TXK/U, PID
DC
24V
Alarms
2 Relay, Form A, Form C
Output
Relay
Current
0 to 50 mA
DIN Size
1/16
Sensor Type
TXK
Control Mode
PID
Display Type
Analog
Product Type
PID Temperature Controller
Input Voltage
24V DC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RED LION Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RED LION PID Temperature Controller (MPN PXU100B0) is a 1/16 DIN-sized temperature controller with an analog display. It operates in PID control mode and accepts TXK sensor types, with a 24V DC input voltage and a relay output. The unit features two alarms (Form A and Form C) and supports a current range of 0 to 50 mA.
