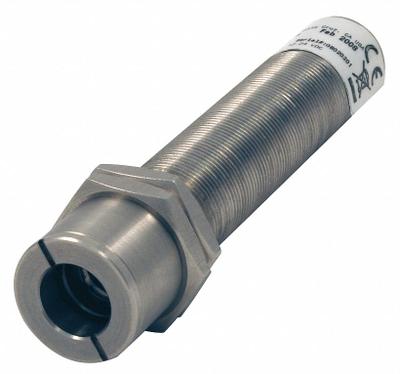

RAYTEK Fixed Mount Infrared Temperature Sensor: CE/EC - Directive 108/EC - Directive 2004 - Infrared Temperature Brackets & Sensors
RAYTEKInfrared Temperature Brackets & Sensors

RAYTEK Fixed Mount Infrared Temperature Sensor: CE/EC - Directive 108/EC - Directive 2004

The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR9) is an infrared temperature bracket and sensor with a 13:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.10. It operates on 24V DC input…

SKU 3G-OTH-180861

Brand
RAYTEK
Item
Fixed Mount Infrared Temperature Sensor: CE/EC - Directive 108/EC - Directive 2004
Category
Infrared Temperature Brackets & Sensors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RAYTEK
Manufacturer Part Number
RAYCMLTK
Type
- Directive 108/EC - Directive 2004, RAYCMLTK
Includes
(2) Mounting Nuts
IP Rating
IP65
Standards
EC - Directive 2004
Thread Size
3/4"-16
Thread Type
UNF
Input Voltage
24V DC
Repeatability
+/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater)
NEMA Enclosure Rating
4
Distance to Spot Ratio
13:1
Emissivity Adjustability
Adjustable
Maximum Emissivity Setting
1.10
Minimum Emissivity Setting
0.10
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RAYTEK Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR9) is an infrared temperature bracket and sensor with a 13:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.10. It operates on 24V DC input voltage, features a 3/4"-16 UNF thread size, and is rated IP65 with NEMA 4 enclosure. The sensor includes (2) mounting nuts and complies with EC Directive 2004 standards, offering repeatability of +/-0.5% of reading +/-1ºC or +/-2ºC (whichever is greater).

Used in

Common applications for RAYTEK
Industrial heating — RAYTEK fixed-mount sensors (e.g., RAYCMLTJ) monitor temperature in furnaces and ovens for process control.
Manufacturing — RAYTEK CI Series sensors with air purge collars measure temperature on moving conveyor belts in dusty environments.
HVAC — RAYTEK sensors with 13:1 distance-to-spot ratio (e.g., RAYCMLTV) check duct temperatures from a distance.
Food processing — RAYTEK right-angle mirror (CM Series) enables temperature measurement in tight spaces on packaging lines.
Plastic molding — RAYTEK fixed-mount sensors (e.g., RAYCI1B10L) monitor mold temperatures without contact.
Metalworking — RAYTEK sensors with adjustable emissivity measure surface temperatures of hot metals during forging or rolling.
