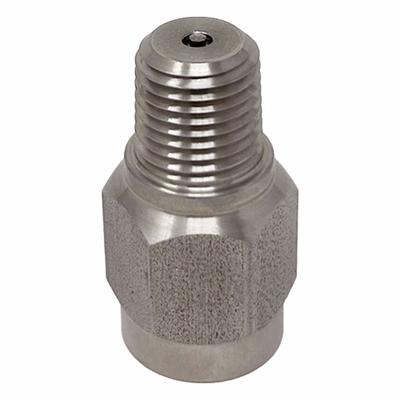

RAY Pressure Gauge Snubber: Monel, Piston, Monel NPT, 5,000 psi Max. Pressure - Piston-Type Snubbers for Air, Water & Steam
RAYPiston-Type Snubbers for Air, Water & Steam

RAY Pressure Gauge Snubber: Monel, Piston, Monel NPT, 5,000 psi Max. Pressure

The RAY Pressure Gauge Snubber (MPN 022M) is a piston-type snubber constructed from Monel with NPT connections, designed for use with water. It features a maximum pressure rating of 5,000 psi and includes three…

SKU 3G-OTH-174710

Brand
RAY
Item
Pressure Gauge Snubber: Monel, Piston, Monel NPT, 5,000 psi Max. Pressure
Category
Piston-Type Snubbers for Air, Water & Steam
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RAY
Manufacturer Part Number
022M
Type
Piston, Monel NPT
Material
Monel
Pistons
3
Snubber Type
Piston
Max. Pressure
5,000 psi
Connection Type
NPT
Compatible Liquids and Gases
Water
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RAY Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RAY Pressure Gauge Snubber (MPN 022M) is a piston-type snubber constructed from Monel with NPT connections, designed for use with water. It features a maximum pressure rating of 5,000 psi and includes three pistons to dampen pressure fluctuations and protect gauges.

Used in

Common applications for RAY
Hydraulic systems — RAY piston-type snubbers (e.g., MPN 050B) dampen pressure spikes in oil-based hydraulic circuits.
Steam lines — RAY stainless steel filter-type snubbers (e.g., MPN 722SE) protect gauges from steam pressure surges.
Pneumatic controls — RAY brass piston-type snubbers (e.g., MPN 047B) smooth air pressure fluctuations in pneumatic systems.
Water treatment plants — RAY brass filter-type snubbers (e.g., MPN 747BG) reduce water hammer effects on pressure gauges.
Oil and gas pipelines — RAY stainless steel piston-type snubbers (e.g., MPN 078S) handle gas pressure pulsations in pipeline monitoring.
