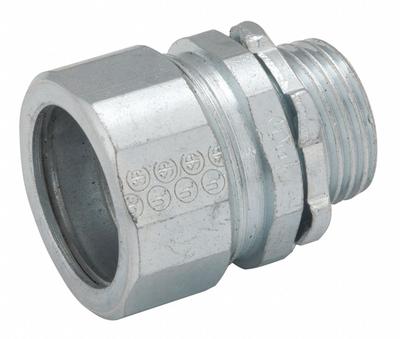

RACO Rigid Compression Connector: Iron/Steel, 1 1/2 in Trade Size - Connectors for Heavy-Wall RMC & Medium-Wall IMC Metal Conduit
RACOConnectors for Heavy-Wall RMC & Medium-Wall IMC Metal Conduit

RACO Rigid Compression Connector: Iron/Steel, 1 1/2 in Trade Size

The RACO Rigid Compression Connector (SKU 43GX70, MPN 1806) is a galvanized iron/steel connector for heavy-wall RMC and medium-wall IMC metal conduit. It features a 1-1/2 in trade size, 2-1/8 in overall length, male…

SKU 3G-OTH-05517

Brand
RACO
Item
Rigid Compression Connector: Iron/Steel, 1 1/2 in Trade Size
Category
Connectors for Heavy-Wall RMC & Medium-Wall IMC Metal Conduit
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RACO
Manufacturer Part Number
1806
Overall Lg
2 1/8 in
Finish
Galvanized
UNSPSC
39121311
Insulated
No
Standards
CSA
Trade Size
1-1/2 in
Thread Size
1-1/2"-11-1/2
Thread Type
NPS
For Use With
Boxes
Overall Width
2-3/8 in
Thread Gender
Male
Overall Length
2-1/8 in
For Conduit Type
IMC
Country of Origin
India (subject to change)
Compatible Conduit Type
RMC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RACO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RACO Rigid Compression Connector (SKU 43GX70, MPN 1806) is a galvanized iron/steel connector for heavy-wall RMC and medium-wall IMC metal conduit. It features a 1-1/2 in trade size, 2-1/8 in overall length, male NPS threads (1-1/2"-11-1/2), and is designed for use with boxes. This CSA-listed, non-insulated connector is manufactured in India.

Used in

Common applications for RACO
Industrial power distribution — RACO grounding bushings (MPN 1294) for bonding conduit in panelboards and switchgear.
Commercial conduit transitions — RACO reducing bushings (MPN 1155) for downsizing RMC or IMC runs in electrical rooms.
Life safety alarm circuits — RACO steel electrical boxes (MPN 911-9) for housing fire alarm and emergency lighting connections.
Outdoor service entrances — RACO rigid/IMC hubs (MPN 1716) for weatherproof conduit terminations at meter sockets.
Conduit support in cable trays — RACO surface mount clamps (MPN 1304) for securing IMC or RMC to structural steel.
Multi-gang junction boxes — RACO 4-inch square boxes (MPN 189H) with covers for splicing circuits in commercial ceilings.

RACO Products

3G Electric supplies RACO connectors for heavy-wall rmc & medium-wall imc metal conduit. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
