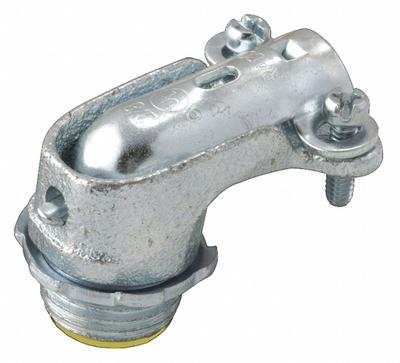

RACO Connector - Clamp Style, 90 Degrees: Iron, 1 1/4 in Trade Size, 1 1/4 in MNPT - 90° Connectors - Clamp Style
RACO90° Connectors - Clamp Style

RACO Connector - Clamp Style, 90 Degrees: Iron, 1 1/4 in Trade Size, 1 1/4 in MNPT

The RACO 3205 is a 90° connector, clamp style, made of iron with a gray finish. It features a 1-1/4"-11-1/2 thread size, a 1-1/4 in MNPT box connection, and a reduction size of 1-1/4 in to 1/2 in. This UL Listed…

SKU 3G-OTH-05580

Brand
RACO
Item
Connector - Clamp Style, 90 Degrees: Iron, 1 1/4 in Trade Size, 1 1/4 in MNPT
Category
90° Connectors - Clamp Style
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

RACO
Manufacturer Part Number
3205
Type
- Clamp Style, Insulated
Material
Iron
MNPT
1 1/4 in
Color
Gray
Insulated
Yes
Standards
UL Listed
Trade Size
1 1/4 in
Thread Size
1-1/4"-11-1/2
For Use With
Flexible Conduit
Degrees: Iron
90
Box Connection
1-1/4 in MNPT
Reduction Size
1-1/4 in to 1/2 in
Connection Type
Squeeze
Connector Style
90°
Insulated - Broad
Insulated
Cable Clamping Method
Squeeze Clamp
Connection Orientation
90°
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

RACO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The RACO 3205 is a 90° connector, clamp style, made of iron with a gray finish. It features a 1-1/4"-11-1/2 thread size, a 1-1/4 in MNPT box connection, and a reduction size of 1-1/4 in to 1/2 in. This UL Listed, insulated squeeze-type connector is designed for use with flexible conduit.

Used in

Common applications for RACO
Industrial power distribution — RACO grounding bushings (MPN 1294) for bonding conduit in panelboards and switchgear.
Commercial conduit transitions — RACO reducing bushings (MPN 1155) for downsizing RMC or IMC runs in electrical rooms.
Life safety alarm circuits — RACO steel electrical boxes (MPN 911-9) for housing fire alarm and emergency lighting connections.
Outdoor service entrances — RACO rigid/IMC hubs (MPN 1716) for weatherproof conduit terminations at meter sockets.
Conduit support in cable trays — RACO surface mount clamps (MPN 1304) for securing IMC or RMC to structural steel.
Multi-gang junction boxes — RACO 4-inch square boxes (MPN 189H) with covers for splicing circuits in commercial ceilings.

RACO Products

3G Electric supplies RACO 90° connectors - clamp style. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
