VHT71150
TECHNICAL INFORMATION
Flow (L/min) 150
Flow (US Gpm) 39,6
Rotation regime (rpm) 800
Pressure (MPa) 11
Pressure (bar) 110
Pressure (psi) 1595
Power (hp) 42,8
Power (kW) 31,5
Overall dimensions L x l x h (mm) 526x369x253
Weight (kg) 68
VHT71150 3/21/2026 Page 1 - 10
Copyright INTERPUMP GROUP S.P.A
VHT71150
Documents
Male shaft (key) - GAS
Male shaft (key) - NPT
VHT71150 3/21/2026 Page 2 - 10
Copyright INTERPUMP GROUP S.P.A

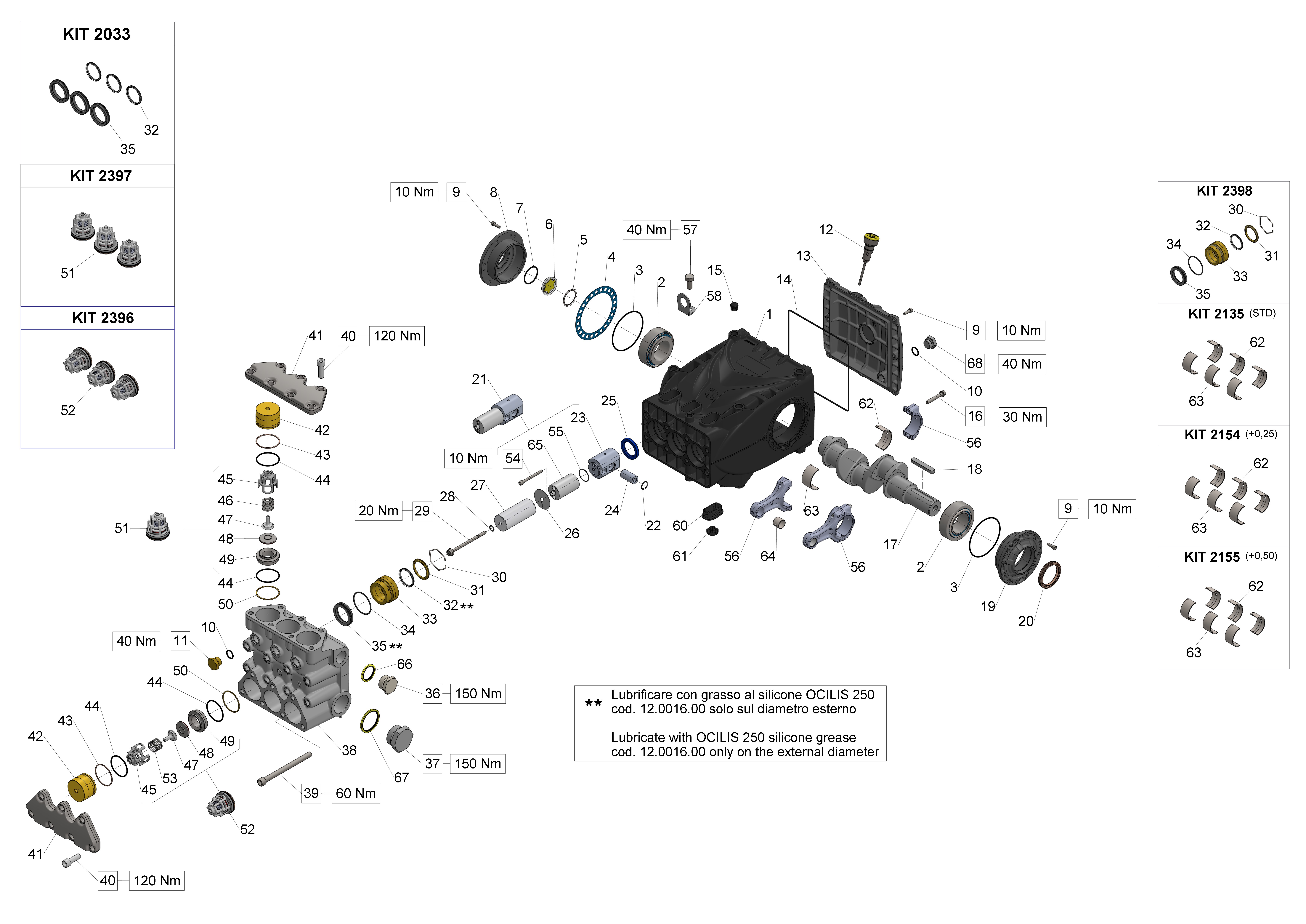

Illustration Male shaft (key) - GAS
VHT71150 3/21/2026 Page 3 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
KIT2398 34239801 1
KIT2397 34239701 1
KIT2396 34239601 1
KIT2155 34215501 1
KIT2154 34215401 1
KIT2135 34213501 1
KIT2033 34203301 1
68 98218700 1
67 93199000 1
66 93198500 1
65 71050866 3
64 90911000 3
63 90924000 3
63 90922200 UPPER HALF CONROD BUSHING 3
+0.5 (BIG END) S.70
63 90922100 UPPER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
62 90924300 3
62 90922500 LOWER HALF CONROD BUSHING 3
+0.50 (BIG END) S.70
62 90922400 LOWER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
61 71225951 PLUG CAP 3
60 71225851 6
58 71223074 STAFFA DI SOLLEVAMENTO 1
57 99426600 VITE TE M12X25-UNI5739 ZINC. 1
56 71030701 3
55 90352800 O-RING D. 29.00x1.50 NBR 70SH 3
54 99199400 6
53 94754000 SPRING D.24.7X27 3
52 36726601 3
51 36726701 3
50 90524000 6
49 36204156 6
48 36208502 SPHERICAL VALVE COMPLETE 6
47 36208651 INNER VALVE GUIDE 6
46 94755000 3
45 36204505 VALVE CAGE SS (71 SERIES) 6
VHT71150 3/21/2026 Page 4 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
44 90388950 12
43 90525000 6
42 71211170 6
41 71210136 2
40 99429500 SCREW M12X35 UNI5931 12.31 14
DACR.
39 99448000 8
38 71124541 1
37 98244000 1
36 98232600 1
35 90246000 3
34 90389150 3
33 71216670 3
32 90245000 3
31 71218970 3
30 90079700 3
29 71219566 3
28 90367100 3
27 71040509 3
26 96714000 3
25 90167800 3
24 97743000 3
23 71050715 3
22 90060600 1
21 71606601 3
20 90170000 1
19 71150022 1
18 91500000 1
17 71020035 1
16 99313800 6
15 98206000 4
14 90400000 1
13 71160022 1
12 98212000 1
11 98218300 3
10 90384100 O-RING 17,12X2,62 (3068) 6
9 99186700 SCREW M 6x18 UNI 5931 20
8 71150122 1
7 90387700 O-RING 39,34X2,62 (3156) 1
6 70211801 OIL SIGHT GLASS 1
5 90075600 CIRCLIP D.45 (ZJ45) 1
VHT71150 3/21/2026 Page 5 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
4 70220381 SHIM 0.25 MM. 1
4 70220081 SHIM 0.1 MM. 1
3 90391800 2
2 91859000 2
1 71010022 1
VHT71150 3/21/2026 Page 6 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
VHT71150 3/21/2026 Page 7 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
KIT2398 34239801 1
KIT2397 34239701 1
KIT2396 34239601 1
KIT2155 34215501 1
KIT2154 34215401 1
KIT2135 34213501 1
KIT2033 34203301 1
68 98218700 1
67 93199000 1
66 93198500 1
65 71050866 3
64 90911000 3
63 90924000 3
63 90922200 UPPER HALF CONROD BUSHING 3
+0.5 (BIG END) S.70
63 90922100 UPPER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
62 90924300 3
62 90922500 LOWER HALF CONROD BUSHING 3
+0.50 (BIG END) S.70
62 90922400 LOWER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
61 71225951 PLUG CAP 3
60 71225851 6
58 71223074 STAFFA DI SOLLEVAMENTO 1
57 99426600 VITE TE M12X25-UNI5739 ZINC. 1
56 71030701 3
55 90352800 O-RING D. 29.00x1.50 NBR 70SH 3
54 99199400 6
53 94754000 SPRING D.24.7X27 3
52 36726601 3
51 36726701 3
50 90524000 6
49 36204156 6
48 36208502 SPHERICAL VALVE COMPLETE 6
47 36208651 INNER VALVE GUIDE 6
46 94755000 3
45 36204505 VALVE CAGE SS (71 SERIES) 6
VHT71150 3/21/2026 Page 8 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
44 90388950 12
43 90525000 6
42 71211170 6
41 71210136 2
40 99429500 SCREW M12X35 UNI5931 12.31 14
DACR.
39 99448000 8
38 71124641 1
37 98244000 1
36 98232600 1
35 90246000 3
34 90389150 3
33 71216670 3
32 90245000 3
31 71218970 3
30 90079700 3
29 71219566 3
28 90367100 3
27 71040509 3
26 96714000 3
25 90167800 3
24 97743000 3
23 71050715 3
22 90060600 1
21 71606601 3
20 90170000 1
19 71150022 1
18 91500000 1
17 71020035 1
16 99313800 6
15 98206000 4
14 90400000 1
13 71160022 1
12 98212000 1
11 98218300 3
10 90384100 O-RING 17,12X2,62 (3068) 6
9 99186700 SCREW M 6x18 UNI 5931 20
8 71150122 1
7 90387700 O-RING 39,34X2,62 (3156) 1
6 70211801 OIL SIGHT GLASS 1
5 90075600 CIRCLIP D.45 (ZJ45) 1
VHT71150 3/21/2026 Page 9 - 10
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
4 70220381 SHIM 0.25 MM. 1
4 70220081 SHIM 0.1 MM. 1
3 90391800 2
2 91859000 2
1 71010022 1
