Datasheet Content
VHT7095
TECHNICAL INFORMATION
Flow (L/min) 102 / 95 / 85
Flow (US Gpm) 27 / 25 / 22,5
Rotation regime (rpm) 1450 / 1350 / 1200
Pressure (MPa) 10
Pressure (bar) 100
Pressure (psi) 1450
Power (hp) 26,5 / 24,7 / 22,1
Power (kW) 19,5 / 18,2 / 16,3
Overall dimensions L x l x h (mm) 388x340,5x195
Weight (kg) 37
VHT7095 3/21/2026 Page 1 - 22
Copyright INTERPUMP GROUP S.P.A
VHT7095
Documents
Male shaft (key) - GAS
Male shaft (key) - NPT
Male shaft (key) - GAS + flange A - GAS
Hollow shaft (spline) + SAE B flange - GAS
Hollow shaft (spline) + SAE B flange - NPT
VHT7095 3/21/2026 Page 2 - 22
Copyright INTERPUMP GROUP S.P.A

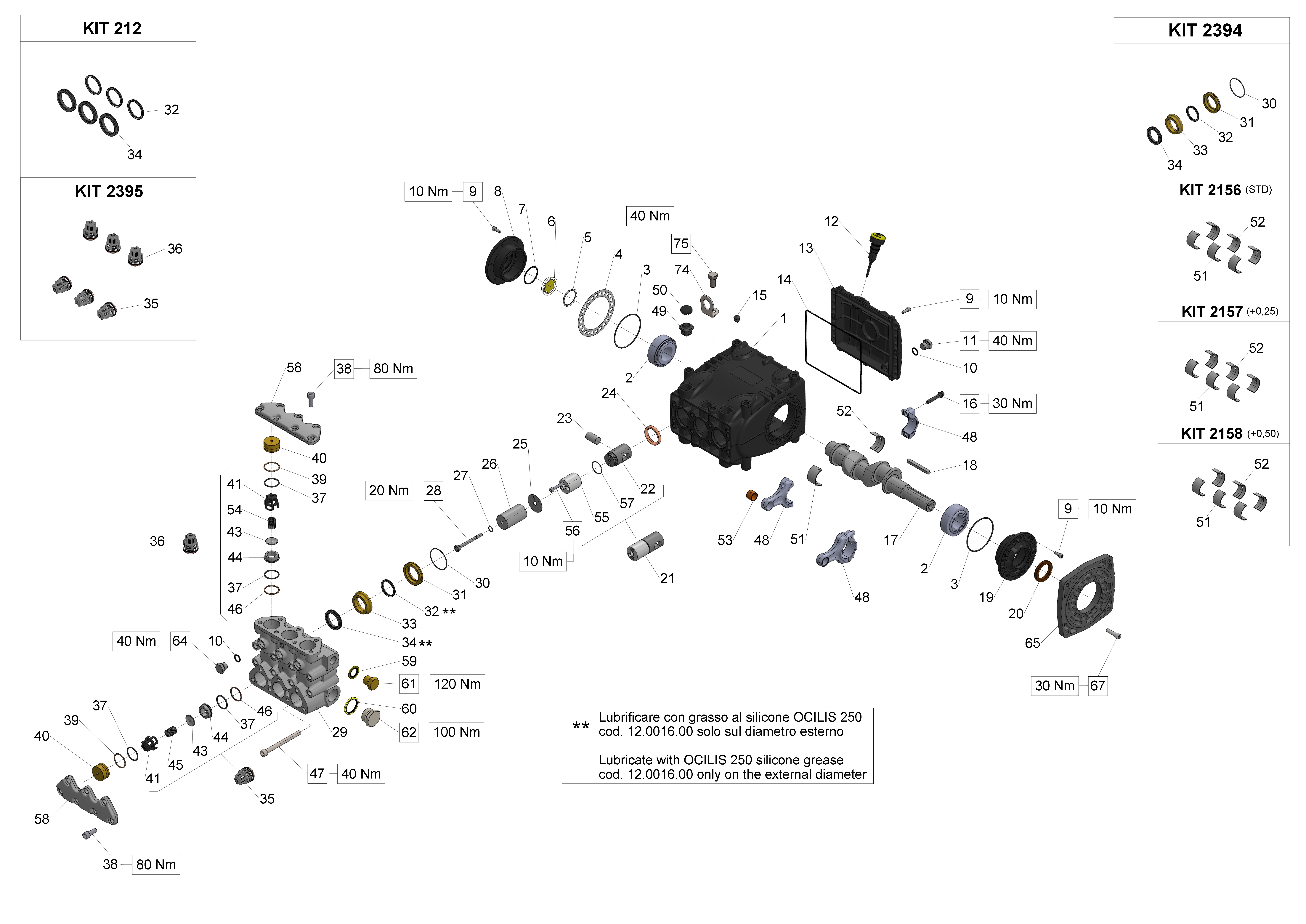

Illustration Male shaft (key) - GAS
VHT7095 3/21/2026 Page 3 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
KIT2395 34239501 1
KIT2394 34239401 1
KIT2158 34215801 KIT 2158*CONROD BUSHINGS 1
+0,50
KIT2157 34215701 KIT 2157*CONROD BUSHINGS 1
+0,25
KIT2156 34215601 KIT 2156*CONROD BUSHING 1
KIT212 34021201 1
75 99426600 VITE TE M12X25-UNI5739 ZINC. 1
74 71223074 STAFFA DI SOLLEVAMENTO 1
64 98209900 PLUG G. 3/8X13 NICKEL 3
62 98232600 1
61 98218200 1
60 93198500 1
59 93197200 1
58 70222341 2
57 90352800 O-RING D. 29.00x1.50 NBR 70SH 3
56 99192500 SCREW M06X35 5931 A2-70 6
55 70050266 PISTON GUIDE ROD 3
54 94745100 SPRING Dm. 16.0X37.0 INOX 3
53 90910000 CONROD BUSHING (SMALL END) 3
S.70
52 90922300 LOWER HALF CONROD BUSHING 3
(BIG END) S.70
52 90922500 LOWER HALF CONROD BUSHING 3
+0.50 (BIG END) S.70
52 90922400 LOWER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
51 90922000 UPPER HALF CONROD BUSHING 3
(BIG END) S.70
51 90922200 UPPER HALF CONROD BUSHING 3
+0.5 (BIG END) S.70
51 90922100 UPPER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
50 71225951 PLUG CAP 3
49 70222551 CRANKCASE PLUG 6
48 70030501 CONNECTING ROD COMPLETE 3
47 99381600 SCREW M10X110 UNI5931 8.8 8
46 90517800 6
45 94745000 SPRING D. 16X27,5 3
VHT7095 3/21/2026 Page 4 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
44 36204866 VALVE SEAT (70HT) 6
43 36201076 VALVE PLATE 6
41 36204705 VALVE CAGE S.S. (70 SERIES) 6
40 70211670 6
39 90518000 ANTI-EXTR.RING 6
D.32.4X36.5X1.5
38 99367100 14
37 90386550 12
36 36728901 3
35 36726501 3
34 90241000 3
33 70216570 3
32 90240000 3
31 70080570 3
30 90362650 3
29 70124141 1
28 70224136 PISTON BOLT 3
27 90358450 3
26 70040509 PISTON D.36X63 3
25 96709900 WASHER D.10X45 3
24 90167700 OIL SEAL D.36X47X7 3
23 97742000 GUDGEON PIN D.18X36 3
22 70050115 PISTON GUIDE T.N. 3
21 70606801 PISTON GUIDE ASSY 3
20 90166800 OIL SEAL D.35X52X7 1
19 70150022 BEARING COVER (PTO SIDE) 1
18 91490000 KEY 8h9X7X70 UNI 6604/A 1
17 70020035 1
16 99312300 CONN.ROD BOLT M8X1X42 6
15 98200500 PLUG D. 15 5
14 90394200 OR D.190.17X2.62 NBR 70SH 1
13 70160022 1
12 98211500 OIL DIPSTICK D.21,5X70 1
11 98210050 PLUG G3/8x13 TE22 1
10 90383300 O-RING 13,95X2,62 (3056) 4
9 99185400 SCREW M6X16 UNI 5931 8.8 Z. 20
8 70150122 BEARING COVER (OIL GLASS 1
SIDE)
7 90387700 O-RING 39,34X2,62 (3156) 1
6 70211801 OIL SIGHT GLASS 1
VHT7095 3/21/2026 Page 5 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS
Pos. Code Description Qty Notes
5 90075600 CIRCLIP D.45 (ZJ45) 1
4 70220381 SHIM 0.25 MM. 1
4 70220081 SHIM 0.1 MM. 1
3 90391500 O-RING D. 80.6X2.62 (3318) 2
2 91847700 TAPER ROLLER BEARING 2
33207/Q
1 70010022 CRANKCASE 1
VHT7095 3/21/2026 Page 6 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
VHT7095 3/21/2026 Page 7 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
KIT2395 34239501 1
KIT2394 34239401 1
KIT2158 34215801 KIT 2158*CONROD BUSHINGS 1
+0,50
KIT2157 34215701 KIT 2157*CONROD BUSHINGS 1
+0,25
KIT2156 34215601 KIT 2156*CONROD BUSHING 1
KIT212 34021201 1
75 99426600 VITE TE M12X25-UNI5739 ZINC. 1
74 71223074 STAFFA DI SOLLEVAMENTO 1
64 98209900 PLUG G. 3/8X13 NICKEL 3
62 98232600 1
61 98218200 1
60 93198500 1
59 93197200 1
58 70222341 2
57 90352800 O-RING D. 29.00x1.50 NBR 70SH 3
56 99192500 SCREW M06X35 5931 A2-70 6
55 70050266 PISTON GUIDE ROD 3
54 94745100 SPRING Dm. 16.0X37.0 INOX 3
53 90910000 CONROD BUSHING (SMALL END) 3
S.70
52 90922300 LOWER HALF CONROD BUSHING 3
(BIG END) S.70
52 90922500 LOWER HALF CONROD BUSHING 3
+0.50 (BIG END) S.70
52 90922400 LOWER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
51 90922000 UPPER HALF CONROD BUSHING 3
(BIG END) S.70
51 90922200 UPPER HALF CONROD BUSHING 3
+0.5 (BIG END) S.70
51 90922100 UPPER HALF CONROD BUSHING 3
+0.25 (BIG END) S.70
50 71225951 PLUG CAP 3
49 70222551 CRANKCASE PLUG 6
48 70030501 CONNECTING ROD COMPLETE 3
47 99381600 SCREW M10X110 UNI5931 8.8 8
46 90517800 6
45 94745000 SPRING D. 16X27,5 3
VHT7095 3/21/2026 Page 8 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
44 36204866 VALVE SEAT (70HT) 6
43 36201076 VALVE PLATE 6
41 36204705 VALVE CAGE S.S. (70 SERIES) 6
40 70211670 6
39 90518000 ANTI-EXTR.RING 6
D.32.4X36.5X1.5
38 99367100 14
37 90386550 12
36 36728901 3
35 36726501 3
34 90241000 3
33 70216570 3
32 90240000 3
31 70080570 3
30 90362650 3
29 70124241 1
28 70224136 PISTON BOLT 3
27 90358450 3
26 70040509 PISTON D.36X63 3
25 96709900 WASHER D.10X45 3
24 90167700 OIL SEAL D.36X47X7 3
23 97742000 GUDGEON PIN D.18X36 3
22 70050115 PISTON GUIDE T.N. 3
21 70606801 PISTON GUIDE ASSY 3
20 90166800 OIL SEAL D.35X52X7 1
19 70150022 BEARING COVER (PTO SIDE) 1
18 91490000 KEY 8h9X7X70 UNI 6604/A 1
17 70020035 1
16 99312300 CONN.ROD BOLT M8X1X42 6
15 98200500 PLUG D. 15 5
14 90394200 OR D.190.17X2.62 NBR 70SH 1
13 70160022 1
12 98211500 OIL DIPSTICK D.21,5X70 1
11 98210050 PLUG G3/8x13 TE22 1
10 90383300 O-RING 13,95X2,62 (3056) 4
9 99185400 SCREW M6X16 UNI 5931 8.8 Z. 20
8 70150122 BEARING COVER (OIL GLASS 1
SIDE)
7 90387700 O-RING 39,34X2,62 (3156) 1
6 70211801 OIL SIGHT GLASS 1
VHT7095 3/21/2026 Page 9 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT
Pos. Code Description Qty Notes
5 90075600 CIRCLIP D.45 (ZJ45) 1
4 70220381 SHIM 0.25 MM. 1
4 70220081 SHIM 0.1 MM. 1
3 90391500 O-RING D. 80.6X2.62 (3318) 2
2 91847700 TAPER ROLLER BEARING 2
33207/Q
1 70010022 CRANKCASE 1
VHT7095 3/21/2026 Page 10 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS + flange A - GAS
VHT7095 3/21/2026 Page 11 - 22
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS…
