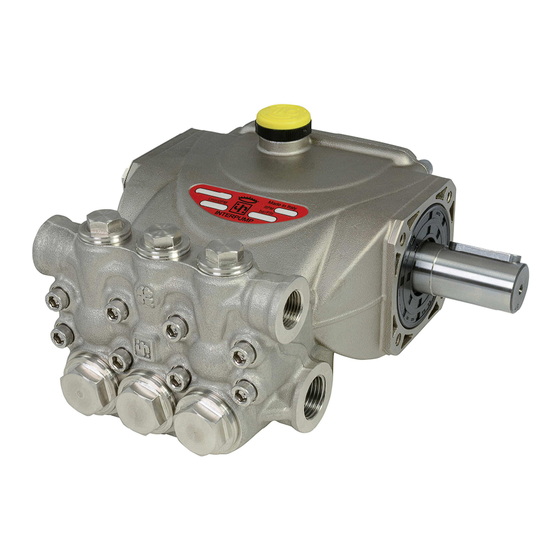

Interpump PUMP SW1C1513 R

The Interpump SW1C1513 R is a 5.1 hp industrial pump delivering 13 L/min at 150 bar, engineered for high-pressure applications requiring compact, reliable fluid transfer in manufacturing and process systems.

SKU 3G-ITP-00954

Also listed as: SW1C1513000 · SW1C1513 000

Brand

Interpump

Item

PUMP SW1C1513 R

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Interpump

Flow Rate

13 L/min

Pressure

150 bar

Power

3.72 kW

Speed

1750 RPM

Weight

6 kg

Dimensions

200.5 mm

Power

5.1 HP

Flow (US)

3.43 GPM

Pressure

15 MPa

Pressure

2175 PSI

Datasheet Content

VHT4723




TECHNICAL INFORMATION
Flow (L/min)                        23
Flow (US Gpm)                       0,254861111111111
Rotation regime (rpm)               1450
Pressure (MPa)                      16
Pressure (bar)                      160
Pressure (psi)                      2320
Power (hp)                          10
Power (kW)                          7,35
Overall dimensions L x l x h (mm)   315,5x254,5x146
Weight (kg)                         14,5




VHT4723                                                 3/21/2026   Page 1 - 8
Copyright INTERPUMP GROUP S.P.A
VHT4723

     Documents

Male shaft (key)

Male shaft (key) - vers. ATEX




VHT4723                           3/21/2026   Page 2 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)




VHT4723                           3/21/2026   Page 3 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.     Code           Description                   Qty Notes
KIT370   34037001       KIT 370 INLET/OUTLET VALVES 1
                        (47 VHT)
KIT369   34036901       KIT 369 CPL. SEALS D.22 (47   1
                        VHT)
KIT368   34036801       KIT 368 PISTON BOLT (47 VHT) 1

KIT367   34036701       KIT 367 VALVE PLUGS (47.VHT) 1


KIT3     34000301       KIT 3 OIL SEAL D.30X55X7      1
KIT202   34020201       KIT 202 SEALS D. 22 HT        1
KIT2     34000201       KIT 2 OIL SEAL D. 22X32X5,5   1


57       90387700       O-RING 39,34X2,62 (3156)      1
56       90075600       CIRCLIP D.45 (ZJ45)           1
55       70211801       OIL SIGHT GLASS               1
54       96738000       WASHER 17,5X23X1,5            1
53       98209900       PLUG G. 3/8X13 NICKEL         1
52       96751400       WASHER 21,5X27X1,5            1
51       98217900       PLUG G 1/2X10 NICKEL          1
50       96710600       WASHER 10,2                   4
49       99364400       SCREW M 10x18-5931            4
48       47200074       PUMP FOOT                     2
47       90231000       H.P. SEAL D. 22 (HT)          3
46       47217570       INTERMEDIATE RING D.22 HT     3


45       90230000       L.P. SEAL D.22 (HT)           3
44       47081470       BACK UP RING D. 22 HT         3
43       90361650       O-RING D. 34.65x1.78 HNBR     3
                        70SH 2137
42       90164800       OIL SEAL 30x55x7              1
41       97567800       SHIM D.74,5X104X0,1           1
40       47151022       OPEN SIDE COVER (47-66)       1
39       47219566       PISTON SCREW                  3
38       90358550       O-RING D.10.82x1.78 HNBR      4
                        70SH 2043
37       90506700       ANTI-EXTRUSION RING           3
36       47040509       PISTON D. 22x50               3
35       96728600       WASHER 14X28X0,5              3
33       99309900       SCREW M 8x35 UNI 5931         6
32       96728000       WASHER 14X18,5X0,5            3
31       98204250       PLUG G1/4"x12                 1
30       47221301       OIL SIGHT GLASS ASSY G3/4     1


29       47160622       CRANKCASE COVER               1
28       99188400       SCREW M 6x20 UNI 5931         5




VHT4723                                                           3/21/2026   Page 4 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.   Code             Description                   Qty Notes

27     47030001         CONNECTING ROD                3
26     47050466         PISTON GUIDE - S.S.           3
25     97738000         CONNECTING-ROD PIN            3
                        D.13X35,5
24     90055700         CIRCLIP D.12 UNI 7435         6
23     91489200         KEY 8(h9)X7X35 UNI 6604/A     1


22     47022435         CRANKSHAFT C. 15 (D. 24)      1
21     90392200         O-RING D.133.02X 2,62(3525)   1


20     98210600         OIL DIP-STICK G3/8X80         1
19     47010822         CRANKCASE                     1
18     90912600         BUSHING 22X25X30              3
17     90162500         OIL SEAL 22x32x5              3
16     91837800         TAPER BEARING 32206 SKF       2
15     90391300         O-RING 67,95X2,62 (3268)      2
14     47151222         SIDE CRANKCASE COVER FOR      1
                        OIL GAUGE
13     99303900         SCREW M 8x16 UNI 5931         8
12     36726101         INLET/OUTLET VALVE (47 VHT) 6


11     98222200         VALVE PLUG M24X2X16 NICKEL 6
                        PL.
10     90384750         O-RING D. 20.29x2.62 HNBR     6
                        90SH 3081
9      36200251         VALVE CAGE                    6
8      94737600         SPRING D. 9,4X14,8            6
7      36200176         VALVE PLATE                   6
6      36200366         VALVE SEAT                    6
5      90340100         PACKING D.17.1x22.3x1.8 HNBR 6
                        90SH
4      90510500         BACK-UP RING D.17.4X21.9X0.8 6


2      99320600         HEX-HEAD SCREW M08X70         8
                        UNI5737 10.9 Fe/Zn5c1A+De

1      47120941         MANIFOLD "T"                  1




VHT4723                                                           3/21/2026   Page 5 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - vers. ATEX




VHT4723                                      3/21/2026   Page 6 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - vers. ATEX

Pos.     Code           Description                   Qty Notes
KIT370   34037001       KIT 370 INLET/OUTLET VALVES 1
                        (47 VHT)
KIT369   34036901       KIT 369 CPL. SEALS D.22 (47   1
                        VHT)
KIT368   34036801       KIT 368 PISTON BOLT (47 VHT) 1

KIT367   34036701       KIT 367 VALVE PLUGS (47.VHT) 1


KIT3     34000301       KIT 3 OIL SEAL D.30X55X7      1
KIT202   34020201       KIT 202 SEALS D. 22 HT        1
KIT2     34000201       KIT 2 OIL SEAL D. 22X32X5,5   1


60       99180900       SCREW M06X10 5931 A2-70       1
59       96693950       WASHER 6.4x11.0x0.7 D6798A    1
                        INOX
57       90387700       O-RING 39,34X2,62 (3156)      1
56       90075500       STOP RING J45 UNI7437         1
55       70211801       OIL SIGHT GLASS               1
54       96738000       WASHER 17,5X23X1,5            1
53       98209900       PLUG G. 3/8X13 NICKEL         1
52       96751400       WASHER 21,5X27X1,5            1
51       98217900       PLUG G 1/2X10 NICKEL          1
50       96710600       WASHER 10,2                   4
49       99364400       SCREW M 10x18-5931            4
48       47200074       PUMP FOOT                     2
47       90231000       H.P. SEAL D. 22 (HT)          3
46       47217570       INTERMEDIATE RING D.22 HT     3


45       90230000       L.P. SEAL D.22 (HT)           3
44       47081470       BACK UP RING D. 22 HT         3
43       90361650       O-RING D. 34.65x1.78 HNBR     3
                        70SH 2137
42       90164800       OIL SEAL 30x55x7              1
41       97567800       SHIM D.74,5X104X0,1           1
40       47151022       OPEN SIDE COVER (47-66)       1
39       47219566       PISTON SCREW                  3
38       90358550       O-RING D.10.82x1.78 HNBR      4
                        70SH 2043
37       90506700       ANTI-EXTRUSION RING           3
36       47040509       PISTON D. 22x50               3
35       96728600       WASHER 14X28X0,5              3
33       99309900       SCREW M 8x35 UNI 5931         6
32       96728000       WASHER 14X18,5X0,5            3
31       98203600       PLUG G1/4x8 FOR PROBE D.6     1
                        S.S.




VHT4723                                                           3/21/2026   Page 7 - 8
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - vers. ATEX

Pos.   Code             Description                   Qty Notes

30     98226600         PLUG G3/4X16 S.S.             1
29     47160622         CRANKCASE COVER               1
28     99188400         SCREW M 6x20 UNI 5931         5
27     47030001         CONNECTING ROD                3
26     47050466         PISTON GUIDE - S.S.           3
25     97738000         CONNECTING-ROD PIN            3
                        D.13X35,5
24     90055700         CIRCLIP D.12 UNI 7435         6
23     91489200         KEY 8(h9)X7X35 UNI 6604/A     1


22     47022435         CRANKSHAFT C. 15 (D. 24)      1
21     90392200         O-RING D.133.02X 2,62(3525)   1


20     98210700         OIL DIPSTICK G3/8X64          1
                        D4+FILTER ATEX
19     47010822         CRANKCASE                     1
18     90912600         BUSHING 22X25X30              3
17     90162500         OIL SEAL 22x32x5              3
16     91837800         TAPER BEARING 32206 SKF       2
15     90391300         O-RING 67,95X2,62 (3268)      2
14     47151322         SIDE CRANKCASE COVER (ATEX) 1


13     99303900         SCREW M 8x16 UNI 5931         8
12     36726101         INLET/OUTLET VALVE (47 VHT) 6


11     98222200         VALVE PLUG M24X2X16 NICKEL 6
                        PL.
10     90384750         O-RING D. 20.29x2.62 HNBR     6
                        90SH 3081
9      36200251         VALVE CAGE                    6
8      94737600         SPRING D. 9,4X14,8            6
7      36200176         VALVE PLATE                   6
6      36200366         VALVE SEAT                    6
5      90340100         PACKING D.17.1x22.3x1.8 HNBR 6
                        90SH
4      90510500         BACK-UP RING D.17.4X21.9X0.8 6


2      99320600         HEX-HEAD SCREW M08X70         8
                        UNI5737 10.9 Fe/Zn5c1A+De

1      47120941         MANIFOLD "T"                  1




VHT4723                                                           3/21/2026   Page 8 - 8
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the Interpump SW1C1513 R pump worldwide?

3G Electric is an authorized Interpump distributor. We source and deliver the SW1C1513 R globally, handling all logistics and customs clearance. Lead time on request via quotation.

What is the pressure and flow output of the SW1C1513 R?

The pump delivers 13 L/min (3.43 US gpm) at a maximum pressure of 150 bar (15 MPa / 2175 psi). It runs at 1750 rpm with 5.1 hp (3.72 kW) input power.

Is the Interpump SW1C1513 R suitable for high-pressure manufacturing applications?

Yes. Engineered for compact, reliable high-pressure fluid transfer, the SW1C1513 R is ideal for process systems and manufacturing requiring consistent 150 bar performance in a space-efficient 200.5 mm length footprint.
