SSE2025
TECHNICAL INFORMATION
Flow (L/min) 25
Flow (US Gpm) 6,60
Rotation regime (rpm) 1450
Pressure (MPa) 20
Pressure (bar) 200
Pressure (psi) 2900
Power (hp) 13
Power (kW) 9,55
Overall dimensions L x l x h (mm) 340,5x242x5x176
Weight (kg) 21
SSE2025 3/21/2026 Page 1 - 32
Copyright INTERPUMP GROUP S.P.A
SSE2025
Documents
Male shaft (key) - (plugs)
Male shaft (key) - (plugs) - Flushing
Male shaft (key) - (covers)
Male shaft (key) - (covers) - Flushing
Double male shaft (key) - (plugs)
Double male shaft (key) - (covers)
Male shaft (key) - vers. ATEX - (plugs)
Male shaft (key) - vers. ATEX - (plugs) - Flushing
Male shaft (key) - vers. ATEX - (covers)
Male shaft (key) - vers. ATEX - (covers) - Flushing
SSE2025 3/21/2026 Page 2 - 32
Copyright INTERPUMP GROUP S.P.A

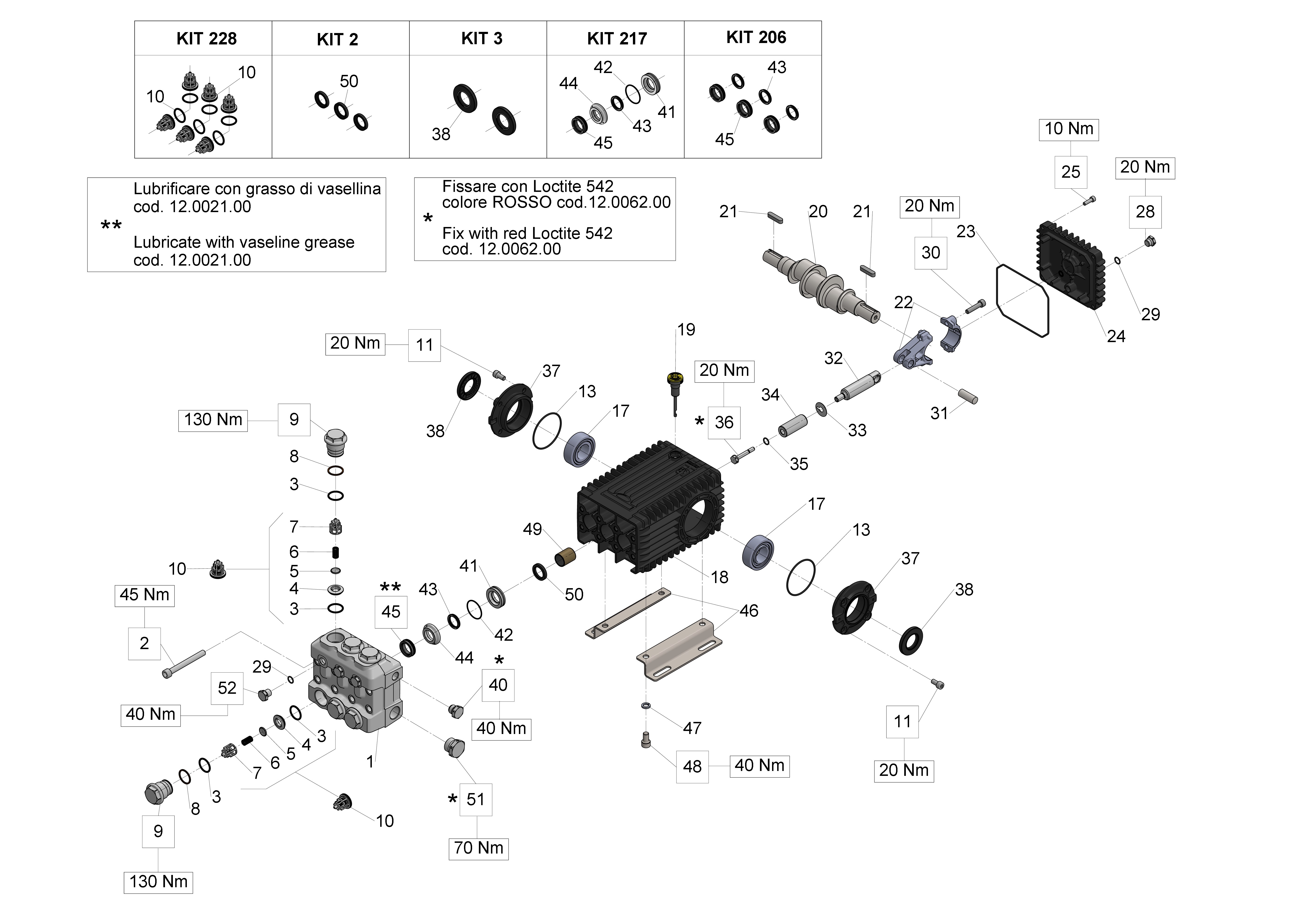

Illustration Male shaft (key) - (plugs)
SSE2025 3/21/2026 Page 3 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs)
Pos. Code Description Qty Notes
KIT3 34000301 KIT 3 OIL SEAL D.30X55X7 1
KIT228 34022801 1
KIT217 34021701 1
KIT206 34020601 1
KIT2 34000201 KIT 2 OIL SEAL D. 22X32X5,5 1
52 98204600 3
51 98226600 PLUG G3/4X16 S.S. 1
50 90162500 OIL SEAL 22x32x5 3
49 90912600 BUSHING 22X25X30 3
48 99364400 SCREW M 10x18-5931 1
47 96710600 WASHER 10,2 1
46 47200074 PUMP FOOT 2
45 90226000 SEAL D.20X30X10 H.P. (HT) 3
44 66217266 3
44 66220266 2
43 90225000 SEAL D.20X26.15 L.P.(66HT) 3
42 90361600 O-RING 34,65X1,78 (2137) 3
41 66081766 3
40 98210066 PLUG G 3/8 X 13 STAINLESS 1
38 90164800 OIL SEAL 30x55x7 1
37 47151022 OPEN SIDE COVER (47-66) 1
36 66219666 3
35 90358400 O-RING D.10,82X1,78(2043)90SH 3
34 66040009 PISTON D. 20X54 3
33 96709800 3
32 66050166 3
31 97740500 CONNECTING ROD-PIN D.14X39 3
30 99309900 SCREW M 8x35 UNI 5931 6
29 90358500 O-RING 10,82X1,78 (2043) 4
28 98204000 PLUG G1/4X9 S.S. 1
25 99188300 SCREW M6X20 S.S. 4
24 66160022 REAR COVER 1
23 90392200 O-RING D.133.02X 2,62(3525) 1
22 66030001 CONNECTING ROD 3
21 91489200 KEY 8(h9)X7X35 UNI 6604/A 1
20 66020035 CRANKSHAFT C.19 - D. 24 1
SSE2025 3/21/2026 Page 4 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs)
Pos. Code Description Qty Notes
19 98210600 OIL DIP-STICK G3/8X80 1
18 66010022 CRANKCASE 1
17 91838000 ROLLER BEARING NJ2206EC 2
16 90075600 CIRCLIP D.45 (ZJ45) 1
15 70211801 OIL SIGHT GLASS 1
14 90387700 O-RING 39,34X2,62 (3156) 1
13 90391300 O-RING 67,95X2,62 (3268) 2
12 47151222 SIDE CRANKCASE COVER FOR 1
OIL GAUGE
11 99303800 SCREW M8X16 - STAINLESS 8
10 36713101 6
9 66130266 6
8 90516500 ANTI-EXTR.RING D.24.7x29x1.5 6
7 36203551 VALVE CAGE 6
6 94738800 SPRING Dm. 10x18.5 6
5 36203476 SPHERICAL VALVE 6
4 36203766 6
3 90385700 O-RING 23,81X2,62 (132) 12
2 99380200 8
1 66120336 1
SSE2025 3/21/2026 Page 5 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - Flushing
SSE2025 3/21/2026 Page 6 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - Flushing
Pos. Code Description Qty Notes
KIT3 34000301 KIT 3 OIL SEAL D.30X55X7 1
KIT228 34022801 1
KIT217 34021701 1
KIT206 34020601 1
KIT2 34000201 KIT 2 OIL SEAL D. 22X32X5,5 1
52 98204600 3
51 98226600 PLUG G3/4X16 S.S. 1
50 90162500 OIL SEAL 22x32x5 3
49 90912600 BUSHING 22X25X30 3
48 99364400 SCREW M 10x18-5931 1
47 96710600 WASHER 10,2 1
46 47200074 PUMP FOOT 2
45 90226000 SEAL D.20X30X10 H.P. (HT) 3
44 66217266 2
44 66220266 3
43 90225000 SEAL D.20X26.15 L.P.(66HT) 3
42 90361600 O-RING 34,65X1,78 (2137) 3
41 66081766 3
40 98210066 PLUG G 3/8 X 13 STAINLESS 1
38 90164800 OIL SEAL 30x55x7 1
37 47151022 OPEN SIDE COVER (47-66) 1
36 66219666 3
35 90358400 O-RING D.10,82X1,78(2043)90SH 3
34 66040009 PISTON D. 20X54 3
33 96709800 3
32 66050166 3
31 97740500 CONNECTING ROD-PIN D.14X39 3
30 99309900 SCREW M 8x35 UNI 5931 6
29 90358500 O-RING 10,82X1,78 (2043) 4
28 98204000 PLUG G1/4X9 S.S. 1
25 99188300 SCREW M6X20 S.S. 4
24 66160022 REAR COVER 1
23 90392200 O-RING D.133.02X 2,62(3525) 1
22 66030001 CONNECTING ROD 3
21 91489200 KEY 8(h9)X7X35 UNI 6604/A 1
20 66020035 CRANKSHAFT C.19 - D. 24 1
SSE2025 3/21/2026 Page 7 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (plugs) - Flushing
Pos. Code Description Qty Notes
19 98210600 OIL DIP-STICK G3/8X80 1
18 66010022 CRANKCASE 1
17 91838000 ROLLER BEARING NJ2206EC 2
16 90075600 CIRCLIP D.45 (ZJ45) 1
15 70211801 OIL SIGHT GLASS 1
14 90387700 O-RING 39,34X2,62 (3156) 1
13 90391300 O-RING 67,95X2,62 (3268) 2
12 47151222 SIDE CRANKCASE COVER FOR 1
OIL GAUGE
11 99303800 SCREW M8X16 - STAINLESS 8
10 36713101 6
9 66130266 6
8 90516500 ANTI-EXTR.RING D.24.7x29x1.5 6
7 36203551 VALVE CAGE 6
6 94738800 SPRING Dm. 10x18.5 6
5 36203476 SPHERICAL VALVE 6
4 36203766 6
3 90385700 O-RING 23,81X2,62 (132) 12
2 99380200 8
1 66124836 1
SSE2025 3/21/2026 Page 8 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (covers)
SSE2025 3/21/2026 Page 9 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (covers)
Pos. Code Description Qty Notes
KIT3 34000301 KIT 3 OIL SEAL D.30X55X7 1
KIT228 34022801 1
KIT217 34021701 1
KIT206 34020601 1
KIT2 34000201 KIT 2 OIL SEAL D. 22X32X5,5 1
57 99188300 SCREW M6X20 S.S. 4
56 66160022 REAR COVER 1
55 90392200 O-RING D.133.02X 2,62(3525) 1
54 66221636 2
53 99368500 12
52 98204600 3
51 98226600 PLUG G3/4X16 S.S. 1
50 90162500 OIL SEAL 22x32x5 3
49 90912600 BUSHING 22X25X30 3
48 99364400 SCREW M 10x18-5931 1
47 96710600 WASHER 10,2 1
46 47200074 PUMP FOOT 2
45 90226000 SEAL D.20X30X10 H.P. (HT) 3
44 66217266 3
44 66220266 2
43 90225000 SEAL D.20X26.15 L.P.(66HT) 3
42 90361600 O-RING 34,65X1,78 (2137) 3
41 66081766 3
40 98210066 PLUG G 3/8 X 13 STAINLESS 1
38 90164800 OIL SEAL 30x55x7 1
37 47151022 OPEN SIDE COVER (47-66) 1
36 66219666 3
35 90358400 O-RING D.10,82X1,78(2043)90SH 3
34 66040009 PISTON D. 20X54 3
33 96709800 3
32 66050166 3
31 97740500 CONNECTING ROD-PIN D.14X39 3
30 99309900 SCREW M 8x35 UNI 5931 6
29 90358500 O-RING 10,82X1,78 (2043) 4
28 98204000 PLUG G1/4X9 S.S. 1
22 66030001 CONNECTING ROD 3
21 91489200 KEY 8(h9)X7X35 UNI 6604/A 1
SSE2025 3/21/2026 Page 10 - 32
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - (covers)
Pos. Code Description Qty Notes
20 66020035 CRANKSHAFT C.19 - D. 24 1
19 98210600 OIL DIP-STICK G3/8X80 1
18 66010022 CRANKCASE 1
17 91838000 ROLLER BEARING NJ2206EC 2
16 90075600 CIRCLIP D.45 (ZJ45) 1
15 70211801 OIL SIGHT GLASS 1
14 90387700 O-RING 39,34X2,62 (3156) 1
13 90391300 O-RING 67,95X2,62 (3268) 2
12 47151222 SIDE CRANKCASE COVER FOR 1
OIL GAUGE
11 99303800 SCREW M8X16 - STAINLESS 8
10 36713101 6
9 66221766 6
8 90516500 ANTI-EXTR.RING D.24.7x29x1.5 6
7 36203551 VALVE CAGE 6
6 94738800 SPRING Dm. 10x18.5 6
5 36203476 SPHERICAL VALVE 6…
