Pratissoli PUMP SS7030 R

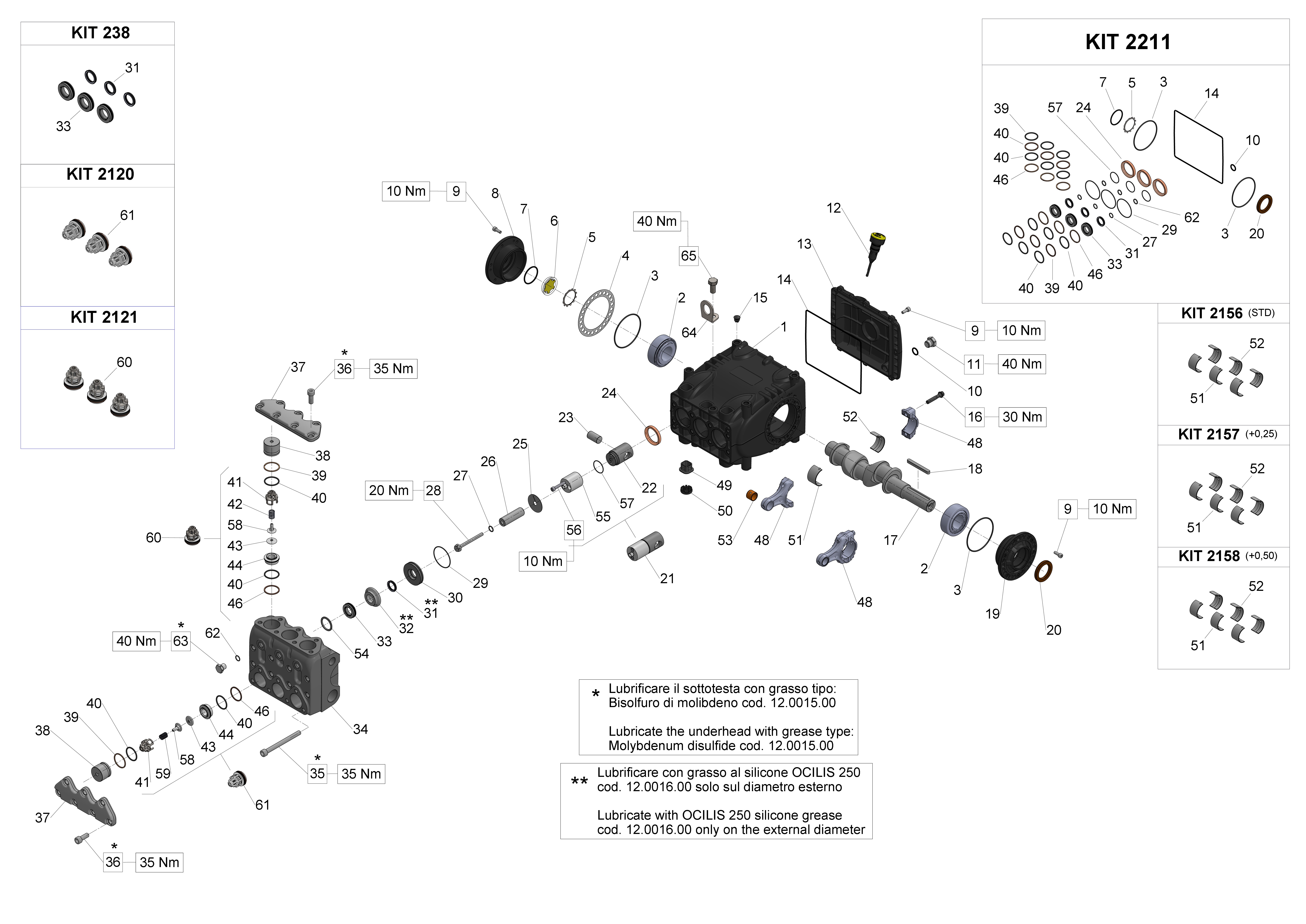

SS7030 TECHNICAL INFORMATION Flow (L/min) 30 Flow (US Gpm) 7,9 Rotation regime (rpm) 1450 Pressure (MPa) 20 Pressure (bar) 200 Pressure (psi) 2900 Power (hp) 16 Power (kW) 11,7 Overall dimensions L x l x h (mm) 387x340,5x208 Weight (kg) 43 SS7030 3/21/2026 Page 1 - 10 Copyright INTERPUMP GROUP S.P.A SS7030 Documents Male shaft (key) - GAS Male shaft (key) + flange A - GAS SS7030 3/21/2026 Page 2 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS SS7030 3/21/2026 Page 3 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes KIT238 34023801 KIT 238 SEALS D.20 CW 1 KIT2211 34221101 1 KIT2158 34215801 KIT 2158*CONROD BUSHINGS 1 +0,50 KIT2157 34215701 KIT 2157*CONROD BUSHINGS 1 +0,25 KIT2156 34215601 KIT 2156*CONROD BUSHING 1 KIT2121 34212101 1 KIT2120 34212001 1 65 99426600 VITE TE M12X25-UNI5739 ZINC. 1 64 71223074 STAFFA DI SOLLEVAMENTO 1 63 98204600 3 62 90358500 O-RING 10,82X1,78 (2043) 3 61 36716601 3 60 36716701 3 59 94739700 3 58 36210151 6 57 90352800 O-RING D. 29.00x1.50 NBR 70SH 3 56 99192500 SCREW M06X35 5931 A2-70 6 55 70050266 PISTON GUIDE ROD 3 54 70223766 3 53 90910000 CONROD BUSHING (SMALL END) 3 S.70 52 90922300 LOWER HALF CONROD BUSHING 3 (BIG END) S.70 52 90922500 LOWER HALF CONROD BUSHING 1 +0.50 (BIG END) S.70 52 90922400 LOWER HALF CONROD BUSHING 1 +0.25 (BIG END) S.70 51 90922000 UPPER HALF CONROD BUSHING 3 (BIG END) S.70 51 90922200 UPPER HALF CONROD BUSHING 1 +0.5 (BIG END) S.70 51 90922100 UPPER HALF CONROD BUSHING 1 +0.25 (BIG END) S.70 50 71225951 PLUG CAP 3 49 70222551 CRANKCASE PLUG 6 48 70030501 CONNECTING ROD COMPLETE 3 46 90517800 6 44 36209466 6 43 36209866 6 SS7030 3/21/2026 Page 4 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes 42 94740100 3 41 36213805 6 40 90386500 O-RING 29,82X2,62 (3118) 12 39 90518000 ANTI-EXTR.RING 6 D.32.4X36.5X1.5 38 70222166 6 37 70221536 2 36 99367000 14 35 99381800 8 34 70125336 1 33 90226200 HP SEAL D.20X35X9 3 32 70223666 3 31 90225000 SEAL D.20X26.15 L.P.(66HT) 3 30 70081566 3 29 90362600 O-RING D. 50,52X1,78 (2200) 3 28 70221866 3 27 90367100 3 26 70040009 3 25 96709900 WASHER D.10X45 3 24 90167700 OIL SEAL D.36X47X7 3 23 97742000 GUDGEON PIN D.18X36 3 22 70050115 PISTON GUIDE T.N. 3 21 70606801 PISTON GUIDE ASSY 3 20 90166800 OIL SEAL D.35X52X7 1 19 70150022 BEARING COVER (PTO SIDE) 1 18 91490000 KEY 8h9X7X70 UNI 6604/A 1 17 70020035 1 16 99312300 CONN.ROD BOLT M8X1X42 6 15 98200500 PLUG D. 15 1 14 90394200 OR D.190.17X2.62 NBR 70SH 1 13 70160022 1 12 98211500 OIL DIPSTICK D.21,5X70 1 11 98210066 PLUG G 3/8 X 13 STAINLESS 1 10 90383300 O-RING 13,95X2,62 (3056) 1 9 99185200 20 8 70150122 BEARING COVER (OIL GLASS 1 SIDE) 7 90387700 O-RING 39,34X2,62 (3156) 1 6 70211801 OIL SIGHT GLASS 1 SS7030 3/21/2026 Page 5 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes 5 90075600 CIRCLIP D.45 (ZJ45) 1 4 70220381 SHIM 0.25 MM. 1 4 70220081 SHIM 0.1 MM. 1 3 90391500 O-RING D. 80.6X2.62 (3318) 2 2 91847700 TAPER ROLLER BEARING 2 33207/Q 1 70010022 CRANKCASE 1 SS7030 3/21/2026 Page 6 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) + flange A - GAS SS7030 3/21/2026 Page 7 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) + flange A - GAS Pos. Code Description Qty Notes KIT238 34023801 KIT 238 SEALS D.20 CW 1 KIT2211 34221101 1 KIT2158 34215801 KIT 2158*CONROD BUSHINGS 1 +0,50 KIT2157 34215701 KIT 2157*CONROD BUSHINGS 1 +0,25 KIT2156 34215601 KIT 2156*CONROD BUSHING 1 KIT2121 34212101 1 KIT2120 34212001 1 71 99308400 SCREW M 8x30 UNI 5931 6 70 10067320 FLANGE FOR HYDRAULIC MOTOR 1 KE TYPE A 65 99426600 VITE TE M12X25-UNI5739 ZINC. 1 64 71223074 STAFFA DI SOLLEVAMENTO 1 63 98204600 3 62 90358500 O-RING 10,82X1,78 (2043) 3 61 36716601 3 60 36716701 3 59 94739700 3 58 36210151 6 57 90352800 O-RING D. 29.00x1.50 NBR 70SH 3 56 99192500 SCREW M06X35 5931 A2-70 6 55 70050266 PISTON GUIDE ROD 3 54 70223766 3 53 90910000 CONROD BUSHING (SMALL END) 3 S.70 52 90922300 LOWER HALF CONROD BUSHING 3 (BIG END) S.70 52 90922500 LOWER HALF CONROD BUSHING 1 +0.50 (BIG END) S.70 52 90922400 LOWER HALF CONROD BUSHING 1 +0.25 (BIG END) S.70 51 90922000 UPPER HALF CONROD BUSHING 3 (BIG END) S.70 51 90922200 UPPER HALF CONROD BUSHING 1 +0.5 (BIG END) S.70 51 90922100 UPPER HALF CONROD BUSHING 1 +0.25 (BIG END) S.70 50 71225951 PLUG CAP 3 49 70222551 CRANKCASE PLUG 6 48 70030501 CONNECTING ROD COMPLETE 3 SS7030 3/21/2026 Page 8 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) + flange A - GAS Pos. Code Description Qty Notes 46 90517800 6 44 36209466 6 43 36209866 6 42 94740100 3 41 36213805 6 40 90386500 O-RING 29,82X2,62 (3118) 12 39 90518000 ANTI-EXTR.RING 6 D.32.4X36.5X1.5 38 70222166 6 37 70221536 2 36 99367000 14 35 99381800 8 34 70125336 1 33 90226200 HP SEAL D.20X35X9 3 32 70223666 3 31 90225000 SEAL D.20X26.15 L.P.(66HT) 3 30 70081566 3 29 90362600 O-RING D. 50,52X1,78 (2200) 3 28 70221866 3 27 90367100 3 26 70040009 3 25 96709900 WASHER D.10X45 3 24 90167700 OIL SEAL D.36X47X7 3 23 97742000 GUDGEON PIN D.18X36 3 22 70050115 PISTON GUIDE T.N. 3 21 70606801 PISTON GUIDE ASSY 3 20 90166800 OIL SEAL D.35X52X7 1 19 70150022 BEARING COVER (PTO SIDE) 1 18 91490000 KEY 8h9X7X70 UNI 6604/A 1 17 70020035 1 16 99312300 CONN.ROD BOLT M8X1X42 6 15 98200500 PLUG D. 15 1 14 90394200 OR D.190.17X2.62 NBR 70SH 1 13 70160022 1 12 98211500 OIL DIPSTICK D.21,5X70 1 11 98210066 PLUG G 3/8 X 13 STAINLESS 1 10 90383300 O-RING 13,95X2,62 (3056) 1 9 99185200 20 8 70150122 BEARING COVER (OIL GLASS 1 SIDE) SS7030 3/21/2026 Page 9 - 10 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) + flange A - GAS Pos. Code Description Qty Notes 7 90387700 O-RING 39,34X2,62 (3156) 1 6 70211801 OIL SIGHT GLASS 1 5 90075600 CIRCLIP D.45 (ZJ45) 1 4 70220381 SHIM 0.25 MM. 1 4 70220081 SHIM 0.1 MM. 1 3 90391500 O-RING D. 80.6X2.62 (3318) 2 2 91847700 TAPER ROLLER BEARING 2 33207/Q 1 70010022 CRANKCASE 1 SS7030 3/21/2026 Page 10 - 10 Copyright INTERPUMP GROUP S.P.A
