Interpump PUMP SS1C1511 R

Interpump PUMP SS1C1511 R is an industrial gear pump delivering 11 L/min at 150 bar, rated for 3.15 kW at 1750 rpm. Its compact 200.5 mm length and 6 kg weight suit high-pressure applications in hydraulic systems…

SKU 3G-ITP-00838

Also listed as: SS1C1511000 · SS1C1511 000

Brand

Interpump

Item

PUMP SS1C1511 R

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Interpump

Flow Rate

11 L/min

Pressure

150 bar

Power

3.15 kW

Speed

1750 RPM

Weight

6 kg

Dimensions

200.5 mm

Power

4.3 HP

Flow (US)

2.91 GPM

Pressure

15 MPa

Pressure

2175 PSI

Datasheet Content

C2W2011




TECHNICAL INFORMATION
Flow (L/min)                        11
Flow (US Gpm)                       2,91
Rotation regime (rpm)               1450
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          5,7
Power (kW)                          4,19
Overall dimensions L x l x h (mm)   241,5x215x129,5
Weight (kg)                         7




C2W2011                                               3/21/2026   Page 1 - 5
Copyright INTERPUMP GROUP S.P.A
C2W2011

     Documents

Male shaft (key)




C2W2011                           3/21/2026   Page 2 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)




C2W2011                           3/21/2026   Page 3 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.     Code           Description                   Qty Notes
KIT343   34034301       KIT 343 CPL. SEAL D. 18 C2W   1

KIT342   34034201       KIT 342 PACKING D. 18 C2W     1

KIT292   34029201       KIT 292 VALVE PLUGS (NICK.)59 1
                        S.
KIT271   34027101       KIT 271 OIL SEAL D.15         1
                        58/59 SERIES

KIT269   34026901       KIT 269 INTAKE/DELIVERY       1
                        VALVES
62       58100151       ANELLO DI TESTA D.18 LP (CW) 3


61       50200074       PUMP FOOT                     2
60       96701600       WASHER 8,4                    4
59       99303700       SCREW M 8x16-5739             4
58       90358500       O-RING 10,82X1,78 (2043)      1
57       98204250       PLUG G1/4"x12                 1
56       58160022       REAR CRANKCASE COVER          1
55       90392550       O-RING D.113.97X2.62          1
54       98210500       OIL DIPSTICK G3/8x51 D.7      1
53       91489200       KEY 8(h9)X7X35 UNI 6604/A     1


52       90164100       OIL SEAL D.25X62X10           1
51       58150122       COPERCHIO LATERALE            1
50       90067100       CIRCLIP ZJ30                  1
49       90385900       O-RING 25,07X2,62 (3100)      1
48       90389800       O-RING 56,82X2,62 (3225)      1
47       91833100       BALL BEARING 6305 SKF         2
46       63021235       CRANKSHAFT C.10               1
45       53210851       OIL LEVEL GAUGE               1
44       99183700       SCREW M 6x14 UNI 5931         8
43       90063500       CIRCLIP D. 25 UNI 7435        1
42       58030022       CONNECTING ROD                3
41       97734000       CONNECTING-ROD PIN            3
                        D.10X29,5
40       58050066       PISTON GUIDE                  3
39       90156550       OIL SEAL D.15X24X5/7          3
38       58210451       PROTECTION                    1
37       58010022       PUMP CRANKCASE                1
36       58210582       SPONGE GASKET D.3X94          1
35       96699000       WASHER D.7.5X23X0.5           3
34       96751400       WASHER 21,5X27X1,5            1
33       98217900       PLUG G 1/2X10 NICKEL          1
32       96738000       WASHER 17,5X23X1,5            1




C2W2011                                                           3/21/2026   Page 4 - 5
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key)

Pos.   Code             Description                   Qty Notes

31     98209900         PLUG G. 3/8X13 NICKEL         1
30     58210870         RING FOR SEAL D.18            3
29     90265030         PACKING D. 18,0x24x5 LP CW    3


27     90360600         O-RING 26,70X1,78 (2106)      3
26     58605801         PACKING RETAINER+SLEEVE       3
                        D.18
25     90265530         PACKING D. 18,0x28x10 HP CW 3


24     90511000         ANTI-EXTR.RING D.18X28X2      3
23     90265330         PACKING D. 18,0x28x6/3,7 HP   3
                        CW
22     66100351         HEAD RING D.18 H.P.           3
21     99317500         SCREW M 8x60 UNI 5931         8
20     98213750         PLUG M18X1,5X10 D.23 (NICK.) 3


19     90359300         O-RING 15,60X1,78 (2062)      3
18     36719301         OUTLET VALVE                  3
17     36211151         VALVE CAGE                    3
16     94733300         SPRING D.6.2x10.5 S.S.        3
15     36211276         SPHERICAL VALVE               3
14     36211366         VALVE SEAT                    3
13     90367400         O-RING D. 12X2 (120-20)       3
12     58040209         PISTON D.18X42                3
11     96690500         WASHER D.5X11.5x0.4           3
                        INOX+FKM58/59/63HT
10     99169000         SCREW M05X55 SPEC. A2-70      3
9      98222500         VALVE CAP M24X1,5X17 NICKEL 3


8      90384700         O-RING 20,29X2,62(3081)       3
7      36711501         INTAKE/DELIVERY VALVE         3
6      90384100         O-RING 17,12X2,62 (3068)      3
5      36200366         VALVE SEAT                    3
4      36200176         VALVE PLATE                   3
3      94737600         SPRING D. 9,4X14,8            3
2      36202551         VALVE CAGE                    3
1      58120836         MANIFOLD FOR PISTON D. 18     1
                        C2W




C2W2011                                                           3/21/2026   Page 5 - 5
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the Interpump SS1C1511 R pump?

3G Electric is an authorized distributor of Interpump industrial pumps worldwide. We handle sourcing, customs clearance, and logistics to your facility. Lead time on request — contact our sales team for availability and delivery schedule.

What is the flow rate and pressure rating of the SS1C1511-000?

The Interpump SS1C1511 R delivers 11 L/min (2.91 US gpm) at its rated pressure of 150 bar (15 MPa / 2175 psi). Operating speed is 1750 rpm with 3.15 kW (4.3 hp) input power.

What applications suit this Interpump gear pump?

The SS1C1511 R is engineered for high-pressure hydraulic systems in manufacturing equipment and mobile machinery. Its compact 200.5 mm length and lightweight 6 kg design fit space-constrained installations requiring reliable pressure delivery up to 150 bar.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SS1C1511 parts list — 66 parts, 66 available in catalog

Official Parts List

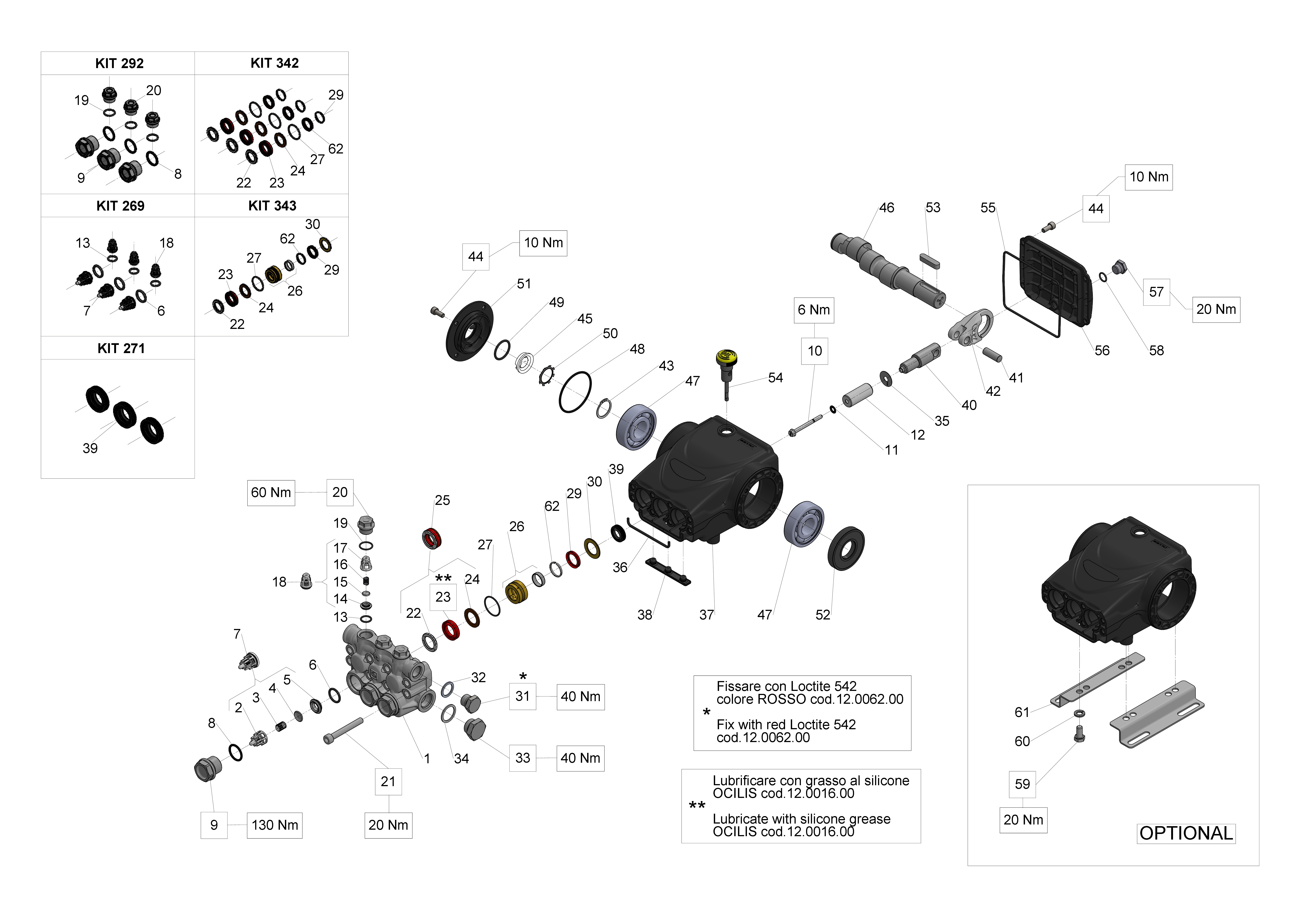

SS1C1511 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT269

KIT 269 INTAKE/DELIVERY VALVES

34026901×1Available
