Interpump PUMP SS1B1513 R

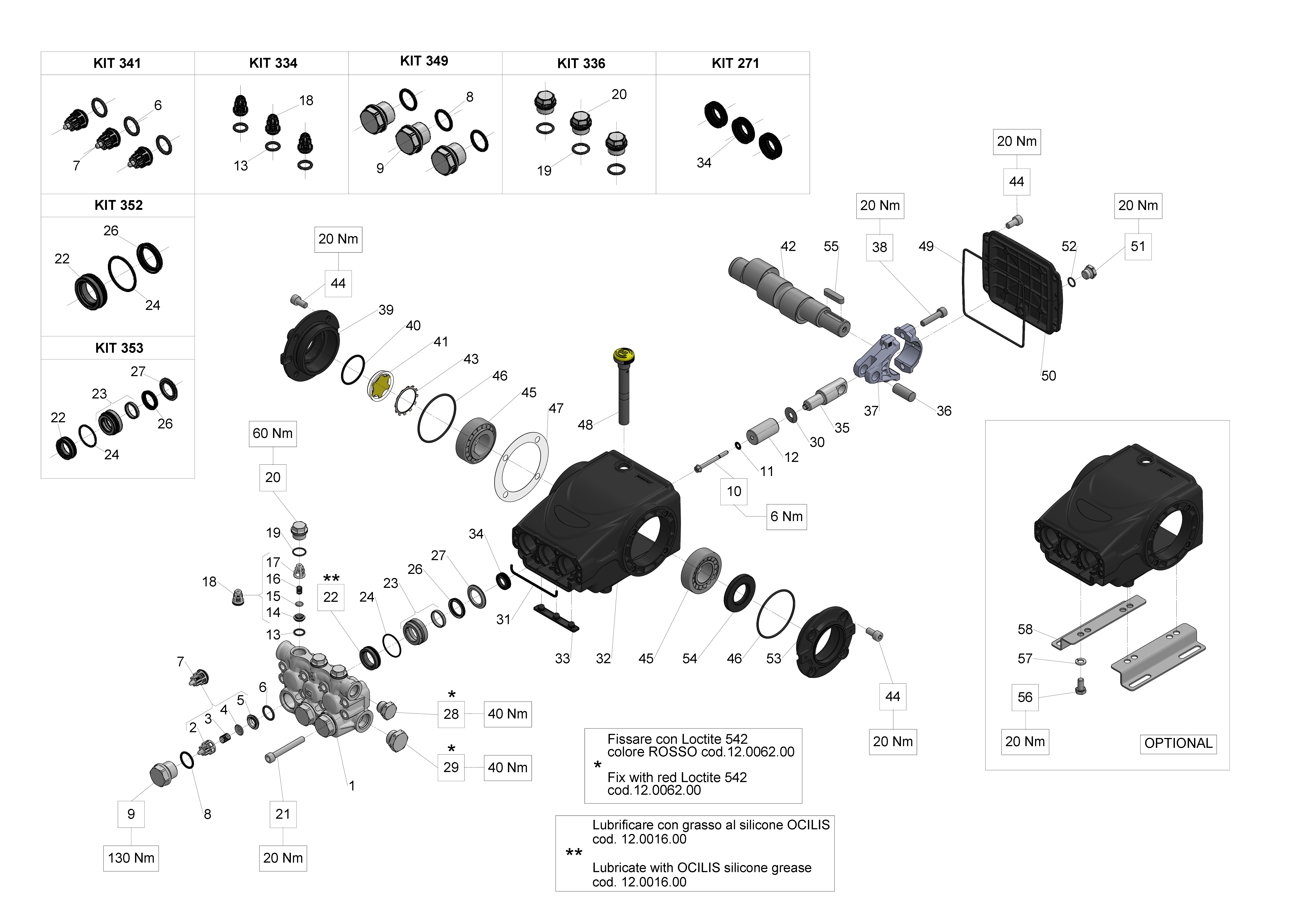

SS3C2021 TECHNICAL INFORMATION Flow (L/min) 21 Flow (US Gpm) 5,55 Rotation regime (rpm) 1750 Pressure (MPa) 20 Pressure (bar) 200 Pressure (psi) 2900 Power (hp) 10,9 Power (kW) 8,02 Overall dimensions L x l x h (mm) 273,5x223x152,5 Weight (kg) 9,5 SS3C2021 3/21/2026 Page 1 - 5 Copyright INTERPUMP GROUP S.P.A SS3C2021 Documents Male shaft (key) - (plugs) - OUT OF PRODUCTION SS3C2021 3/21/2026 Page 2 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION SS3C2021 3/21/2026 Page 3 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION Pos. Code Description Qty Notes KIT353 34035301 KIT 353 CPL. SEAL D. 22 S. 59 SS1 KIT352 34035201 KIT 352 PACKING D. 22 S. 59 SS 1 KIT349 34034901 KIT 349*INLET VALVE CAPS S.59 1 SS KIT341 34034101 KIT 341 INLET VALVES S.53SS 1 KIT336 34033601 KIT 336 OUTLET VALVE PLUG 1 S.53 SS KIT334 34033401 KIT 334 OUTLET VALVES S.53SS 1 KIT271 34027101 KIT 271 OIL SEAL D.15 1 58/59 SERIES 58 50200074 PUMP FOOT 2 57 96701600 WASHER 8,4 4 56 99303700 SCREW M 8x16-5739 4 55 91489200 KEY 8(h9)X7X35 UNI 6604/A 1 54 90164800 OIL SEAL 30x55x7 1 53 47151022 OPEN SIDE COVER (47-66) 1 52 90358500 O-RING 10,82X1,78 (2043) 1 51 98204000 PLUG G1/4X9 S.S. 1 50 59160022 REAR CRANKCASE COVER 1 49 90392200 O-RING D.133.02X 2,62(3525) 1 48 98211300 ASTA LIVELLO OLIO G3/8x54 D.4 1 47 97567800 SHIM D.74,5X104X0,1 1 47 97568000 SHIM D.74.5X104X0.3 1 46 90391300 O-RING 67,95X2,62 (3268) 2 45 91837500 TAPER BEARING 2 44 99303800 SCREW M8X16 - STAINLESS 12 43 90075600 CIRCLIP D.45 (ZJ45) 1 42 59020235 CRANKSHAFT C.12 1 41 70211801 OIL SIGHT GLASS 1 40 90387700 O-RING 39,34X2,62 (3156) 1 39 47151222 SIDE CRANKCASE COVER FOR 1 OIL GAUGE 38 99309900 SCREW M 8x35 UNI 5931 6 37 59030001 CONNECTING ROD COMPLETE 3 36 97739900 GUDGEON PIN D.14X34 3 35 59050166 PISTON GUIDE - S.S. 3 34 90156550 OIL SEAL D.15X24X5/7 3 33 58210451 PROTECTION 1 SS3C2021 3/21/2026 Page 4 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - (plugs) - OUT OF PRODUCTION Pos. Code Description Qty Notes 32 59010022 PUMP CRANKCASE 1 31 59211082 SPONGE GASKET D.3X103 1 30 96699000 WASHER D.7.5X23X0.5 3 29 98218000 PLUG G 1/2 X 10 STAINLESS 1 28 98210066 PLUG G 3/8 X 13 STAINLESS 1 27 59211656 RING FOR PACKING D.22 * SS 3 26 90230000 L.P. SEAL D.22 (HT) 3 24 90361200 O-RING 31,47X1,78 (2125) 3 23 59606501 PACKING RETAINER D. 3 22+SLEEVE S.S. 22 90231200 H.P. SEAL D.22X32X10 (66HT) 3 21 99317600 SCREW M08x60 5931 A2-70 8 20 98213720 PLUG M18X1,5X10 D23 F12 SS 3 19 90359300 O-RING 15,60X1,78 (2062) 3 18 36724501 OUTLET VALVE S.53 SS 3 17 36211151 VALVE CAGE 3 16 94733300 SPRING D.6.2x10.5 S.S. 3 15 36211276 SPHERICAL VALVE 3 14 53211166 VALVE SEAT - S.S. 3 13 90367400 O-RING D. 12X2 (120-20) 3 12 59040109 PISTON D.22X42 3 11 96690500 WASHER D.5X11.5x0.4 3 INOX+FKM58/59/63HT 10 99169000 SCREW M05X55 SPEC. A2-70 3 9 98222900 PLUG M24X1,5X17 S.S. 3 8 90384700 O-RING 20,29X2,62(3081) 3 7 36713001 VALVE ASSY (63 SS) 3 6 90384100 O-RING 17,12X2,62 (3068) 3 5 36203666 VALVE SEAT STAINLESS (63SS) 3 4 36200176 VALVE PLATE 3 3 94737300 SPRING D.9.4X14.8 - S.S. 3 2 36202551 VALVE CAGE 3 1 59122336 MANIFOLD FOR PISTON D. 22 1 S.S. SS3C2021 3/21/2026 Page 5 - 5 Copyright INTERPUMP GROUP S.P.A
