PratissoliIndustrial Pumps
Pratissoli Pump R
20 sizes & variants — select below · Flow US GPM 7.9–45 · Power HP 16–55 · Power KW 11.7–40.4 · Flow L Min 30–170
The Pratissoli PUMP SS7030 R is an industrial gear pump delivering 30 L/min at 200 bar, with 11.7 kW power rating and 1450 rpm operation. Compact at 387 mm length, it suits high-pressure hydraulic and processing…
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
From the manufacturer's datasheet

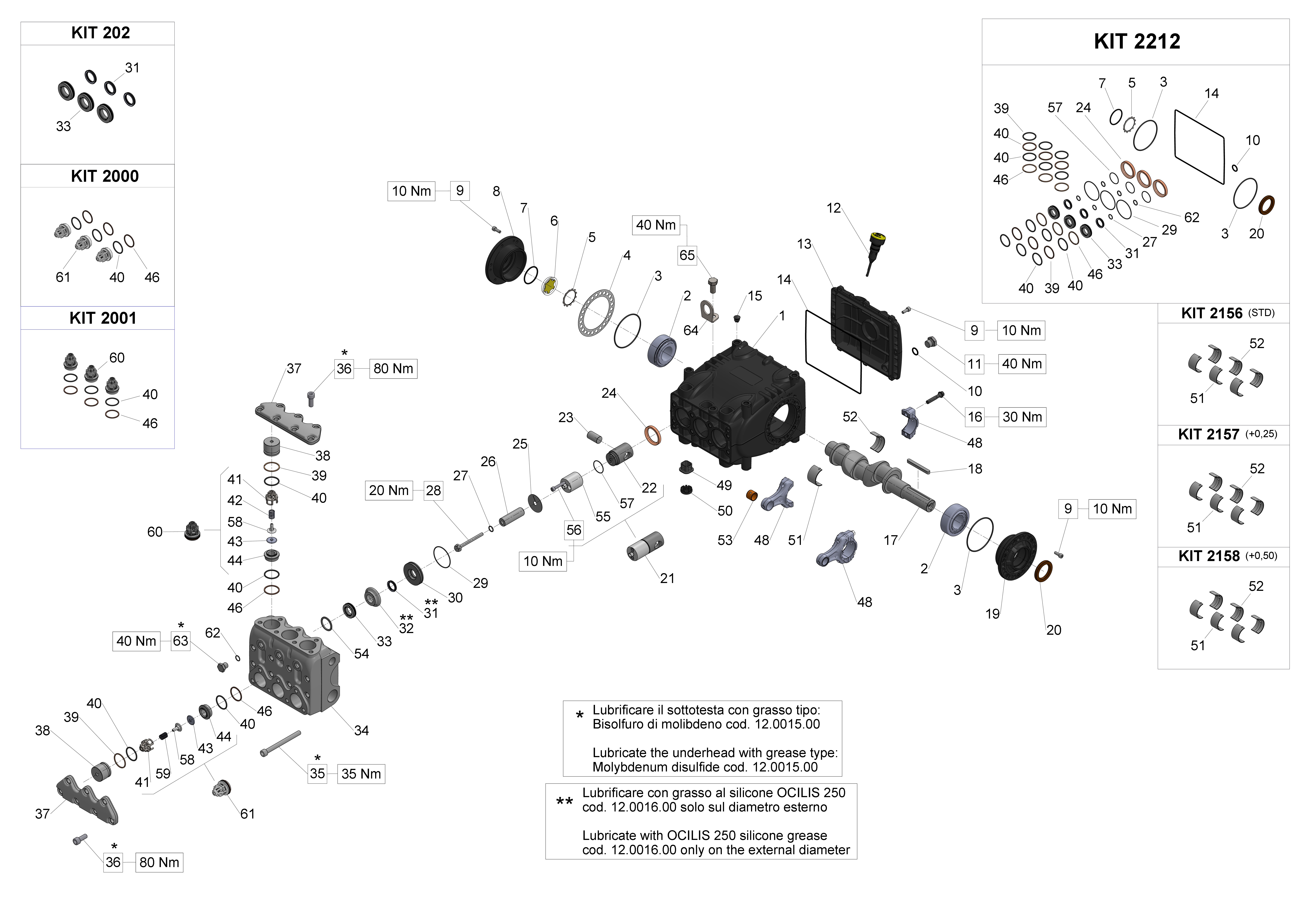

PratissoliShaft Type
Male shaft (key) - GAS
Flange Option
Male shaft (key) + flange A - GAS
Seal Kit
KIT 238 SEALS D.20 CW
Connecting Rod Bushings
KIT 2156, KIT 2157 (+0.25), KIT 2158 (+0.50)
Crankcase
Part no. 70010022
Taper Roller Bearing
2 x 33207/Q
High Pressure Seal
D.20X35X9
Low Pressure Seal
D.20X26.15 L.P. (66HT)
Features
- Available with male shaft (key) or male shaft (key) with flange A
- Includes oil sight glass and oil dipstick
- Equipped with taper roller bearings
- Multiple connecting rod bushing options for wear compensation
- Stainless steel plug G 3/8
Typical applications
Industrial pressure cleaningHydraulic motor mounting (with flange option)High pressure water jetting
Select a size
Showing 20 / 20 variants — scroll the table for more
| Part No (MPN)SN7037 | 3G SKU3G-ITP-00784 | Flow US GPM9.8 | Power HP25 | Power KW18.4 | Flow L Min37 | |
| Part No (MPN)SN7045 | 3G SKU3G-ITP-00786 | Flow US GPM11.9 | Power HP25 | Power KW18.4 | Flow L Min45 | |
| Part No (MPN)SN7061 | 3G SKU3G-ITP-00789 | Flow US GPM16.1 | Power HP25 | Power KW18.4 | Flow L Min61 | |
| Part No (MPN)SN7070 | 3G SKU3G-ITP-00792 | Flow US GPM18.5 | Power HP25 | Power KW18.4 | Flow L Min70 | |
| Part No (MPN)SN7070F | 3G SKU3G-ITP-00794 | Flow US GPM18.5 | Power HP25 | Power KW18.4 | Flow L Min70 | |
| Part No (MPN)SN7091 | 3G SKU3G-ITP-00797 | Flow US GPM26.4 | Power HP25 | Power KW18.4 | Flow L Min100 | |
| Part No (MPN)SN71106 | 3G SKU3G-ITP-00800 | Flow US GPM28 | Power HP55 | Power KW40.4 | Flow L Min106 | |
| Part No (MPN)SN71153 | 3G SKU3G-ITP-00806 | Flow US GPM32.2 | Power HP51 | Power KW37.5 | Flow L Min122 | |
| Part No (MPN)SN71170 | 3G SKU3G-ITP-00811 | Flow US GPM45 | Power HP49 | Power KW36 | Flow L Min170 | |
| Part No (MPN)SN7193 | 3G SKU3G-ITP-00817 | Flow US GPM24.5 | Power HP51 | Power KW37.5 | Flow L Min93 | |
| Part No (MPN)SS7030 | 3G SKU3G-ITP-00856 | Flow US GPM7.9 | Power HP16 | Power KW11.7 | Flow L Min30 | |
| Part No (MPN)SS7037 | 3G SKU3G-ITP-00857 | Flow US GPM9.7 | Power HP19 | Power KW13.9 | Flow L Min37 | |
| Part No (MPN)SS7045 | 3G SKU3G-ITP-00858 | Flow US GPM11.9 | Power HP24 | Power KW17.6 | Flow L Min45 | |
| Part No (MPN)SS7061H | 3G SKU3G-ITP-00861 | Flow US GPM16.1 | Power HP24 | Power KW17.6 | Flow L Min61 | |
| Part No (MPN)SS7070H | 3G SKU3G-ITP-00866 | Flow US GPM18.5 | Power HP24 | Power KW17.6 | Flow L Min70 | |
| Part No (MPN)SS71106 | 3G SKU3G-ITP-00876 | Flow US GPM28 | Power HP55 | Power KW40.4 | Flow L Min106 | |
| Part No (MPN)SS71153 | 3G SKU3G-ITP-00885 | Flow US GPM32.2 | Power HP51 | Power KW37.5 | Flow L Min122 | |
| Part No (MPN)SS71170 | 3G SKU3G-ITP-00894 | Flow US GPM44.9 | Power HP44.2 | Power KW32.5 | Flow L Min170 | |
| Part No (MPN)SS7193 | 3G SKU3G-ITP-00902 | Flow US GPM24.5 | Power HP48 | Power KW35.3 | Flow L Min93 | |
| Part No (MPN)W1570 | 3G SKU3G-ITP-01660 | Flow US GPM18.5 | Power HP27 | Power KW19.85 | Flow L Min70 |
Not sure this is the right part? Get a recommendation.
Need installation or engineering help?
Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineerAsk a question
Frequently Asked Questions
What are the available shaft configurations?
The pump is available with a male shaft (key) or a male shaft (key) with flange A for hydraulic motor mounting.
What is the part number for the crankcase?
The crankcase part number is 70010022.
Are there different connecting rod bushing sizes?
Yes, there are standard, +0.25, and +0.50 oversize bushings available.
