Interpump PUMP W100140 DX

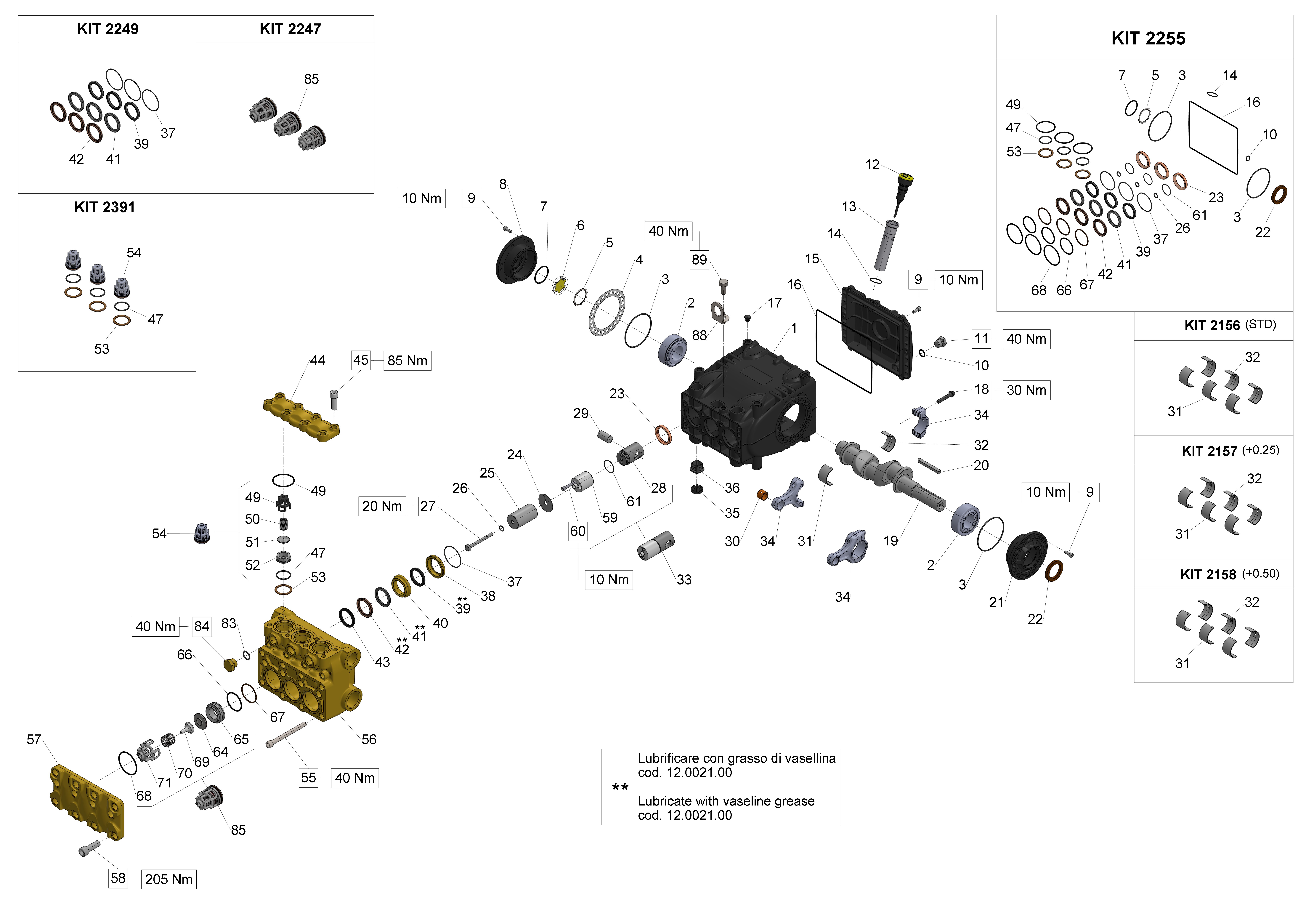

W100140 TECHNICAL INFORMATION Flow (L/min) 142 Flow (US Gpm) 37,5 Rotation regime (rpm) 1450 Pressure (MPa) 10 Pressure (bar) 100 Pressure (psi) 1450 Power (hp) 36,9 Power (kW) 27 Overall dimensions L x l x h (mm) 410,5x340,5x253,5 Weight (kg) 42 W100140 3/21/2026 Page 1 - 6 Copyright INTERPUMP GROUP S.P.A W100140 Documents Male shaft (key) - GAS W100140 3/21/2026 Page 2 - 6 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS W100140 3/21/2026 Page 3 - 6 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes KIT2391 34239101 1 KIT2255 34225501 KIT 2255 CPL.SEAL D.40 1 KIT2249 34224901 KIT 2249 PACKING D.40 1 KIT2247 34224701 KIT 2247 INLET VALVE 1 KIT2158 34215801 KIT 2158*CONROD BUSHINGS 1 +0,50 KIT2157 34215701 KIT 2157*CONROD BUSHINGS 1 +0,25 KIT2156 34215601 KIT 2156*CONROD BUSHING 1 89 99426600 VITE TE M12X25-UNI5739 ZINC. 1 88 71223074 STAFFA DI SOLLEVAMENTO 1 85 36720701 INLET VALVE KT 3 84 98218400 1 83 90384100 O-RING 17,12X2,62 (3068) 1 71 36204505 VALVE CAGE SS (71 SERIES) 3 70 94754000 SPRING D.24.7X27 3 69 36208651 INNER VALVE GUIDE 3 68 90389400 O-RING D.53.65x2.62 NBR 90 SH 3 67 90523300 ANTI-EXTR.RING D43.5x48x1.5 3 66 90388000 O-RING D.42.52X2.62 3 65 36211666 INLET VALVE SEAT 3 64 36208502 SPHERICAL VALVE COMPLETE 3 61 90352800 O-RING D. 29.00x1.50 NBR 70SH 3 60 99192500 SCREW M06X35 5931 A2-70 6 59 70050266 PISTON GUIDE ROD 3 58 99485000 SCREW M14X40 UNI5931 12.9 8 DACR. 57 70227441 1 56 70127741 1 55 99381600 SCREW M10X110 UNI5931 8.8 4 54 36714301 INTAKE/DELIVERY VALVE (70HT) 3 53 90517850 ANELLO ANTIEST. 31.0x40.0x1.7 3 (S.66) 52 36204866 VALVE SEAT (70HT) 3 51 36201076 VALVE PLATE 3 50 94745000 SPRING D. 16X27,5 3 49 90388550 O-RING D.45.69x2.62 NBR 90 3 SH. W100140 3/21/2026 Page 4 - 6 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes 49 36204705 VALVE CAGE S.S. (70 SERIES) 3 47 90386500 O-RING 29,82X2,62 (3118) 3 45 99429500 SCREW M12X35 UNI5931 12.31 8 DACR. 44 70227641 1 43 71100351 HEAD RING D.40 3 42 90283200 SEAL D. 40X55X7.5/4.5 H.P. 3 41 90283800 RESTOP RING D.40X55X8/4.5 3 40 70224970 INTERMEDIATE RING D. 40 3 39 90282800 40 MM LOW PRESSURE SEAL KS 3 38 70082170 PACKING RETAINER D. 40 3 SERIES KT 37 90362600 O-RING D. 50,52X1,78 (2200) 3 36 70222551 CRANKCASE PLUG 6 35 71225951 PLUG CAP 3 34 70030501 CONNECTING ROD COMPLETE 3 33 70606801 PISTON GUIDE ASSY 3 32 90922500 LOWER HALF CONROD BUSHING 3 +0.50 (BIG END) S.70 32 90922400 LOWER HALF CONROD BUSHING 3 +0.25 (BIG END) S.70 32 90922300 LOWER HALF CONROD BUSHING 3 (BIG END) S.70 31 90922200 UPPER HALF CONROD BUSHING 3 +0.5 (BIG END) S.70 31 90922100 UPPER HALF CONROD BUSHING 3 +0.25 (BIG END) S.70 31 90922000 UPPER HALF CONROD BUSHING 3 (BIG END) S.70 30 90910000 CONROD BUSHING (SMALL END) 3 S.70 29 97742000 GUDGEON PIN D.18X36 3 28 70050115 PISTON GUIDE T.N. 3 27 70224136 PISTON BOLT 3 26 90358400 O-RING D.10,82X1,78(2043)90SH 3 25 70041209 PISTON D. 40X63 3 24 96709900 WASHER D.10X45 3 23 90167700 OIL SEAL D.36X47X7 3 W100140 3/21/2026 Page 5 - 6 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) - GAS Pos. Code Description Qty Notes 22 90166800 OIL SEAL D.35X52X7 1 21 70150022 BEARING COVER (PTO SIDE) 1 20 91490000 KEY 8h9X7X70 UNI 6604/A 1 19 70020635 CRANKSHAFT C.26 1 18 99312300 CONN.ROD BOLT M8X1X42 6 17 98200500 PLUG D. 15 5 16 90394200 OR D.190.17X2.62 NBR 70SH 1 15 70160622 CRANKCASE COVER KT 1 14 90360400 O-RING 25,12X1,78 (2100) 1 13 72210695 DIP STICK TUBE 1 12 98211500 OIL DIPSTICK D.21,5X70 1 11 98210050 PLUG G3/8x13 TE22 1 10 90383300 O-RING 13,95X2,62 (3056) 1 9 99185400 SCREW M6X16 UNI 5931 8.8 Z. 20 8 70150122 BEARING COVER (OIL GLASS 1 SIDE) 7 90387700 O-RING 39,34X2,62 (3156) 1 6 70211801 OIL SIGHT GLASS 1 5 90075600 CIRCLIP D.45 (ZJ45) 1 4 70220381 SHIM 0.25 MM. 1 4 70220081 SHIM 0.1 MM. 1 3 90391500 O-RING D. 80.6X2.62 (3318) 2 2 91847700 TAPER ROLLER BEARING 2 33207/Q 1 70010022 CRANKCASE 1 W100140 3/21/2026 Page 6 - 6 Copyright INTERPUMP GROUP S.P.A
