Interpump PUMP SWS71170 DX

The Interpump PUMP SWS71170 DX is an industrial pump delivering 170 L/min at 100 bar, powered by a 32.5 kW motor operating at 900 rpm. It suits high-pressure hydraulic and fluid-handling applications requiring…

SKU 3G-ITP-00964

Also listed as: SWS71170000 · SWS71170 000

Brand

Interpump

Item

PUMP SWS71170 DX

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Interpump

Flow Rate

170 L/min

Pressure

100 bar

Power

32.5 kW

Speed

900 RPM

Weight

68 kg

Dimensions

526 mm

Power

44.2 HP

Flow (US)

44.9 GPM

Pressure

10 MPa

Pressure

1450 PSI

Datasheet Content

SWS71170




TECHNICAL INFORMATION
Flow (L/min)                        170
Flow (US Gpm)                       44,9
Rotation regime (rpm)               900
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          44,2
Power (kW)                          32,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SWS71170                                            3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
SWS71170

     Documents

Male shaft (key) - GAS




SWS71170                          3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




SWS71170                              3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2443   34244301                                   1
KIT2442   34244201                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
70        98243600                                   1
69        95822000                                   3
68        71224922                                   1
67        71213856                                   3
66        71213756                                   3
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3

54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3




SWS71170                                                         3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                 Qty Notes

45     36204505         VALVE CAGE SS (71 SERIES)   6


44     90388900                                     12
43     90525000                                     6
42     71223766                                     6
41     71223636                                     2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99450050                                     8
38     71127536                                     1
37     90276800                                     3
36     71212366                                     3
35     90246000                                     3
34     90389100                                     3
33     71211866                                     3
32     90282900                                     3
31     71211966                                     3
30     90079700                                     3
29     71223856                                     3
28     90367100                                     3
27     71040509                                     3
26     96714000                                     3
25     90167800                                     3
24     97743000                                     3
23     71050715                                     3
22     90060600                                     1
21     71606601                                     3
20     90170000                                     1
19     71150022                                     1
18     91500000                                     1
17     71020035                                     1
16     99313800                                     6
15     98206000                                     4
14     90400000                                     1
13     71160022                                     1
12     98212000                                     1
11     98218100                                     4
10     90384100         O-RING 17,12X2,62 (3068)    4
9      99186800                                     20
8      71150122                                     1
7      90387700         O-RING 39,34X2,62 (3156)    1
6      70211801         OIL SIGHT GLASS             1




SWS71170                                                        3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description           Qty Notes

5      90075600         CIRCLIP D.45 (ZJ45)   1
4      70220381         SHIM 0.25 MM.         1
4      70220081         SHIM 0.1 MM.          1
3      90391800                               2
2      91859000                               2
1      71010022                               1




SWS71170                                                  3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Interpump Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the Interpump SWS71170 DX pump worldwide?

3G Electric is an authorised distributor. Order the SWS71170 DX online and we handle logistics, customs, and delivery globally. Lead time on request.

What is the flow rate and pressure rating of the SWS71170 DX?

The pump delivers 170 L/min (44.9 US gpm) at 100 bar (10 MPa, 1450 psi) with a 32.5 kW motor running at 900 rpm.

What applications suit the Interpump SWS71170 DX?

Ideal for high-pressure hydraulic systems and industrial fluid-handling applications. The compact 526 mm length and 68 kg weight fit confined equipment bays while meeting demanding pressure and flow requirements.

Used in

Common applications for Interpump

Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service

Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry

Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks

Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines

Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official SWS71170 parts list — 14 parts, 14 available in catalog

Official Parts List

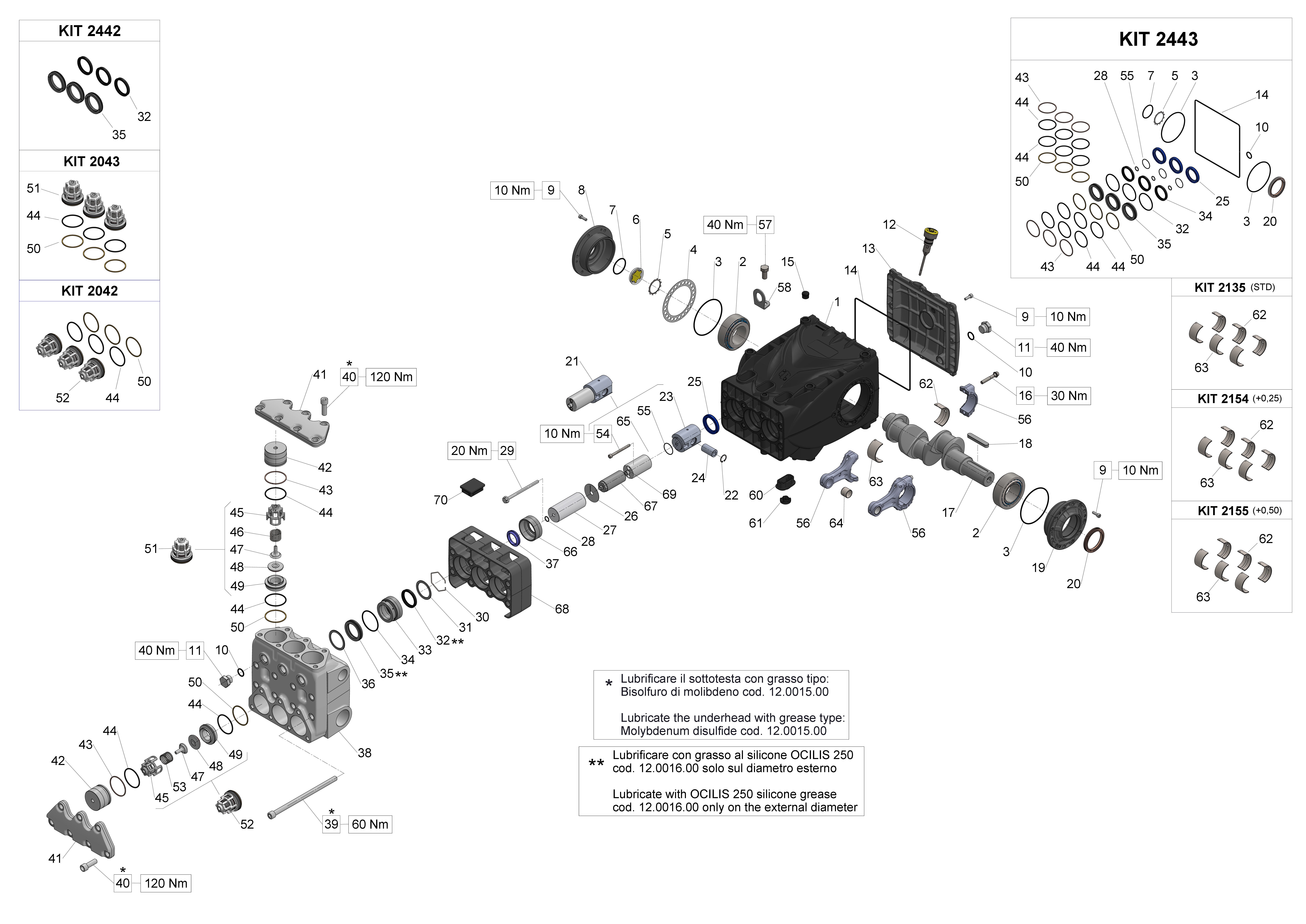

SWS71170 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220081×1Available

70220381×1Available

90075600×1Available

OIL SIGHT GLASS SWS71170

70211801×1Available

View

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×4Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SWS71170 parts list — Industrial Pumps (Stainless Steel Versions Series 53 SW1)

Recommended Spare Parts

⚙

Valves

INNER VALVE GUIDE

36208651

⚙

Spare Parts

SPRING D.24.7X27

94754000

⚙

Spare Parts

OIL SIGHT GLASS

70211801

Accessories

SCREW M12X35 UNI5931 12.31 DACR

99429500

⚙

Accessories

PLUG CAP

71225951

⚙

Spare Parts

SHIM 0.25 MM

70220381

Spare Parts

O-RING 17,12X2,62 (3068)

90384100

⚙

Spare Parts

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100

Valves

VALVE CAGE SS (71 SERIES)

36204505

⚙

Spare Parts

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200

⚙

Spare Parts

STAFFA DI SOLLEVAMENTO

71223074

⚙

Accessories

CIRCLIP D.45 (ZJ45)

90075600
