Interpump PUMP C2W2013 DX

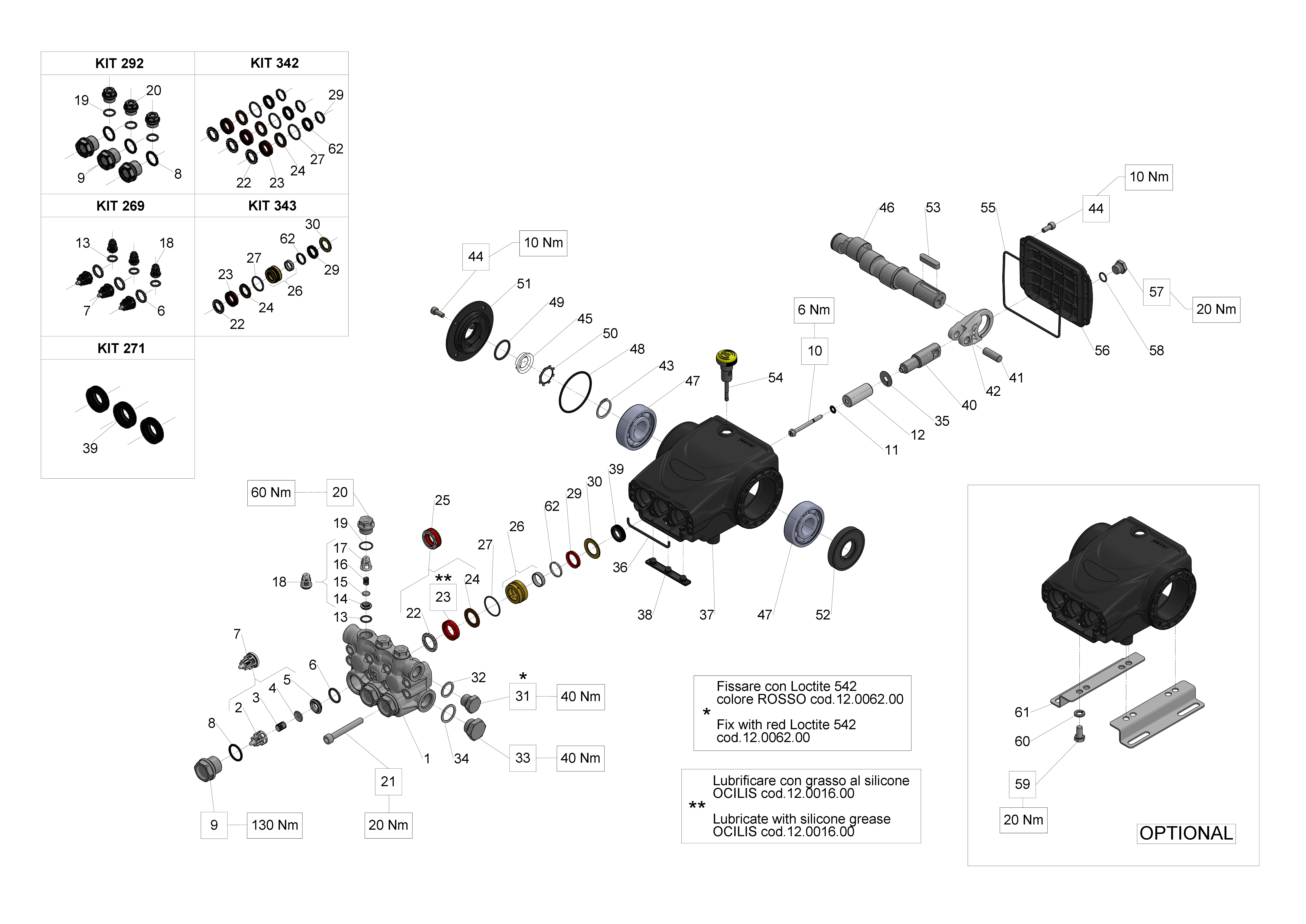

C2W2013 TECHNICAL INFORMATION Flow (L/min) 13 Flow (US Gpm) 3,43 Rotation regime (rpm) 1450 Pressure (MPa) 20 Pressure (bar) 200 Pressure (psi) 2900 Power (hp) 6,8 Power (kW) 5 Overall dimensions L x l x h (mm) 241,5x215x129,5 Weight (kg) 7 C2W2013 3/21/2026 Page 1 - 5 Copyright INTERPUMP GROUP S.P.A C2W2013 Documents Male shaft (key) C2W2013 3/21/2026 Page 2 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) C2W2013 3/21/2026 Page 3 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes KIT343 34034301 KIT 343 CPL. SEAL D. 18 C2W 1 KIT342 34034201 KIT 342 PACKING D. 18 C2W 1 KIT292 34029201 KIT 292 VALVE PLUGS (NICK.)59 1 S. KIT271 34027101 KIT 271 OIL SEAL D.15 1 58/59 SERIES KIT269 34026901 KIT 269 INTAKE/DELIVERY 1 VALVES 62 58100151 ANELLO DI TESTA D.18 LP (CW) 3 61 50200074 PUMP FOOT 2 60 96701600 WASHER 8,4 4 59 99303700 SCREW M 8x16-5739 4 58 90358500 O-RING 10,82X1,78 (2043) 1 57 98204250 PLUG G1/4"x12 1 56 58160022 REAR CRANKCASE COVER 1 55 90392550 O-RING D.113.97X2.62 1 54 98210500 OIL DIPSTICK G3/8x51 D.7 1 53 91489200 KEY 8(h9)X7X35 UNI 6604/A 1 52 90164100 OIL SEAL D.25X62X10 1 51 58150122 COPERCHIO LATERALE 1 50 90067100 CIRCLIP ZJ30 1 49 90385900 O-RING 25,07X2,62 (3100) 1 48 90389800 O-RING 56,82X2,62 (3225) 1 47 91833100 BALL BEARING 6305 SKF 2 46 63021635 CRANKSHAFT C.12 1 45 53210851 OIL LEVEL GAUGE 1 44 99183700 SCREW M 6x14 UNI 5931 8 43 90063500 CIRCLIP D. 25 UNI 7435 1 42 58030022 CONNECTING ROD 3 41 97734000 CONNECTING-ROD PIN 3 D.10X29,5 40 58050066 PISTON GUIDE 3 39 90156550 OIL SEAL D.15X24X5/7 3 38 58210451 PROTECTION 1 37 58010022 PUMP CRANKCASE 1 36 58210582 SPONGE GASKET D.3X94 1 35 96699000 WASHER D.7.5X23X0.5 3 34 96751400 WASHER 21,5X27X1,5 1 33 98217900 PLUG G 1/2X10 NICKEL 1 32 96738000 WASHER 17,5X23X1,5 1 C2W2013 3/21/2026 Page 4 - 5 Copyright INTERPUMP GROUP S.P.A Illustration Male shaft (key) Pos. Code Description Qty Notes 31 98209900 PLUG G. 3/8X13 NICKEL 1 30 58210870 RING FOR SEAL D.18 3 29 90265030 PACKING D. 18,0x24x5 LP CW 3 27 90360600 O-RING 26,70X1,78 (2106) 3 26 58605801 PACKING RETAINER+SLEEVE 3 D.18 25 90265530 PACKING D. 18,0x28x10 HP CW 3 24 90511000 ANTI-EXTR.RING D.18X28X2 3 23 90265330 PACKING D. 18,0x28x6/3,7 HP 3 CW 22 66100351 HEAD RING D.18 H.P. 3 21 99317500 SCREW M 8x60 UNI 5931 8 20 98213750 PLUG M18X1,5X10 D.23 (NICK.) 3 19 90359300 O-RING 15,60X1,78 (2062) 3 18 36719301 OUTLET VALVE 3 17 36211151 VALVE CAGE 3 16 94733300 SPRING D.6.2x10.5 S.S. 3 15 36211276 SPHERICAL VALVE 3 14 36211366 VALVE SEAT 3 13 90367400 O-RING D. 12X2 (120-20) 3 12 58040209 PISTON D.18X42 3 11 96690500 WASHER D.5X11.5x0.4 3 INOX+FKM58/59/63HT 10 99169000 SCREW M05X55 SPEC. A2-70 3 9 98222500 VALVE CAP M24X1,5X17 NICKEL 3 8 90384700 O-RING 20,29X2,62(3081) 3 7 36711501 INTAKE/DELIVERY VALVE 3 6 90384100 O-RING 17,12X2,62 (3068) 3 5 36200366 VALVE SEAT 3 4 36200176 VALVE PLATE 3 3 94737600 SPRING D. 9,4X14,8 3 2 36202551 VALVE CAGE 3 1 58120836 MANIFOLD FOR PISTON D. 18 1 C2W C2W2013 3/21/2026 Page 5 - 5 Copyright INTERPUMP GROUP S.P.A
