OMRON Timer: DIN-Rail Mounted, 24 to 240V AC/24 to 240V DC, 5 A - DIN-Rail Mounted Relays
OMRONDIN-Rail Mounted Relays

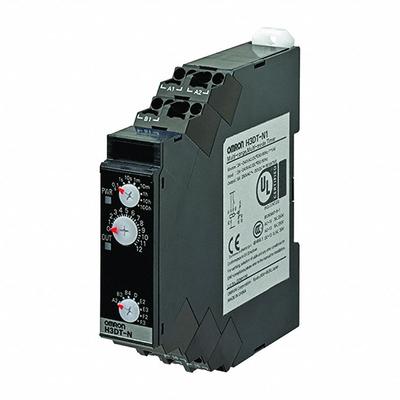

OMRON Timer: DIN-Rail Mounted, 24 to 240V AC/24 to 240V DC, 5 A

The OMRON H3DT-N2 AC/DC24-240 is a DIN-Rail Mounted Timer Relay with a cumulative (interval) delay function. It accepts an input voltage of 24 to 240V DC and features contact ratings of 5 A at 250V AC (resistive…

SKU 3G-OTH-38284

Brand
OMRON
Item
Timer: DIN-Rail Mounted, 24 to 240V AC/24 to 240V DC, 5 A
Category
DIN-Rail Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
H3DT-N2 AC/DC24-240
Type
24 to 240V AC/24 to 240V DC, 5 A
Input Voltage
24 to 240V DC
Delay Function
Cumulative (Interval)
Pins/Terminals
10
Contact Rating (AC)
5 A @ 250V (Resistive Load)
Contact Rating (DC)
5A @ 30V (Resistive Load)
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON H3DT-N2 AC/DC24-240 is a DIN-Rail Mounted Timer Relay with a cumulative (interval) delay function. It accepts an input voltage of 24 to 240V DC and features contact ratings of 5 A at 250V AC (resistive load) and 5 A at 30V DC (resistive load). This 10-pin/terminal device is designed for industrial timing applications.

Used in

Common applications for OMRON
Automotive assembly lines — OMRON G2RV-ST500 AC/DC24 slim relays for compact control panel switching
Packaging machinery — OMRON E2E-X5Y1-M1 inductive proximity sensors for position detection of metal parts
HVAC systems — OMRON LY4-DC12 general-purpose relays for fan and compressor control
High-temperature ovens — OMRON E32-D51 fiber-optic cables for non-contact temperature sensing
Material handling — OMRON D4CC3002 limit switches for conveyor belt end-of-travel detection
Machine tool safety — OMRON TZ-1GV22 snap-action switches for interlock and guard monitoring

OMRON Products

3G Electric supplies OMRON din-rail mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
