OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V AC, 4PDT - Socket-Mounted Relays
OMRONSocket-Mounted Relays

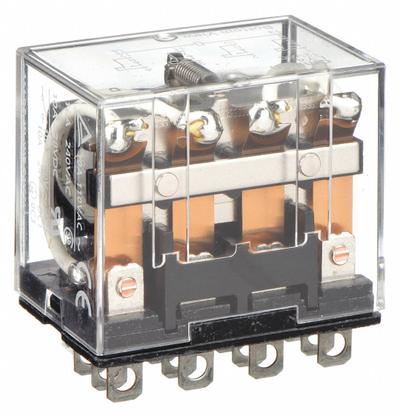

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V AC, 4PDT

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a 4PDT contact configuration, a 12V AC coil, and a 10 A current rating, with an operating…

SKU 3G-OTH-36561

Brand
OMRON
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V AC, 4PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
LY4-AC12
Series
LY Series
Type
4PDT
AC
12V
Base Type
Square
Pin Shape
Flat
Current Rating
10 A
Mounting Style
Plug-In
Pins/Terminals
14
Operating Current
5 A at 24V DC (Inductive Load)
Electrical Connection
Plug-In
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a 4PDT contact configuration, a 12V AC coil, and a 10 A current rating, with an operating current of 5 A at 24V DC for inductive loads. This relay has 14 pins/terminals and is designed for industrial control applications.
