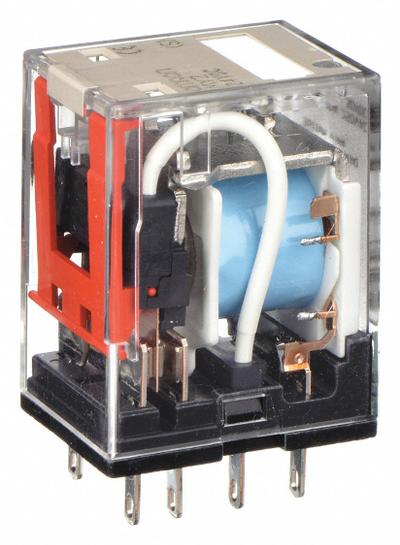

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT - Socket-Mounted Relays
OMRONSocket-Mounted Relays

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT

The OMRON MY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and round pins. This DPDT relay operates on 24V DC and has an operating current of 5 A at 250V AC for resistive loads…

SKU 3G-OTH-38458

Brand
OMRON
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
MY2IN-DC24(S)
Series
MY Series
Type
DPDT
DC
24V
Base Type
Square
Pin Shape
Round
Current Rating
10 A
Mounting Style
Plug-In
Operating Current
5 A at 250V AC (Resistive Load)
Electrical Connection
Plug-In
Pins/Terminals (MPN MY2IN-DC24(S))
8
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON MY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and round pins. This DPDT relay operates on 24V DC and has an operating current of 5 A at 250V AC for resistive loads. It features 8 pins/terminals and is designed for plug-in electrical connection.
