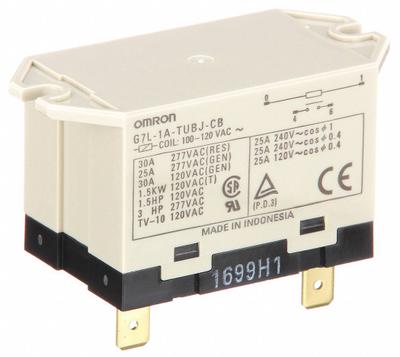

OMRON Enclosed Power Relay: Surface (Top Flange) Mounted, 30 A Current Rating - Surface-Mounted Relays
OMRONSurface-Mounted Relays

OMRON Enclosed Power Relay: Surface (Top Flange) Mounted, 30 A Current Rating

The OMRON G7L Series Enclosed Power Relay is a surface (top flange) mounted relay with a square base and quick-connect electrical connection. It features a 30 A operating current and is rated for 100/120V AC, with an…

SKU 3G-OTH-36880

Brand
OMRON
Item
Enclosed Power Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
G7L-1A-TUBJ-CB-AC100/120
Series
G7L Series
Type
SPST-NO
AC
100/120V
Base Type
Square
Current Rating
30 A
Mounting Style
Top Flange
Operating Current
30 A
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON G7L Series Enclosed Power Relay is a surface (top flange) mounted relay with a square base and quick-connect electrical connection. It features a 30 A operating current and is rated for 100/120V AC, with an SPST-NO contact configuration (MPN G7L-1A-TUBJ-CB-AC100/120).
