OMRON General Purpose Relay: Socket Mounted - Socket-Mounted Relays
OMRONSocket-Mounted Relays

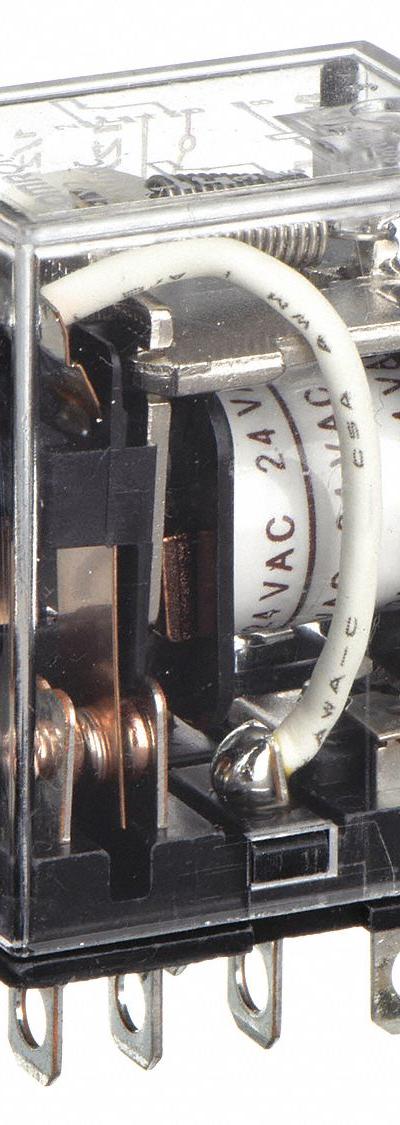

OMRON General Purpose Relay: Socket Mounted

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 24V AC coil, and quick-connect electrical connections. The…

SKU 3G-OTH-37334

Brand
OMRON
Item
General Purpose Relay: Socket Mounted
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Brand
OMRON
Series
LY Series
Base Type
Square
Pin Shape
Flat
Mounting Style
Plug-In
Operating Current
10 A at 110V AC (Resistive Load)
Electrical Connection
Quick-Connect
Manufacturer Part Number
LY2-AC24
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON LY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 24V AC coil, and quick-connect electrical connections. The relay is rated for 10 A at 110V AC (resistive load) and has 8 pins/terminals.

Used in

Common applications for OMRON
Automotive assembly lines — OMRON G2RV-ST500 AC/DC24 slim relays for compact control panel switching
Packaging machinery — OMRON E2E-X5Y1-M1 inductive proximity sensors for position detection of metal parts
HVAC systems — OMRON LY4-DC12 general-purpose relays for fan and compressor control
High-temperature ovens — OMRON E32-D51 fiber-optic cables for non-contact temperature sensing
Material handling — OMRON D4CC3002 limit switches for conveyor belt end-of-travel detection
Machine tool safety — OMRON TZ-1GV22 snap-action switches for interlock and guard monitoring

OMRON Products

3G Electric supplies OMRON socket-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

You might also need

Burners & Combustion →Pumps & Compressors →Spare Parts →All Products →

Similar products

Matched by specification & description
OMRON General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V AC, SPDT, 8 Pins/Terminals (MPN LY1-AC24). Key specifications — Brand: OMRON; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Quick-Connect; Manufacturer Part Number: LY1-AC24; Operating Current: 15 A at 110V AC (Resistive Load); Series: LY Series.
OMRON
OMRON General Purpose Relay: Socket Mounted, 15 A Current Rating, 24V AC, SPDT, 8 Pins/Terminals (MPN LY1-AC24). Key specifications — Brand: OMRON; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Quick-Connect; Manufacturer Part Number: LY1-AC24; Operating Current: 15 A at 110V AC (Resistive Load); Series: LY Series.

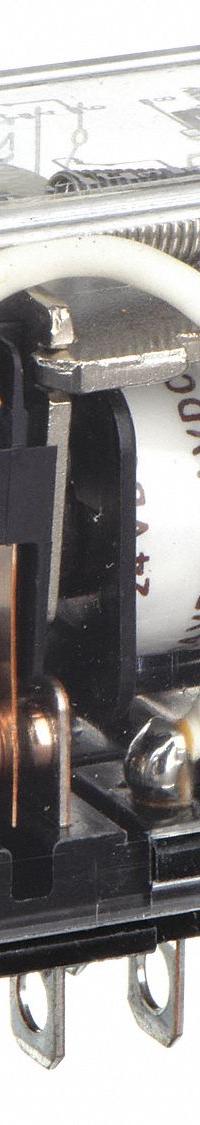

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, DPDT, 8 Pins/Terminals (MPN LY2-DC24). Key specifications — Brand: OMRON; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Quick-Connect; Manufacturer Part Number: LY2-DC24; Operating Current: 10 A at 110V AC (Resistive Load); Series: LY Series.
