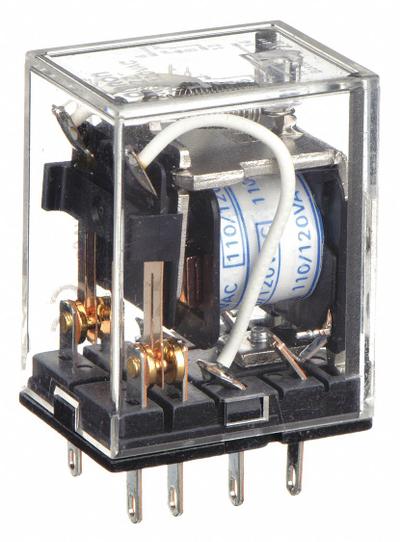

OMRON General Purpose Relay: Socket Mounted, 5 A Current Rating, 120V AC, DPDT - Socket-Mounted Relays
OMRONSocket-Mounted Relays

OMRON General Purpose Relay: Socket Mounted, 5 A Current Rating, 120V AC, DPDT

The OMRON MY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 5 A current rating at 120V AC, and an operating current of 2…

SKU 3G-OTH-40339

Brand
OMRON
Item
General Purpose Relay: Socket Mounted, 5 A Current Rating, 120V AC, DPDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
MY2Z-AC110/120
Series
MY Series
Type
DPDT
AC
120V
Base Type
Square
Pin Shape
Flat
Current Rating
5 A
Mounting Style
Plug-In
Pins/Terminals
8
Operating Current
2 A at 24V DC (Inductive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON MY Series General Purpose Relay is a socket-mounted, plug-in relay with a square base and flat pins. It features a DPDT contact configuration, a 5 A current rating at 120V AC, and an operating current of 2 A at 24V DC for inductive loads. The relay uses quick-connect electrical connections and is supplied with 8 pins/terminals.
