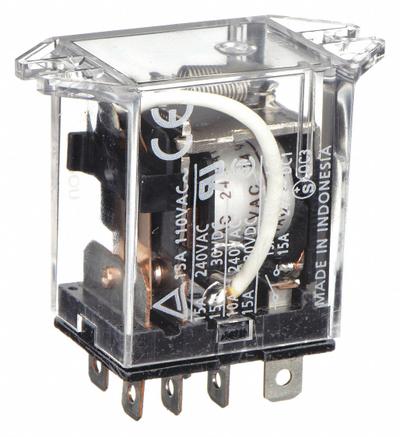

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 15 A Current Rating, 24V AC - Surface-Mounted Relays
OMRONSurface-Mounted Relays

OMRON Flange Mount Relay: Surface (Top Flange) Mounted, 15 A Current Rating, 24V AC

The OMRON LY Series Flange Mount Relay is a surface (top flange) mounted relay with an octal base and plug-in terminal electrical connection. It features a DPDT contact configuration, a 15 A current rating, and…

SKU 3G-OTH-36480

Brand
OMRON
Item
Flange Mount Relay: Surface
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
LY1F-AC24
Series
LY Series
Type
DPDT
AC
24V
Base Type
Octal
Current Rating
15 A
Mounting Style
Top Flange
Operating Current
10 A at 110V AC (Inductive Load)
Electrical Connection
Plug-In Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON LY Series Flange Mount Relay is a surface (top flange) mounted relay with an octal base and plug-in terminal electrical connection. It features a DPDT contact configuration, a 15 A current rating, and operates on 24V AC. The relay has an operating current of 10 A at 110V AC (inductive load) and is identified by manufacturer part number LY1F-AC24.

Used in

Common applications for OMRON
Automotive assembly lines — OMRON G2RV-ST500 AC/DC24 slim relays for compact control panel switching
Packaging machinery — OMRON E2E-X5Y1-M1 inductive proximity sensors for position detection of metal parts
HVAC systems — OMRON LY4-DC12 general-purpose relays for fan and compressor control
High-temperature ovens — OMRON E32-D51 fiber-optic cables for non-contact temperature sensing
Material handling — OMRON D4CC3002 limit switches for conveyor belt end-of-travel detection
Machine tool safety — OMRON TZ-1GV22 snap-action switches for interlock and guard monitoring

OMRON Products

3G Electric supplies OMRON surface-mounted relays. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
