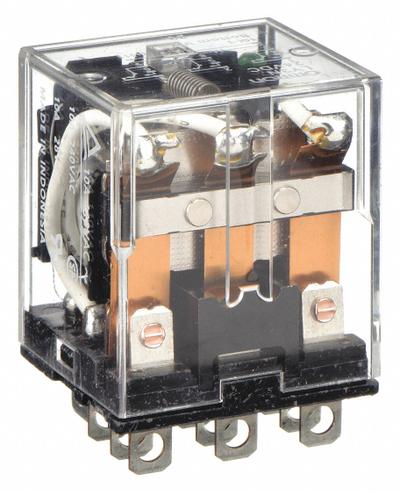

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 3PDT - Socket-Mounted Relays
OMRONSocket-Mounted Relays

OMRON General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 3PDT

The OMRON General Purpose Relay: Socket Mounted (SKU 1YCR4, MPN LY3N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 3PDT contact configuration, 11 pins/terminals, and a…

SKU 3G-OTH-38708

Brand
OMRON
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 24V DC, 3PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
LY3N-DC24
Series
LY Series
Type
3PDT
DC
24V
Base Type
Square
Pin Shape
Flat
Current Rating
10 A
Mounting Style
Plug-In
Pins/Terminals
11
Operating Current
5 A at 24V DC (Inductive Load)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON General Purpose Relay: Socket Mounted (SKU 1YCR4, MPN LY3N-DC24) is a plug-in relay from the LY Series with a square base and flat pins. It features a 3PDT contact configuration, 11 pins/terminals, and a quick-connect electrical connection. The relay operates at 24V DC with an inductive load current rating of 5 A and a general current rating of 10 A.
