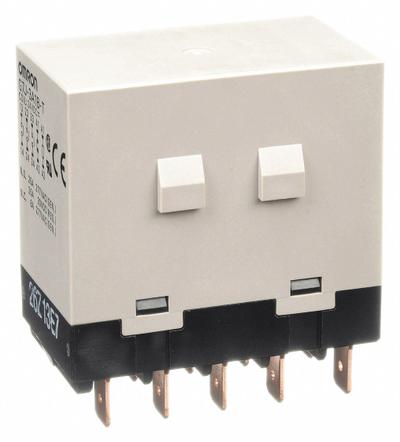

OMRON Enclosed Power Relay: Bracket Mounted, 25 A Current Rating, 24V DC - Bracket-Mounted Relays
OMRONBracket-Mounted Relays

OMRON Enclosed Power Relay: Bracket Mounted, 25 A Current Rating, 24V DC

The OMRON G7J Series Enclosed Power Relay (MPN G7J-3A1B-T-W1-DC24) is a bracket-mounted relay with a square base and W-bracket mounting style. It features a 25 A operating current at 220V AC (resistive load NO) and a…

SKU 3G-OTH-35360

Brand
OMRON
Item
Enclosed Power Relay: Bracket Mounted, 25 A Current Rating, 24V DC
Category
Bracket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
G7J-3A1B-T-W1-DC24
Series
G7J Series
Type
3PST-NO/SPST-NC
DC
24V
Base Type
Square
Current Rating
25 A
Mounting Style
W-Bracket
Operating Current
25 A at 220V AC (Resistive Load NO)
Relay Bracket Type
W-Bracket (Sold with Relay)
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON G7J Series Enclosed Power Relay (MPN G7J-3A1B-T-W1-DC24) is a bracket-mounted relay with a square base and W-bracket mounting style. It features a 25 A operating current at 220V AC (resistive load NO) and a 24V DC coil, with quick-connect electrical connections. The relay includes a 3PST-NO/SPST-NC contact configuration and is sold with the W-bracket.
