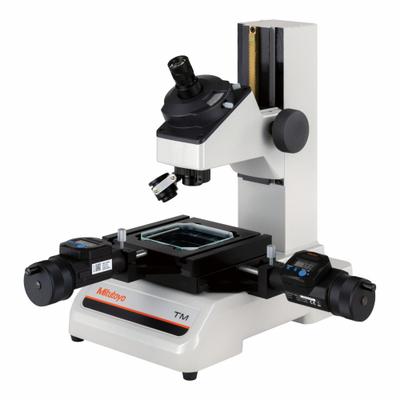

MITUTOYO Microscope: Monocular, 20X, 154 mm Optical Field of View, 8.3 in x 13.5 in - Compound Microscopes
MITUTOYOCompound Microscopes

MITUTOYO Microscope: Monocular, 20X, 154 mm Optical Field of View, 8.3 in x 13.5 in

The MITUTOYO Monocular Microscope (MPN 176-821-11A) is a compound microscope with 20X optical magnification and a maximum magnification capability of 10X. It features a working distance of 67 mm, an eyepiece…

SKU 3G-OTH-374350

Brand
MITUTOYO
Item
Microscope: Monocular, 20X, 154 mm Optical Field of View, 8.3 in x 13.5 in
Category
Compound Microscopes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MITUTOYO
Manufacturer Part Number
176-821-11A
Type
20X, 8.3 in x 13.5 in, Power Cord, 10X
Base Dimensions
8.3 in x 13.5 in
Working Distance
67 mm
Eyepiece Protractor
Yes
Optical Field Of View
154 mm
Optical Magnification
20X
Maximum Magnification Capability
10X
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MITUTOYO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MITUTOYO Monocular Microscope (MPN 176-821-11A) is a compound microscope with 20X optical magnification and a maximum magnification capability of 10X. It features a working distance of 67 mm, an eyepiece protractor, and a base measuring 8.3 in x 13.5 in. This unit includes a power cord and is designed for precision inspection tasks.

Used in

Common applications for MITUTOYO
Automotive quality control — MITUTOYO digital outside micrometers (293-676-22) for measuring shaft diameters with IP65 protection.
Aerospace inspection — MITUTOYO splash-resistant calipers (552-160-10) for measuring large components up to 18 in with IP66 rating.
Machine shop setup — MITUTOYO dial test indicators (513-473-10E) for aligning workpieces and checking runout with 0.0001 in resolution.
Medical device manufacturing — MITUTOYO U-Wave transmitters (264-621) for wireless SPC data collection from calipers in cleanroom environments.
Tool and die maintenance — MITUTOYO flexible rules (182-222) for measuring curved surfaces and inside dimensions with etched decimal scales.
Laboratory microscopy — MITUTOYO halogen bulbs (383038) as replacement lamps for TM-500 series microscopes.

MITUTOYO Products

3G Electric supplies MITUTOYO compound microscopes. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
