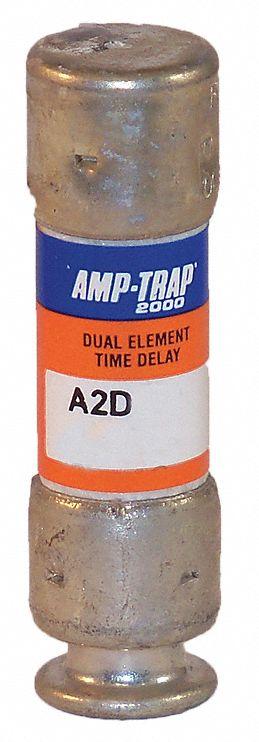

MERSEN Fuse: Class RK1, A2D-R Series, Time-Delay, 150 mA, 250 V AC, 250 V DC - Time-Delay Cylindrical Fuses
MERSENTime-Delay Cylindrical Fuses

MERSEN Fuse: Class RK1, A2D-R Series, Time-Delay, 150 mA, 250 V AC, 250 V DC

The MERSEN Fuse is a Class RK1, A2D-R Series, time-delay cylindrical fuse rated at 150 mA, 250 V AC, and 250 V DC. This non-indicating fuse is designed for overcurrent protection in industrial electrical circuits.

SKU 3G-OTH-127512

Brand
MERSEN
Item
Fuse: Class RK1, A2D-R Series, Time-Delay, 150 mA, 250 V AC, 250 V DC
Category
Time-Delay Cylindrical Fuses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MERSEN
Manufacturer Part Number
A2D15/100R
Type
A2D-R Series, Time-Delay, 150 mA, Non-Indicating
AC
250 V
DC
250 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MERSEN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN Fuse is a Class RK1, A2D-R Series, time-delay cylindrical fuse rated at 150 mA, 250 V AC, and 250 V DC. This non-indicating fuse is designed for overcurrent protection in industrial electrical circuits.

Used in

Common applications for MERSEN
Power electronics protection — MERSEN A70Q series semiconductor fuses in variable frequency drives for motor control.
Surge protection for industrial panels — MERSEN STP480D07 SPDs in three-phase 480V AC distribution boards.
Control circuit overcurrent protection — MERSEN ATM series midget fuses in PLC and instrumentation cabinets.
Power distribution in manufacturing — MERSEN FSPDB4A finger-safe blocks in motor control centers for wire management.
DC bus protection in renewable energy — MERSEN A30QS series fuses in solar inverter DC inputs.
High-voltage semiconductor protection — MERSEN A70Q series fuses in welding equipment power supplies.

MERSEN Products

3G Electric supplies MERSEN time-delay cylindrical fuses. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
