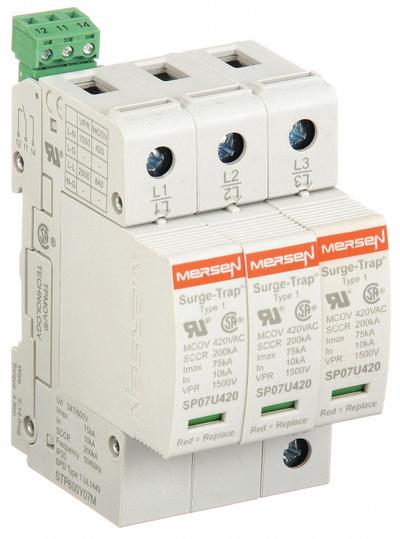

MERSEN Surge Protection Device: Three Phase, 347/600V AC Wye, 3 Poles, 4 Wires - DIN Rail Internal-Mount SPDs

MERSENDIN Rail Internal-Mount SPDs

MERSEN Surge Protection Device: Three Phase, 347/600V AC Wye, 3 Poles, 4 Wires

The MERSEN STP600Y07M is a three-phase DIN Rail internal-mount surge protective device (SPD) for 347/600V AC Wye systems with 4 wires and 3 poles. It provides L-L mode protection, a voltage protection rating of 1500V…

SKU 3G-OTH-22974

Brand

MERSEN

Item

Surge Protection Device: Three Phase, 347/600V AC Wye, 3 Poles, 4 Wires

Category

DIN Rail Internal-Mount SPDs

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

MERSEN

Manufacturer Part Number

STP600Y07M

Type

L-L/L-N, 200kA

Poles

3

Wires

4

AC Wye

347/600V

Voltage

347/600V AC Wye

Includes

Form C Dry Contact

Filtering

No

Mounting Style

DIN-Rail

Number of Wires

4 Wires

Enclosure Material

Polyethylene Terephthalate

Modes of Protection

L-L

Voltage Protection Rating

1500V (L-N)

Short Circuit Current Rating

200kA

Max. Continuing Operating Voltage

420/840 V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

MERSEN Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN STP600Y07M is a three-phase DIN Rail internal-mount surge protective device (SPD) for 347/600V AC Wye systems with 4 wires and 3 poles. It provides L-L mode protection, a voltage protection rating of 1500V (L-N), a short circuit current rating of 200kA, and a max. continuing operating voltage of 420/840 V AC. This SPD includes a Form C dry contact and is housed in a polyethylene terephthalate enclosure.
