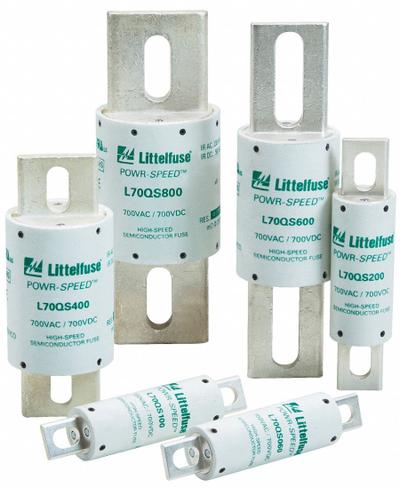

LITTELFUSE Semiconductor Fuse: L70QS Series, Very-Fast-Acting, 225 A, 700 V AC - Very-Fast-Acting Bolt-On Fuses
LITTELFUSEVery-Fast-Acting Bolt-On Fuses

LITTELFUSE Semiconductor Fuse: L70QS Series, Very-Fast-Acting, 225 A, 700 V AC

The LITTELFUSE L70QS Series Semiconductor Fuse (MPN L70QS225.X) is a very-fast-acting bolt-on fuse rated for 225 A at 700 V AC and 700 V DC. This AC/DC voltage-type fuse is designed for overcurrent protection in…

SKU 3G-OTH-25958

Brand
LITTELFUSE
Item
Semiconductor Fuse: L70QS Series, Very-Fast-Acting, 225 A, 700 V AC
Category
Very-Fast-Acting Bolt-On Fuses
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LITTELFUSE
Manufacturer Part Number
L70QS225.X
Series
L70QS
Type
Very-Fast-Acting, 225 A
AC
700 V
Voltage Type
AC/DC
DC DC Volt Rating
700 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LITTELFUSE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LITTELFUSE L70QS Series Semiconductor Fuse (MPN L70QS225.X) is a very-fast-acting bolt-on fuse rated for 225 A at 700 V AC and 700 V DC. This AC/DC voltage-type fuse is designed for overcurrent protection in industrial equipment.

Used in

Common applications for LITTELFUSE
Power electronics protection — Littelfuse PSR Series semiconductor fuses for IGBT and diode protection in variable frequency drives.
Solar photovoltaic systems — Littelfuse SPF Series fast-acting fuses for string overcurrent protection in PV arrays.
Automotive electrical systems — Littelfuse MIDI® 498 Series bolt-on fuses for battery and alternator protection in vehicles.
Industrial control panels — Littelfuse KLKD Series midget fuses for branch circuit protection in control transformers and relays.
Motor control centers — Littelfuse BLF Series fast-acting fuses for short-circuit protection of motor starters and contactors.
