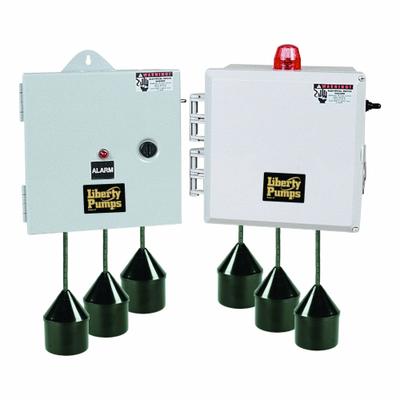

LIBERTY PUMPS Simplex Control Panel: Simplex, Single Phase, 120/208/240V AC, 15 to 20 A - Multi-Purpose Pump Control Panels
LIBERTY PUMPSMulti-Purpose Pump Control Panels

LIBERTY PUMPS Simplex Control Panel: Simplex, Single Phase, 120/208/240V AC, 15 to 20 A

The LIBERTY PUMPS Simplex Control Panel (SKU 856J15, MPN SXH24=3) is a multi-purpose pump control panel designed for single-phase operation at 120/208/240V AC with a current range of 15 to 20 A. It features a…

SKU 3G-OTH-94268

Brand
LIBERTY PUMPS
Item
Simplex Control Panel: Simplex, Single Phase, 120/208/240V AC, 15 to 20 A
Category
Multi-Purpose Pump Control Panels
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

LIBERTY PUMPS
Manufacturer Part Number
SXH24=3
Type
Single Phase, 15 to 20 A, Plastic, 4X
AC
120/208/240V
Current
15 to 20 A
Alert Output
Audio
Rated Voltage
120/208/240V AC
Dosing Schedule
Demand Dose
Intrinsic Safety
Not Specified Intrinsically Safe
Includes Reversing
Non-Reversing
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

LIBERTY PUMPS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LIBERTY PUMPS Simplex Control Panel (SKU 856J15, MPN SXH24=3) is a multi-purpose pump control panel designed for single-phase operation at 120/208/240V AC with a current range of 15 to 20 A. It features a non-reversing, demand-dose dosing schedule and includes an audio alert output. This panel is not specified as intrinsically safe and is housed in a plastic enclosure rated NEMA 4X.
