LEESON General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 3/4 hp - C-Face 3-Phase General Purpose AC Motors

LEESONC-Face 3-Phase General Purpose AC Motors

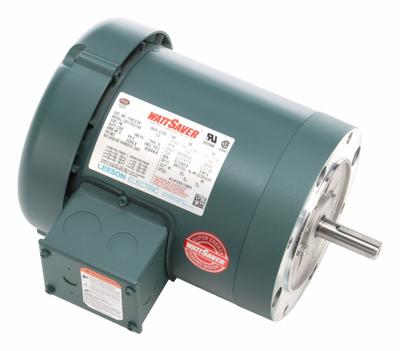

LEESON General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 3/4 hp

The LEESON General Purpose Motors: C-Face Mount (SKU 798KK3) is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Air-Over (TEAO) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for…

SKU 3G-OTH-58881

Brand

LEESON

Item

General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 3/4 hp

Category

C-Face 3-Phase General Purpose AC Motors

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

LEESON

Manufacturer Part Number

114213.00

Type

Totally Enclosed Air-Over, 3/4 hp

AC

208-230/460V

Motor Enclosure

TEAO

Nameplate RPM @ 60 Hz

1,725 RPM

Full Load Current @ 60 Hz

2.5-2.4/1.2 A

Nameplate Voltage @ 60 Hz

208-230/460V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

LEESON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The LEESON General Purpose Motors: C-Face Mount (SKU 798KK3) is a C-Face 3-Phase General Purpose AC Motor with a Totally Enclosed Air-Over (TEAO) enclosure. It operates at 1,725 RPM at 60 Hz and is rated for 208-230/460V AC with a full load current of 2.5-2.4/1.2 A. This 3/4 hp motor is designed for industrial applications requiring a C-face mounting configuration.

Used in

Common applications for LEESON

Conveyor systems — LEESON parallel shaft AC gearmotors (e.g., SKU 794AK9) for material handling at low speeds

Pump drives — LEESON Flex-In-1 3-phase AC motors (e.g., SKU 820HX5) for centrifugal pump applications

Fan and blower assemblies — LEESON general-purpose TEFC motors (e.g., SKU 801V99) for ventilation systems

Packaging machinery — LEESON right-angle DC gearmotors (e.g., SKU 794AY6) for compact indexing drives

Machine tool spindles — LEESON C-face ODP motors (e.g., SKU 53UF35) for lathe or milling machine power

Automated guided vehicles — LEESON permanent magnet DC gearmotors (e.g., SKU 794AT1) for drive wheels
