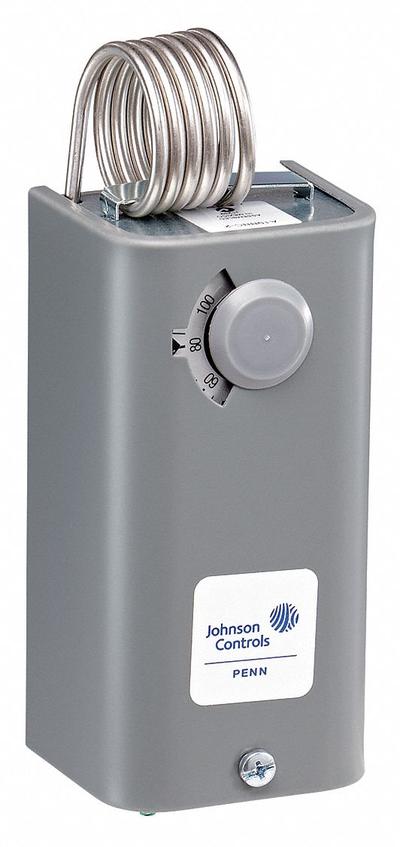

JOHNSON CONTROLS Line Volt Mechanical Tstat: Heat Only, Steel, 30° to 110°F, 1.7°C - Indoor Single-Stage Controls
JOHNSON CONTROLSIndoor Single-Stage Controls

JOHNSON CONTROLS Line Volt Mechanical Tstat: Heat Only, Steel, 30° to 110°F, 1.7°C

The JOHNSON CONTROLS A19BAC-3C is an indoor single-stage, heat-only line-voltage mechanical thermostat with a steel enclosure. It features a hydraulic air coil sensing element and an SPDT, open/close on rise switch…

SKU 3G-OTH-155545

Brand
JOHNSON CONTROLS
Item
Line Volt Mechanical Tstat: Heat Only, Steel, 30° to 110°F, 1.7°C
Category
Indoor Single-Stage Controls
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
A19BAC-3C
Type
Steel, 30° to 110°F, 1.7°C
AC
24 to 600V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS A19BAC-3C is an indoor single-stage, heat-only line-voltage mechanical thermostat with a steel enclosure. It features a hydraulic air coil sensing element and an SPDT, open/close on rise switch, operating over a 24 to 600V AC range with a temperature setpoint range of 30° to 110°F and a 1.7°C differential.

Used in

Common applications for JOHNSON CONTROLS
Industrial refrigeration — Johnson Controls P170SA-1C dual pressure control for compressor protection in ammonia or halocarbon systems
Chiller plant automation — Johnson Controls VA7810-HGA-2 electric globe valve actuator for modulating chilled water flow in VG7000 series valves
Pneumatic HVAC retrofit — Johnson Controls T-4002-302 conversion kit for upgrading existing Robertshaw thermostats in commercial buildings
Cooling tower water management — Johnson Controls V-4332-1007 pneumatically actuated diaphragm valve for 3-way diverting of water flow
Boiler fuel oil pressure monitoring — Johnson Controls P545NCB-25C electronic lube oil pressure control with alarm for burner management systems
Process pressure sensing — Johnson Controls P599AAPS105C pressure transmitter with IP67 rating for washdown zones in food and beverage plants

JOHNSON CONTROLS Products

3G Electric supplies JOHNSON CONTROLS indoor single-stage controls. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
