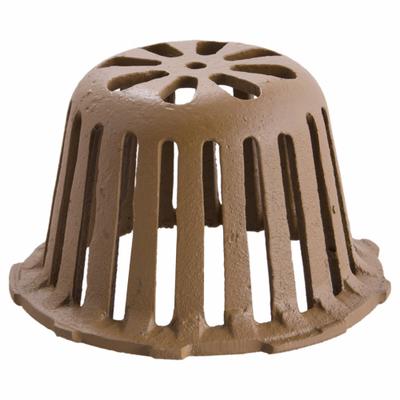

JAY R. SMITH MFG. CO Dome Strainer: 6 5/8 in Overall Dia, 4 in Overall Ht, Nickel Bronze - Domes & Cages for Roof Drains
JAY R. SMITH MFG. CODomes & Cages for Roof Drains

JAY R. SMITH MFG. CO Dome Strainer: 6 5/8 in Overall Dia, 4 in Overall Ht, Nickel Bronze

The JAY R. SMITH MFG. CO JAY R is a Domes & Cages for Roof Drains product, specifically a Dome Strainer with a flanged connection and a Duco-Coated finish. It has an overall diameter of 6 5/8 inches and an overall…

SKU 3G-OTH-425966

Brand
JAY R. SMITH MFG. CO
Item
Dome Strainer: 6 5/8 in Overall Dia, 4 in Overall Ht, Nickel Bronze
Category
Domes & Cages for Roof Drains
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JAY R. SMITH MFG. CO
Manufacturer Part Number
1330CID
Type
Nickel Bronze, Flanged
Finish
Duco-Coated
Overall Ht
4 in
Connection Type
Flanged
SMITH MFG. CO Dome Strainer
6 5/8 in Overall Dia
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JAY R. SMITH MFG. CO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JAY R. SMITH MFG. CO JAY R is a Domes & Cages for Roof Drains product, specifically a Dome Strainer with a flanged connection and a Duco-Coated finish. It has an overall diameter of 6 5/8 inches and an overall height of 4 inches, constructed from nickel bronze (MPN 1330CID).

Used in

Common applications for JAY R. SMITH MFG. CO
Commercial kitchen drainage — JAY R. SMITH MFG. CO floor drain bodies with trap primer connections (e.g., MPN 2005Y04BA-P050)
Industrial floor maintenance access — JAY R. SMITH MFG. CO floor cleanout covers (e.g., MPN 4020C04PB) for inspection points
Wall-mounted plumbing access — JAY R. SMITH MFG. CO wall cleanout covers (e.g., MPN 4710-07) in stainless steel for corrosion resistance
Grease interceptor sealing — JAY R. SMITH MFG. CO rubber gaskets (e.g., MPN 8760CGASK) for interceptor cover replacement
Light-duty floor drain grates — JAY R. SMITH MFG. CO Class A bronze grates (e.g., MPN A08PBG) for low-traffic areas
Trap seal maintenance — JAY R. SMITH MFG. CO cast bronze trap primers (e.g., MPN 2699-1LF) for automatic water replenishment
