Interpump PUMP WS82

The Interpump WS82 is an industrial pump delivering 21 L/min at 80 bar, powered by a 2.94 kW motor running at 1450 rpm. This 14 kg unit suits high-pressure applications requiring reliable flow and compact installation.

SKU 3G-ITP-03823

Also listed as: WS82000 · WS82 000

Brand
Interpump
Item
PUMP WS82
Category
Pumps & Compressors
UNSPSC
40151527 — Plunger pumps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineerMessage via Telegram
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Authorized Distributor
Direct from OEM
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Local availability & support

Delivery
Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment
Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Interpump
Flow Rate
21 L/min
Pressure
80 bar
Power
2.94 kW
Weight
14 kg
Power
4 HP
Flow (US)
5.55 GPM
Pressure
8 MPa
Pressure
1160 PSI
rotation rpm
1450
dimensions mm
298x235.5x176

Technical Documents

No technical documents available for this product.
Request documentation
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Interpump Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Interpump WS82 is an industrial pump delivering 21 L/min at 80 bar, powered by a 2.94 kW motor running at 1450 rpm. This 14 kg unit suits high-pressure applications requiring reliable flow and compact installation.

Frequently Asked Questions

Where can I buy the Interpump WS82 pump in your region?

3G Electric is an authorised distributor of Interpump industrial pumps. We deliver to your location with full customs and customs handling included. Contact us for pricing, availability, and lead times on the WS82-000.

What is the lead time for the Interpump WS82?

Lead time on request. 3G Electric sources the WS82 pump to order and arranges delivery to your region with logistics and import documentation managed. Contact our team for specific timeline and freight options.

Is the Interpump WS82 suitable for my high-pressure application?

The WS82 delivers 21 L/min at 80 bar (8 MPa) with a 2.94 kW motor at 1450 rpm. It weighs 14 kg and fits compact installations. Confirm your pressure and flow requirements—we can help match the WS82 or recommend alternatives.

Used in

Common applications for Interpump
Shipyard hull cleaning and surface prep — HT100 and W951 paired with dual-lance guns for dockyard service
Petrochemical heat-exchanger descaling — WS-series stainless pumps for neutral-pH cleaning chemistry
Outdoor HVAC condenser mist cooling — ZP180 pumps on rooftop chiller decks
Textile fibre-finishing — W170 and W270 for mist-jet application across drying lines
Municipal water treatment — W951 motor pumps for high-pressure disinfection chemical injection

Spare Parts & Repair Kits

Official WS82 parts list125 parts, 61 available in catalog

Official Parts List

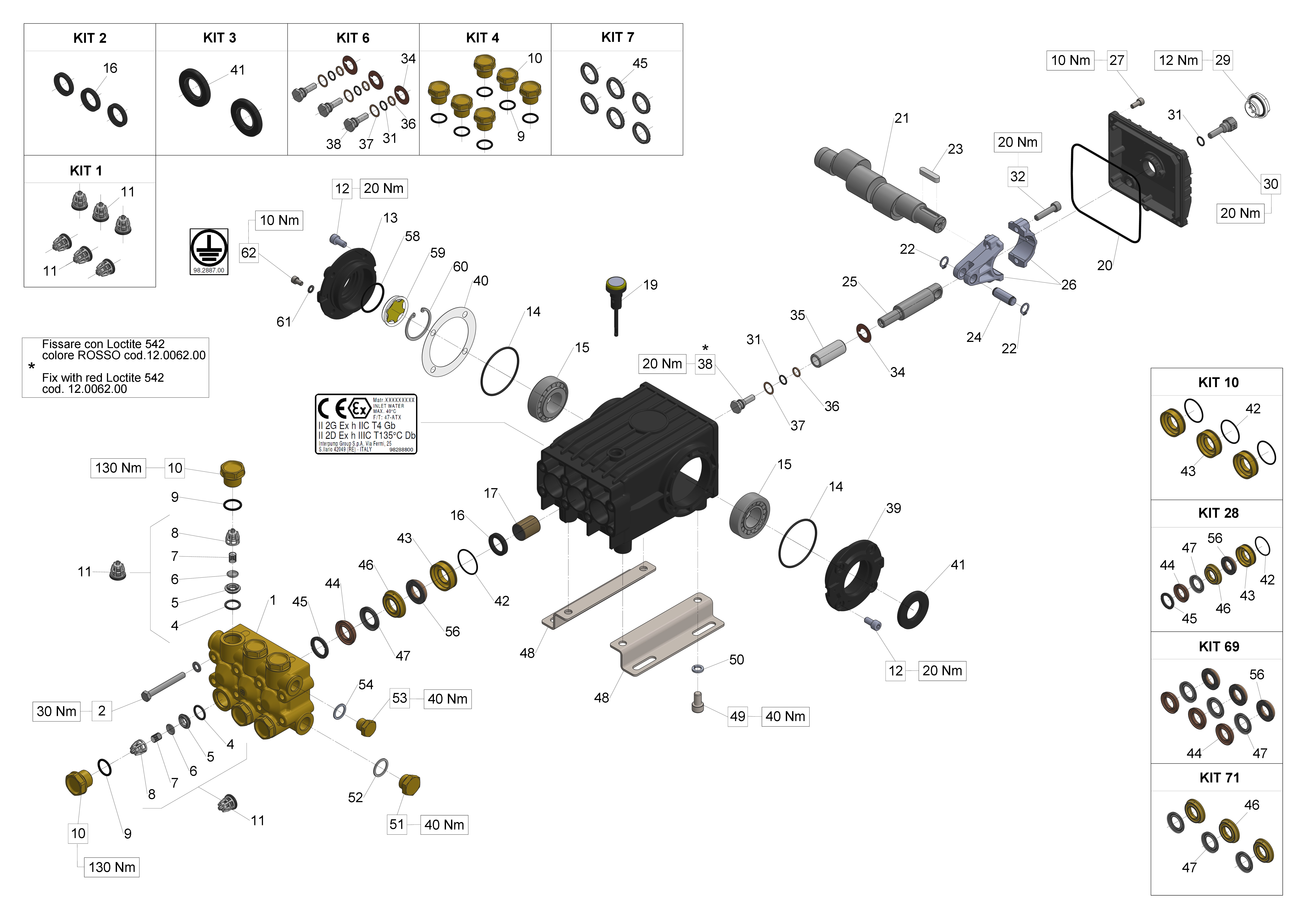

WS82 — Male shaft (key) exploded diagram

Repair Kits — Order These for Routine Maintenance

KIT1
KIT 1 INTAKE/DELIVERY VALVE
34000101×1Available
View
KIT2
KIT 2 OIL SEAL D. 22X32X5,5
34000201×1Available
View
KIT3
KIT 3 OIL SEAL D.30X55X7
34000301×1Available
View
KIT4
KIT 4 INTAKE/DEL. VALVE CAPS
34000401×1Available
View
KIT6
KIT 6 PISTON BOLT
34000601×1Available
View
KIT7
KIT 7 HEAD RING D.20
34000701×1Available
View
KIT10
KIT 10 PACKING RETAINER D.20
34001001×1Available
View
KIT28
KIT 28 COMPL.SEAL FOR PIST.D20
34002801×1Available
View
KIT71
KIT 71 INTERMEDIATE RING D.20
34007101×1Available
View

Individual Components

PosCodeDescriptionQty
1
MANIFOLD WS82
47120141×1Available
View
4
O-RING 17,12X2,62 (3068)
90384100×6Available
View
5
VALVE SEAT
36200366×6Available
View
6
VALVE PLATE
36200176×6Available
View
7
SPRING D. 9,4X14,8
94737600×6Available
View
8
VALVE CAGE
36200251×6Available
View
9
O-RING 20,29X2,62(3081)
90384700×6Available
View
10
CAP M24X2X16
98222000×6Available
View
11
VALVE ASSY.
36703201×6Available
View
12
SCREW M 8x16 UNI 5931
99303900×8Available
View
13
CLOSED SIDE COVER (47-66)
47151122×1Available
View
14
O-RING 67,95X2,62 (3268)
90391300×2Available
View
15
TAPER BEARING
91837500×2Available
View
16
OIL SEAL 22x32x5
90162500×3Available
View
17
BUSHING 22X25X30
90912600×3Available
View
19
OIL DIP-STICK G3/8X80
98210600×1Available
View
20
O-RING D.133.02X 2,62(3525)
90392200×1Available
View
21
CRANKSHAFT C.16 S.p.f. U.S.
47021735×1Available
View
22
CIRCLIP D.12 UNI 7435
90055700×6Available
View

Need multiple parts? Request a bundled quote

61 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote
Genuine manufacturer parts Expert technical support Worldwide shipping

Official WS82 parts listIndustrial Pumps (Series 47)

Recommended Spare Parts

Accessories

CONNECTING-ROD PIN D.13X35,5

97738000

PISTON SCREW

Spare Parts

PISTON SCREW

47219566

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

Accessories

HEX-HEAD SCREW M08X70 UNI5737 10.9 Fe/Zn5c1A+De

99320600

WASHER 14X28X0,5

Accessories

WASHER 14X28X0,5

96728600

Valves

VALVE PLATE

36200176

PLUG G3/8X13

Accessories

PLUG G3/8X13

98210000

Accessories

WASHER 21,5X27X1,5

96751400

Spare Parts

KIT 7 HEAD RING D.20

34000701

Spare Parts

O-RING 10,82X1,78 (2043)

90358500

PLUG G1/2X10

Accessories

PLUG G1/2X10

98217600

Accessories

KEY 8X7X35

91489000

Spare Parts

HEAD RING D. 20

47100051
