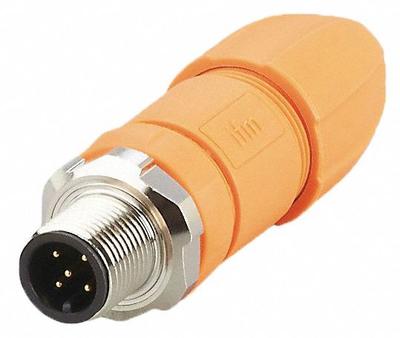

IFM Circular Connector: A Coded, 5 Pin, M12 Male Thread, IP65/IP67/IP68/IP69K - Field-Wireable Washdown-Rated M12 Circular Connectors
IFMField-Wireable Washdown-Rated M12 Circular Connectors

IFM Circular Connector: A Coded, 5 Pin, M12 Male Thread, IP65/IP67/IP68/IP69K

The IFM M12 Circular Connector (MPN EVC816) is an A-coded, field-wireable M12 circular connector with a pin-type connector body and a straight orientation. It features screw terminals, gold-plated contacts, a nylon…

SKU 3G-OTH-08704

Brand
IFM
Item
Circular Connector: A Coded, 5 Pin, M12 Male Thread, IP65/IP67/IP68/IP69K
Category
Field-Wireable Washdown-Rated M12 Circular Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IFM
Manufacturer Part Number
EVC816
Type
M12 Male Thread, IP65/IP67/IP68/IP69K, Screw Terminals
Pin
5
Coding
A
IP Rating
IP65
Application
Signal
Thread Size
M12
Wiring Type
Screw Terminals
Mounting Type
Front Mounting
Mounting Style
Male Thread
Voltage Rating
60V DC
Connection Type
Gold-Plated Contacts
Housing Material
Nylon
Connector Body Type
Pin
Connector Application
A-Coded for Signal, Low-Power, and Gigabit Data
Connector Orientation
Straight
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IFM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IFM M12 Circular Connector (MPN EVC816) is an A-coded, field-wireable M12 circular connector with a pin-type connector body and a straight orientation. It features screw terminals, gold-plated contacts, a nylon housing, and a male-thread front-mounting style, rated for 60V DC signal applications with an IP65 ingress protection rating.

Used in

Common applications for IFM
Automotive assembly — IFM inductive proximity sensors (e.g., IFS243) for detecting metal parts on conveyor lines
Packaging machinery — IFM photoelectric sensors (e.g., OGE282) for object presence detection in high-speed wrapping systems
Hydraulic systems — IFM pressure transmitters (e.g., PX3227) for monitoring fluid pressure in industrial presses
Material handling — IFM RFID tags (e.g., E80347) for tracking pallets and containers in warehouse logistics
Machine safety — IFM light curtains (e.g., OY009S) for finger protection on automated assembly stations
Field wiring — IFM M12 connectors (e.g., E18163) for quick sensor replacement in food processing equipment

IFM Products

3G Electric supplies IFM field-wireable washdown-rated m12 circular connectors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
