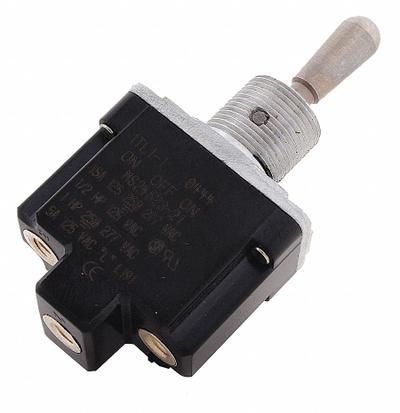

Honeywell Toggle Switch: 3 Position, 3 Connections, SPDT, Screw Terminals Connection - Panel-Mount Toggle Switches
HoneywellPanel-Mount Toggle Switches

Honeywell Toggle Switch: 3 Position, 3 Connections, SPDT, Screw Terminals Connection

The Honeywell TL Series 1TL1-5 is a panel-mount toggle switch with a 3-position momentary On/Off/On switch function configuration. It features SPDT circuitry, screw terminals, and an AC contact rating of 10 A at 250…

SKU 3G-OTH-33464

Brand
Honeywell
Item
Toggle Switch: 3 Position, 3 Connections, SPDT, Screw Terminals Connection
Category
Panel-Mount Toggle Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
1TL1-5
Series
TL
Type
SPDT, Screw Terminals Connection, TL Series
Horsepower
250 hp @ 250V AC
Connections
3
AC Contact Rating
10 A @ 250 V
Switch Function Configuration
Momentary On/Off/On
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell TL Series 1TL1-5 is a panel-mount toggle switch with a 3-position momentary On/Off/On switch function configuration. It features SPDT circuitry, screw terminals, and an AC contact rating of 10 A at 250 V, with a horsepower rating of 250 hp at 250 V AC.

Used in

Common applications for Honeywell
Commercial kitchen and inflight-catering steam boilers — RM7890 / RM7895 flame relays with UV detection
Food-processing ramp-and-dwell ovens — DBC2000E / DBC2100E controllers
Hotel and hospital boiler plants — VR8205 combination gas controls
Petrochemical tank-farm heating — V4xxx gas-valve bodies with ML7420 actuators
Retrofit swap-outs from legacy Fireye / Satronic — Honeywell replacement kits

Honeywell Products

3G Electric supplies Honeywell panel-mount toggle switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
