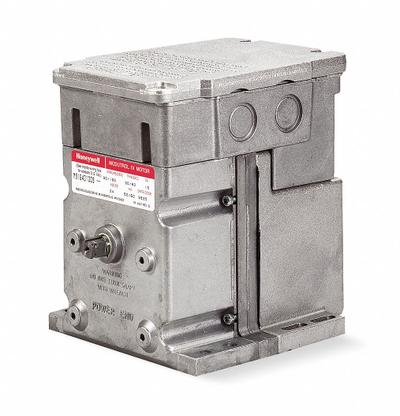

Honeywell Actuator: Dampers/Valves, Proportional, Non-Spring Return, 150 in-lb, 24V AC - Non-Fail-Safe Actuators
HoneywellNon-Fail-Safe Actuators

Honeywell Actuator: Dampers/Valves, Proportional, Non-Spring Return, 150 in-lb, 24V AC

The Honeywell M9184D1021/U is a non-fail-safe, proportional, non-spring return actuator for dampers and valves. It features a double-ended shaft with clockwise rotation, a stroke degree of 90 to 160°, and operates on…

SKU 3G-OTH-67532

Brand
Honeywell
Item
Actuator: Dampers/Valves, Proportional, Non-Spring Return, 150 in-lb, 24V AC
Category
Non-Fail-Safe Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
M9184D1021/U
Type
Proportional, Non-Spring Return, 150 in-lb, Hardwired, NEMA 3
AC
24V
Shaft Type
Double-Ended
Power Rating
18W
Input Voltage
24V AC
Stroke Degree
90 to 160°
Shaft Rotation
CW
Auxiliary Switch Included
No
Electrical Connection Type
Hardwired
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell M9184D1021/U is a non-fail-safe, proportional, non-spring return actuator for dampers and valves. It features a double-ended shaft with clockwise rotation, a stroke degree of 90 to 160°, and operates on 24V AC with an 18W power rating. This hardwired actuator is NEMA 3 rated and includes no auxiliary switch.
