HEDLAND Mechanical Flowmeter: Water-Based Fluid Meter, Scale, Variable Area, Inline - Inline Flowmeters for Water
HEDLANDInline Flowmeters for Water

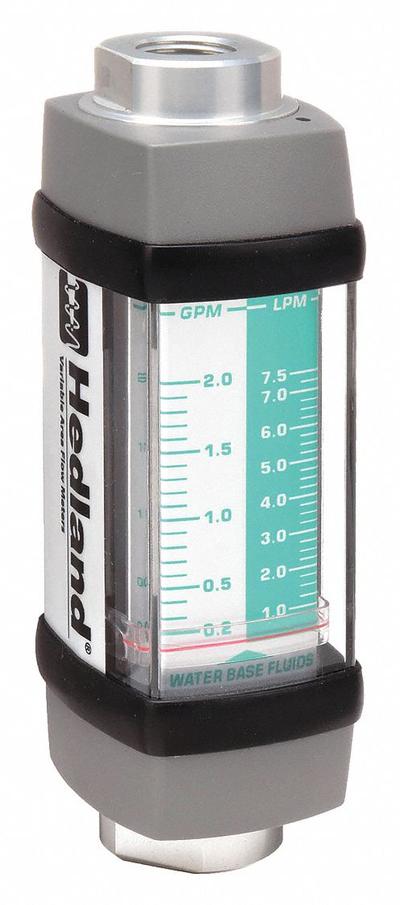

HEDLAND Mechanical Flowmeter: Water-Based Fluid Meter, Scale, Variable Area, Inline

The HEDLAND Mechanical Flowmeter is an inline variable-area flowmeter for water-based fluids, featuring a scale display and universal mounting orientation. It offers +/-2% accuracy, uses Viton seals and O-rings, and…

SKU 3G-OTH-91977

Brand
HEDLAND
Item
Mechanical Flowmeter: Water-Based Fluid Meter, Scale, Variable Area, Inline
Category
Inline Flowmeters for Water
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HEDLAND
Manufacturer Part Number
H613A-002
Type
Scale, Variable Area, Inline, Universal, NPTF
Accuracy
+/-2%
Display Type
Scale
Seal Material
Viton
O-Ring Material
Viton
Unit Of Measure
Gallons
Mounting Orientation
Universal
Includes Pressure Guage
No
Includes Flow Rate Adjustment Knob
No
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HEDLAND Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HEDLAND Mechanical Flowmeter is an inline variable-area flowmeter for water-based fluids, featuring a scale display and universal mounting orientation. It offers +/-2% accuracy, uses Viton seals and O-rings, and measures flow in gallons with NPTF connections (MPN H613A-002). This model does not include a flow rate adjustment knob or pressure gauge.

Used in

Common applications for HEDLAND
Hydraulic system flow monitoring — HEDLAND H620 series mechanical flow meters for water and oil
Cooling water circuit flow verification — HEDLAND H621 series inline flow meters with scale display
Compressed air flow measurement in pneumatic networks — HEDLAND variable-area flow meters
Lubrication oil flow monitoring in industrial machinery — HEDLAND H705B series with Viton seals
Process water flow indication in chemical plants — HEDLAND flow meters with remote output (H615 series)
Hydraulic test stand flow measurement — HEDLAND H628 series meters for gallons per minute readings

HEDLAND Products

3G Electric supplies HEDLAND inline flowmeters for water. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
