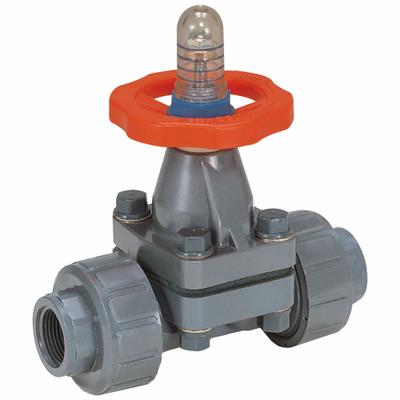

HAYWARD Diaphragm Valve: 1 1/4 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure (CWP) - CPVC Diaphragm Valves for Chemicals with Position Indicators
HAYWARDCPVC Diaphragm Valves for Chemicals with Position Indicators

HAYWARD Diaphragm Valve: 1 1/4 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure (CWP)

The HAYWARD Diaphragm Valve is a 1 1/4 in CPVC 2-way valve designed for chemical applications, featuring a position indicator for visual status confirmation. It has NPT x Socket connections, a maximum pressure rating…

SKU 3G-OTH-448640

Brand
HAYWARD
Item
Diaphragm Valve: 1 1/4 in, CPVC, 2-Way, NPT x Socket, 150 psi Max Pressure
Category
CPVC Diaphragm Valves for Chemicals with Position Indicators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HAYWARD
Manufacturer Part Number
DAB2012UFF
Type
CPVC, 2-Way, NPT x Socket, FPM
Special Features
Position Indicator
Diaphragm Material
FPM
Max Pressure (CWP)
150 psi
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HAYWARD Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HAYWARD Diaphragm Valve is a 1 1/4 in CPVC 2-way valve designed for chemical applications, featuring a position indicator for visual status confirmation. It has NPT x Socket connections, a maximum pressure rating of 150 psi (CWP), and an FPM diaphragm material (MPN DAB2012UFF). This valve is part of HAYWARD's CPVC diaphragm valve line for chemicals.
