HARTING Rectangular Connector Housing: Size 3 A, Cable to Cable Mount, Gray, Zinc Die-Cast - Cable-to-Cable Rectangular Connector Housings
HARTINGCable-to-Cable Rectangular Connector Housings

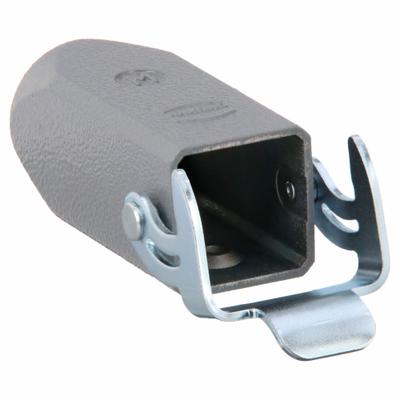

HARTING Rectangular Connector Housing: Size 3 A, Cable to Cable Mount, Gray, Zinc Die-Cast

The HARTING M20 Rectangular Connector Housing: Size 3 A is a cable-to-cable rectangular connector housing from HARTING. It features an IP44 rating, a single-entry design with M20 cable entry thread, and a single…

SKU 3G-OTH-18146

Brand
HARTING
Item
Rectangular Connector Housing: Size 3 A, Cable to Cable Mount, Gray, Zinc Die-Cast
Category
Cable-to-Cable Rectangular Connector Housings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HARTING
Manufacturer Part Number
19200031750
Type
Cable to Cable Mount, Gray, Zinc Die-Cast, Zinc
IP Rating
IP44
Entry Type
Single-Entry
Locking Type
Single Lever
Seal Material
NBR
Primary Material
Zinc
Size Designation
3 A
Cable Entry Thread Size
M20
Operating Temperature Range
-40 to 125 Degrees C
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HARTING Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HARTING M20 Rectangular Connector Housing: Size 3 A is a cable-to-cable rectangular connector housing from HARTING. It features an IP44 rating, a single-entry design with M20 cable entry thread, and a single lever locking mechanism. The housing is constructed from zinc die-cast with an NBR seal and operates within a temperature range of -40 to 125 Degrees C.

Used in

Common applications for HARTING
Factory automation — Han 16B rectangular connector kits (SKU 793WR6) for power and signal distribution in control cabinets
Robotics — M12 X-coded cordsets (SKU 793TU4) for Gigabit Ethernet communication between controllers and drives
Process control — Han 4A connectors (SKU 793WR4) for sensor/actuator connections in wet environments (IP65)
Data networks — RJ45 Cat6a shielded cordsets (SKU 793TM1) for high-speed data links in industrial Ethernet networks
Machine tools — M8 single-ended cordsets (SKU 793TY9) for proximity sensors and limit switches in flexing applications
Transportation — Bulkhead-mount Han 16B housings (SKU 793XX6) for through-panel connections in vehicle or rail equipment

HARTING Products

3G Electric supplies HARTING cable-to-cable rectangular connector housings. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
