HARTING Modular Rectangular Connector Kit: Signal, Han 16A, Han(R) 16 A, Contacts: 16+PE - 16 Amp Han Series Rectangular Connector Assemblies
HARTING16 Amp Han Series Rectangular Connector Assemblies

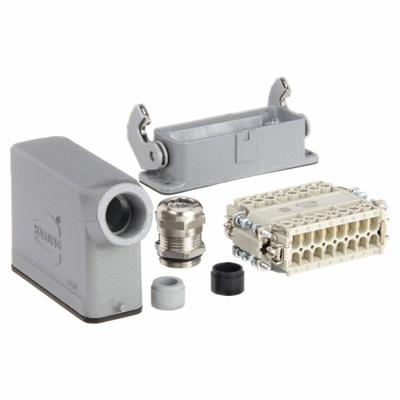

HARTING Modular Rectangular Connector Kit: Signal, Han 16A, Han(R) 16 A, Contacts: 16+PE

The HARTING Modular Rectangular Connector Kit: Signal is a 16 Amp Han Series rectangular connector assembly from the Han 16A series. This IP65-rated kit includes terminal screws and features a screw connection type…

SKU 3G-OTH-17504

Brand
HARTING
Item
Modular Rectangular Connector Kit: Signal, Han 16A, Han
Category
16 Amp Han Series Rectangular Connector Assemblies
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HARTING
Manufacturer Part Number
10200160000
Series
Han 16A
Type
Han 16A, Han(R) 16 A, Screw, 10200160000
Contacts
16+PE
IP Rating
IP65
Kit Includes
Terminal Screws
Connection Type
Screw
Number of Poles
16+PE
Wire Size - Maximum
14 AWG
Modular Connector Size Designation
Han(R) 16 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HARTING Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HARTING Modular Rectangular Connector Kit: Signal is a 16 Amp Han Series rectangular connector assembly from the Han 16A series. This IP65-rated kit includes terminal screws and features a screw connection type with 16+PE poles, accommodating wire sizes up to 14 AWG.

Used in

Common applications for HARTING
Factory automation — Han 16B rectangular connector kits (SKU 793WR6) for power and signal distribution in control cabinets
Robotics — M12 X-coded cordsets (SKU 793TU4) for Gigabit Ethernet communication between controllers and drives
Process control — Han 4A connectors (SKU 793WR4) for sensor/actuator connections in wet environments (IP65)
Data networks — RJ45 Cat6a shielded cordsets (SKU 793TM1) for high-speed data links in industrial Ethernet networks
Machine tools — M8 single-ended cordsets (SKU 793TY9) for proximity sensors and limit switches in flexing applications
Transportation — Bulkhead-mount Han 16B housings (SKU 793XX6) for through-panel connections in vehicle or rail equipment
