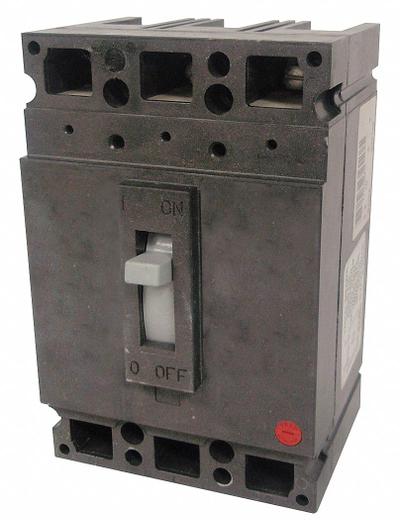

GE Molded Case Circuit Breaker: 20 A Amps, 18kA at 120/240/277/480V AC, Fixed - TED-, TEHD-Frame GE Molded Case Circuit Breakers
GETED-, TEHD-Frame GE Molded Case Circuit Breakers

GE Molded Case Circuit Breaker: 20 A Amps, 18kA at 120/240/277/480V AC, Fixed

The GE Molded Case Circuit Breaker (SKU 6CPT7) is a TED- and TEHD-frame molded case circuit breaker rated for 20 A. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 120/240/277/480V AC, and ABC…

SKU 3G-OTH-21427

Brand
GE
Item
Molded Case Circuit Breaker: 20 A Amps, 18kA at 120/240/277/480V AC, Fixed
Category
TED-, TEHD-Frame GE Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
TED136020WL
Series
TED
Type
18kA at 120/240/277/480V AC, Fixed, Line/Load Lug, ABC
Max. AIR Rating
18kA at 120/240/277/480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Line/Load Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE Molded Case Circuit Breaker (SKU 6CPT7) is a TED- and TEHD-frame molded case circuit breaker rated for 20 A. It features a fixed instantaneous trip, a maximum AIR rating of 18kA at 120/240/277/480V AC, and ABC phase connection with line/load lug terminals. This unit is identified by manufacturer part number TED136020WL.
