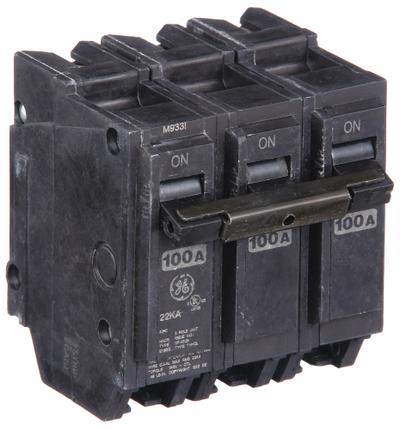

GE Miniature Circuit Breaker: THHQL, 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC - THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
GETHQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers

GE Miniature Circuit Breaker: THHQL, 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC

The GE THHQL is a three-phase, 100 A miniature circuit breaker from the THQP, THQL & THHQL Series, rated for 120/240V AC with a maximum AIR rating of 22kA at 120/240V AC. This plug-in breaker is designed for use with…

SKU 3G-OTH-22121

Brand
GE
Item
Miniature Circuit Breaker: THHQL, 100 A, 120/240V AC, Three Phase, 22kA at 120/240V AC
Category
THQP, THQL & THHQL Series, Plug-In GE Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

GE
Manufacturer Part Number
THHQL32100
Type
100 A, Three Phase, 22kA at 120/240V AC
AC
120/240V
Amps
100 A
Phase
Three
Poles
3
For Use With
Power Mark Gold Load Centers and AQ Lighting Panels
Max. AIR Rating
22kA at 120/240V AC
AC Voltage Rating
120/240V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

GE Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The GE THHQL is a three-phase, 100 A miniature circuit breaker from the THQP, THQL & THHQL Series, rated for 120/240V AC with a maximum AIR rating of 22kA at 120/240V AC. This plug-in breaker is designed for use with Power Mark Gold Load Centers and AQ Lighting Panels, as indicated by the manufacturer part number THHQL32100.
