GPL | Subgroup: Burner with electronic cam

Name: GPL | Subgroup: Burner with electronic cam
Brand: FBR
SKU: gas-p-550-m-ce-lx-tl-el-evo-1-cl-3-variant-gpl-subgroup-burner-with-electronic-cam-1

On RequestGas burners

Price on request — send us an enquiry for current pricing.

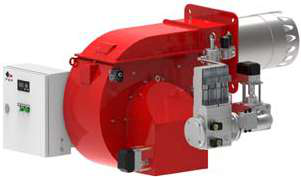

GAS P 550/M CE-LX TL EL EVO (1) Cl. 3 | Variant: GPL | Subgroup: Burner with electronic cam

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

mailQuick enquiry

Technical specifications

stage	2 stages sliding or modulating
fuel type	Gas low nox
nozzle mm	560
description	Burners for gas two stages progressive or modulating (PID fully modulating) if equipped with addition of optional modulation kit and probe low emissions in conformity with CE 676 class 3 (NOx < 80 mg/kWh).
power kw max	6395
power kw min	750
electrical supply	3

Frequently asked questions

Where can I buy the FBR GAS P 550/M gas burner worldwide?+

3G Electric is an authorized supplier of FBR gas burners. We source the GAS P 550/M and handle all logistics, customs clearance, and delivery worldwide. Contact us for lead times and a quote.

What is the power range of the FBR GAS P 550/M burner?+

The FBR GAS P 550/M delivers 750 kW minimum to 6395 kW maximum. It operates in two stages with sliding or modulating capability via optional PID modulation kit, suitable for progressive combustion systems.

Is the FBR GAS P 550/M compliant with emissions standards?+

Yes. The GAS P 550/M is CE-marked Class 3 (EN 676) with low-NOx fuel capability, achieving NOx emissions below 80 mg/kWh when equipped with the modulation probe and kit for full PID control.
