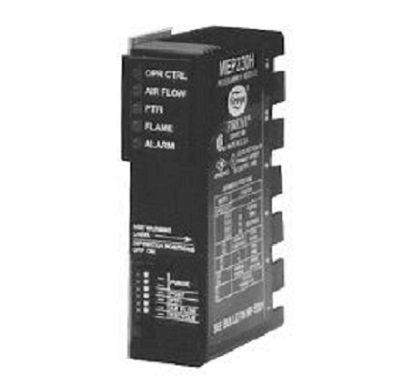

Fireye MicroM Programmer Modules. The Fireye MicroM Series is a compact, microprocessor-based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment, regardless of fuel type. The system offers significant advantages, including the elimination of discrete components traditionally used for timing functions, providing a more reliable and efficient solution for industrial applications. - Programmer & Amplifier Modules
Image not available
FireyeProgrammer & Amplifier Modules

Fireye MicroM Programmer Modules. The Fireye MicroM Series is a compact, microprocessor-based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment, regardless of fuel type. The system offers significant advantages, including the elimination of discrete components traditionally used for timing functions, providing a more reliable and efficient solution for industrial applications.

The Fireye MicroM Series is a compact, microprocessor-based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment…

SKU 3G-OTH-02819

Also listed as: MICROMPROGRAMMER · MICROM PROGRAMMER

Brand
Fireye
Item
MicroM Programmer Modules. The Fireye MicroM Series is a compact, microprocessor-based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment, regardless of fuel type. The system offers significant advantages, including the elimination of discrete components traditionally used for timing functions, providing a more reliable and efficient solution for industrial applications.
Category
Programmer & Amplifier Modules
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Fireye
Category
Programmer & Amplifier Modules
Approvals
cULus, FM Approved
MEP100 Series
MEP100, MEP100P, MEP101, MEP102, MEP103, MEP104, MEP105, MEP106, MEP107, MEP108, MEP109, MEP130, MEP141, MEP149.
MEP230 Series
MEP230, MEP230H, MEP235, MEP236, MEP237, MEP238, MEP290.
MEP300 Series
MEP300, MEP304, MEP335, MEP397.
MEP400 Series
MEP437.
MEP500 Series
MEP560, MEP561, MEP562, MEP564, MEP536, MEP537.
MEP600 Series
MEP696, MEP697.
Safety Features
The MEP696 and MEP697 programmer modules provide early spark termination followed by a pilot proving period, ensuring that spark generated by a maladjusted pilot and spark assembly is not mistakenly detected. The MEP437 provides similar safety features by terminating spark early and verifying pilot ignition to avoid the detection of unwanted sparks from a maladjusted pilot. For safe operation, the air flow switch connected between terminals 7 and 6 must close within 10 seconds after the start of a cycle.
Programmer Modules Design
All modules feature a plug-in design for easy installation. Modules in the MEP230, MEP300, MEP500, and MEP600 series include dipswitches to adjust parameters like purge timing, pilot trial for ignition (PTFI) timing, air flow proven, post-purge, and recycle or non-recycle operation. The MEP397 and MEP696/ MEP697 modules also offer additional features, such as a “check-run” switch for testing pilot size and stabilization.
Advanced MicroM Technology
The MicroM control system uses microprocessor-based technology to replace traditional discrete components. This provides enhanced reliability with features such as: Smart diagnostic LEDs for system status and lockout diagnostics. A smart reset function for multi-burner applications. Optional alpha-numeric display output (ED510). Serial communications via Modbus-RTU for seamless integration.
Flame Failure Response Time (FFRT)
FFRT is determined by the selected amplifier module, and real-time flame signal measurement is possible through test jacks on the amplifier module.
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Fireye Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Fireye MicroM Series is a compact, microprocessor-based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial heating and process equipment, regardless of fuel type. The system offers significant advantages, including the elimination of discrete components traditionally used for timing functions, providing a more reliable and efficient solution for industrial applications.

Used in

Common applications for Fireye
Power-plant auxiliary boiler — M-Series II controller with UV flame scanner, programmed for gas/oil switchover and flame-presence monitoring.
Refinery process heater — MP100E programmer module managing multi-stage ignition and flame-out shutdown interlocks on high-pressure burners.
Petrochemical facility thermal oxidizer — MAUV1T UV amplifier module processing scanner signal from high-temperature burner housings with immune-response filtering.
Large-scale industrial oven (metal treating) — M-Series II with remote reset capability and dual-fuel solenoid isolation for operator safety and burner protection.
Cogeneration plant fuel-gas burner — Fireye scanner and modular controller stack integrated into BMS with remote monitoring of flame status and controller fault codes.

Fireye Products

3G Electric supplies Fireye programmer & amplifier modules. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

You might also need

Burners & Combustion →Pumps & Compressors →Spare Parts →All Products →

More from Fireye

View all Fireye parts →

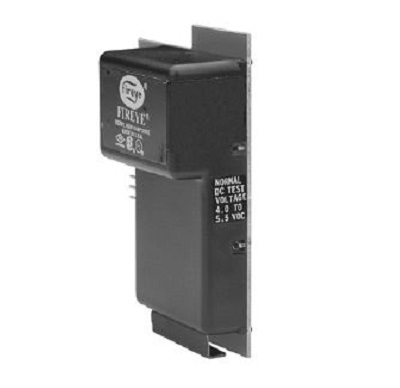

M-Series II Amplifier Modules. The Fireye MART1, MART3, MART1T, MAUV1, MAUV3, and MAUV1T are advanced Amplifier Modules designed for use with the Fireye Modular M-SERIES II Control. These versatile amplifier modules are essential for flame scanning, offering compatibility with Fireye’s standard ultraviolet (UV) scanners and flame rods to ensure accurate flame detection and system performance.
Fireye
M-Series II Amplifier Modules. The Fireye MART1, MART3, MART1T, MAUV1, MAUV3, and MAUV1T are advanced Amplifier Modules designed for use with the Fireye Modular M-SERIES II Control. These versatile amplifier modules are essential for flame scanning, offering compatibility with Fireye’s standard ultraviolet (UV) scanners and flame rods to ensure accurate flame detection and system performance.

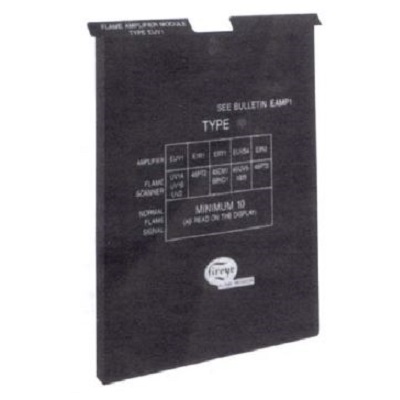

Flame-Monitor Amplifier Modules. The Fireye E1R1, EUV1, ERT1, and EUVS4 Amplifier Modules are essential components of the Fireye Flame-Monitor System, designed to enhance flame scanning and monitoring. These modules are compatible with various Fireye flame scanning devices, including AutoCheck infrared scanners, standard ultraviolet scanners, flame rods, and ultraviolet self-check scanners. Each module must be selected based on the type of scanner used and inserted into the appropriate Flame-Monitor chassis for optimal performance.
Fireye
Flame-Monitor Amplifier Modules. The Fireye E1R1, EUV1, ERT1, and EUVS4 Amplifier Modules are essential components of the Fireye Flame-Monitor System, designed to enhance flame scanning and monitoring. These modules are compatible with various Fireye flame scanning devices, including AutoCheck infrared scanners, standard ultraviolet scanners, flame rods, and ultraviolet self-check scanners. Each module must be selected based on the type of scanner used and inserted into the appropriate Flame-Monitor chassis for optimal performance.

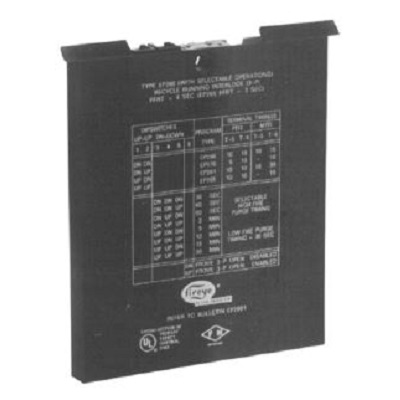

Flame-Monitor EP Programmer Modules. The Fireye programmer modules—including EP100S, EP200S, EP300S (extended purge), EP160, EP161 (extended MTFI), EP163 (programmable), EP170, EP174 (early spark termination), EP165, EP166 (pilot stabilization), EP177 (early spark termination and programmable operating parameters), EP260, EP265 (pilot stabilization), EP270 (early spark termination), EP380, EP381, EP382, EP383, and EP390—are designed for use with the Flame-Monitor Burner Management Control System.
Fireye
Flame-Monitor EP Programmer Modules. The Fireye programmer modules—including EP100S, EP200S, EP300S (extended purge), EP160, EP161 (extended MTFI), EP163 (programmable), EP170, EP174 (early spark termination), EP165, EP166 (pilot stabilization), EP177 (early spark termination and programmable operating parameters), EP260, EP265 (pilot stabilization), EP270 (early spark termination), EP380, EP381, EP382, EP383, and EP390—are designed for use with the Flame-Monitor Burner Management Control System.

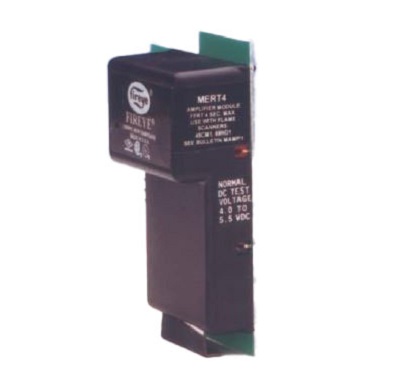

MicroM Amplifier Modules. The Fireye MEUV1, MEUV4, MEUVS1, MEUVS4, MERT1, MERT4, MEIR1, MEIR4, MECD1, and MECD4 amplifier modules are designed for use with the Fireye Modular MicroM control system. These modules enable reliable flame scanning using Fireye’s UV, self-check, IR, CdS scanners, and flame rods.
