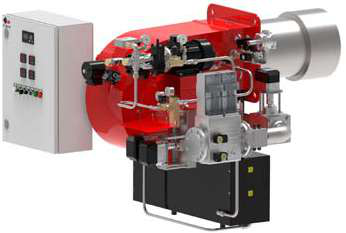

KN 250/M TL EL

Name: KN 250/M TL EL
Brand: FBR
SKU: fbr-kn_250_m_tl_el-kn-250-m-tl-el-heavy-oil-burners-1

On RequestHeavy oil burners

Price on request — send us an enquiry for current pricing.

KN 250/M TL EL

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

stage	2 stages sliding or modulating
fuel type	Dual fuel gas/heavy oil
nozzle mm	480
weight kg	182
power kw max	2907
power kw min	465
ip protection	IP40
noisiness dba	82-86
pump motor kw	1.1
electrical supply	3
power supply info	3~400V,1/N~230V-50Hz
current absorption a	17
nominal electric power w	29
max combustion air temp c	60

Frequently asked questions

Where can I buy the FBR KN 250/M TL EL burner in your region?+

3G Electric sources the FBR KN 250/M TL EL for delivery to your location. We handle all logistics, import clearance, and customs processing. Contact us for availability and lead time on request.

What is the power output range of the KN 250/M TL EL?+

The FBR KN 250/M TL EL delivers 465 kW minimum to 2907 kW maximum across 2 modulating stages. The 1.1 kW pump motor and 480 mm nozzle support stable combustion control in industrial heating applications.

What are the electrical requirements for this burner?+

The KN 250/M TL EL requires 3-phase 400V, 1/N 230V, 50 Hz supply with 17 A current absorption. It features IP40 protection and operates at 82–86 dBA, suitable for demanding industrial environments.
