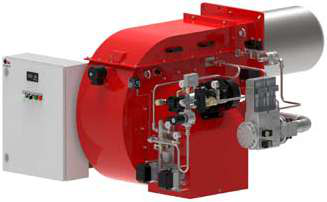

GAS/M CE DN125-S-F125

On RequestGas burners

Price on request — send us an enquiry for current pricing.

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

stage	Progressive and modulating
fuel type	Gas
nozzle mm	685
description	Dual fuel burners for gas and light-oil two stages progressive (hi-low flame) or modulating (PID fully modulating) if equipped with addition of optional modulation kit and probe.
fan motor w	18.5
power kw max	7558
ip protection	IP40
noisiness dba	89
pump motor kw	2.2
gas consumption	117/351-760
electrical supply	3
power supply info	3~400V, 1N~230V 50Hz
current absorption a	38
thermal power mcal h	1000/3000-6500
nominal electric power w	21
max combustion air temp c	60

Frequently asked questions

Where can I buy the FBR GAS/M CE DN125 burner in your region?+

Order from 3G Electric. We supply industrial burners with delivery to your location. Lead time on request. We handle all customs import documentation and USD invoicing for seamless procurement across your region.

What is the thermal output of the FBR GAS/M CE DN125?+

The FBR GAS/M CE DN125 delivers up to 6500 Mcal/h with progressive and modulating combustion control. IP40 protection rated. 18.5 kW fan motor and 2.2 kW pump motor. Operates as a dual-fuel unit for gas and light-oil applications.

Is the FBR GAS/M CE DN125 suitable for modulating control?+

Yes. Standard configuration is progressive (hi-low flame) control. Add the optional modulation kit and probe for full PID modulating operation. Operates at 89 dB noise level in industrial heating systems, boilers, and furnaces.
