EATON Circuit Breaker: 100 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs - Power Defense Molded Case Circuit Breakers
EATONPower Defense Molded Case Circuit Breakers

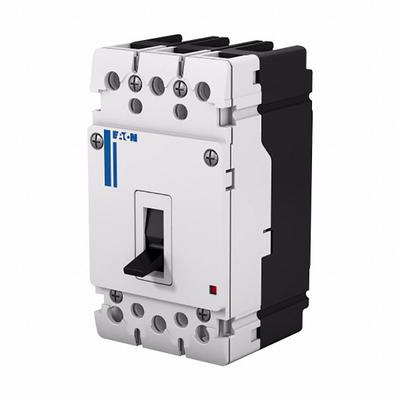

EATON Circuit Breaker: 100 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs

The EATON Power Defense Molded Case Circuit Breaker (SKU 61HT51, MPN PDG13F0100TFFJ) is a 100 A rated device with a 125A/Frame 1 frame size. It features a maximum AIR rating of 25 kA at 480V AC, a fixed instantaneous…

SKU 3G-OTH-24107

Brand
EATON
Item
Circuit Breaker: 100 A Amps, 25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs
Category
Power Defense Molded Case Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
PDG13F0100TFFJ
Type
25 kA at 480V AC, Fixed, ABC, Std Line and Load Lugs, Std
Frame Size
125A/Frame 1
Max. AIR Rating
25 kA at 480V AC
Phase Connection
ABC
Instantaneous Trip
Fixed
Terminal Connection
Standard Line and Load Lugs
View Full Spec Sheet
