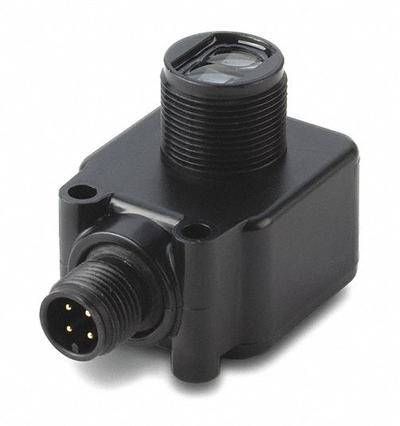

EATON Photoelectric Sensor: M18 Threaded, Built-in Connector, 4 - Pin Micro - Rectangular Sensors with Built-in Connectors
EATONRectangular Sensors with Built-in Connectors

EATON Photoelectric Sensor: M18 Threaded, Built-in Connector, 4 - Pin Micro

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a built-in connector and an M18 threaded nominal diameter. It features a resin body, a dual key micro connector, and supports AC supply…

SKU 3G-OTH-36071

Brand
EATON
Item
Photoelectric Sensor: M18 Threaded, Built-in Connector, 4 - Pin Micro
Category
Rectangular Sensors with Built-in Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
E65-SMPP050-GLD
Series
E65 SM
Type
Built-in Connector, 18-264V AC & 18-50V DC
Pin Micro
4 -
Body Material
Resin
Electrical Connection
Dual Key Micro Connector
NEMA Enclosure Rating
1
Nominal Sensor Diameter
M18 Threaded
AC Supply Voltage Rating
18-264V AC
DC Supply Voltage Rating
18-50V DC
Electrical Installation Type
Direct Connector
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a built-in connector and an M18 threaded nominal diameter. It features a resin body, a dual key micro connector, and supports AC supply voltages of 18-264V AC and DC supply voltages of 18-50V DC. The sensor has a NEMA enclosure rating of 1 and is designed for direct connector electrical installation.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON rectangular sensors with built-in connectors. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
