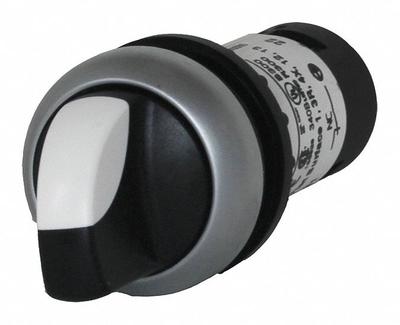

EATON Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 2NO - Selector Switches
EATONSelector Switches

EATON Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 2NO

The EATON C22-WRK-K20 is a 22 mm panel-mounting selector switch from the C22 series, featuring a short-handled knob with a maintained/maintained action and two On positions. It offers an AC contact rating of 1.5 A at…

SKU 3G-OTH-37284

Brand
EATON
Item
Selector Switch: 22 mm Panel Mounting Size, 2 Positions, Short Lever, 2NO
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
C22-WRK-K20
Series
C22
Type
Short Lever, 2NO, Metallic
Cam
No Cam Required
Action
Maintained/Maintained
Positions
2
AC Contact Rating
1.5 A @ 230 V
DC Contact Rating
3 A @ 24 V
Operator Head Type
Short-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polycarbonate
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
On
Switch Function @ 3rd Position
No Third Position
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON C22-WRK-K20 is a 22 mm panel-mounting selector switch from the C22 series, featuring a short-handled knob with a maintained/maintained action and two On positions. It offers an AC contact rating of 1.5 A at 230 V and a DC contact rating of 3 A at 24 V, with a metallic bezel and a non-illuminated polycarbonate operator head. This switch is not rated for hazardous locations and requires no cam.
